Compact Camera with CS Mount HD - 3G-SDI/HDMI

Compact Camera with CS Lens Mount - 3G/HD-SDI & HDMI

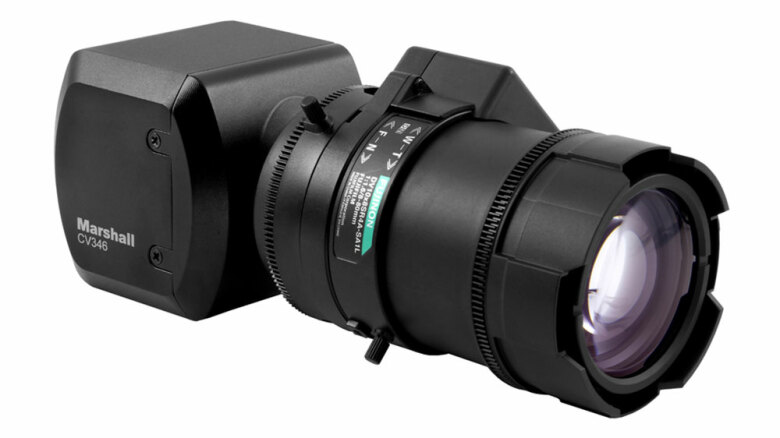

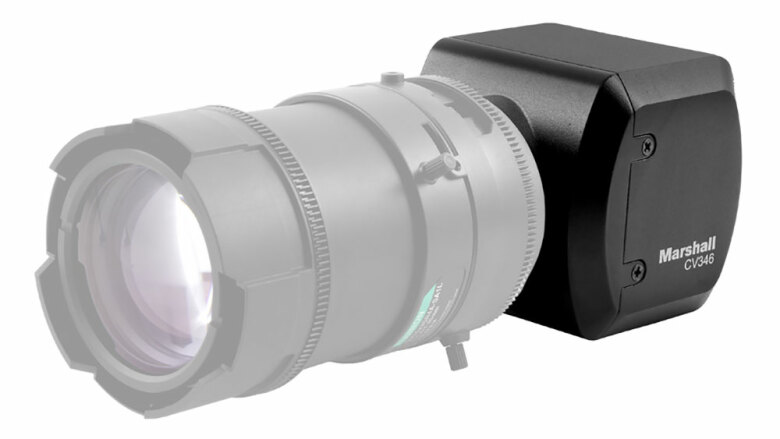

The Marshall CV346 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor. Built around a next generation 2.5-Megapixel, 1/2.8-inch sensor, the CV346 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.

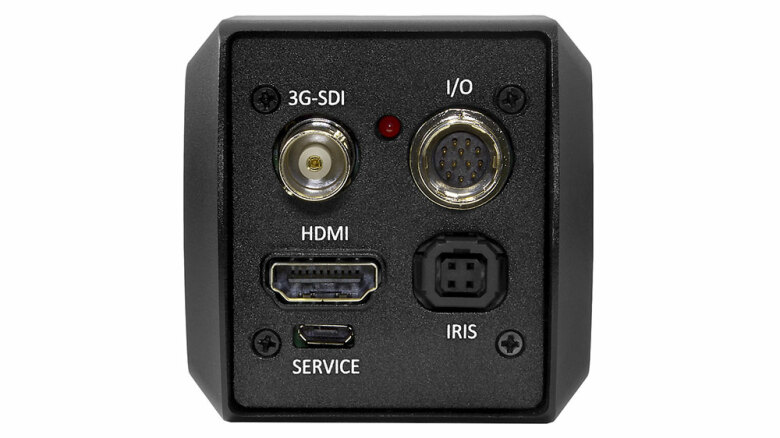

The CV346 utilises a full-sized HDMI and BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on HDMI & 3G/HDSDI outputs). The CV346’s CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.

The CV346 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma and more.

Features
• 2.5 Megapixel 1/2.8" CMOS Sensor
• CS Mount with Auto Iris Function
• Broadcast-Friendly Frame Rates
• 3G/HD-SDI & HDMI Output

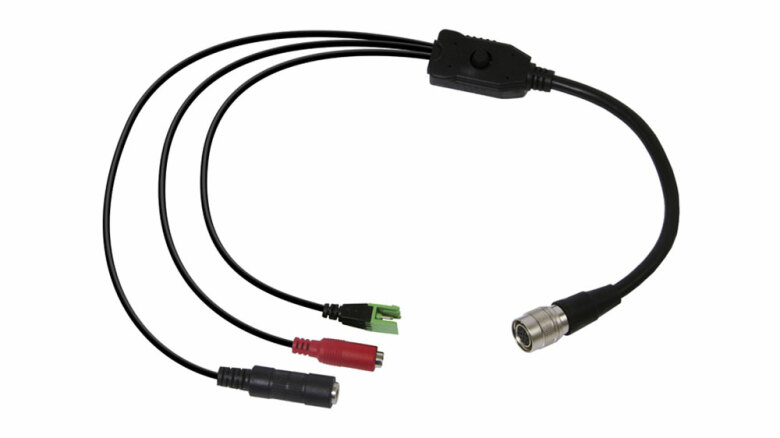

• Breakout Cable Incorporates OSD Joystick
• 3.5mm Audio Input Built Into Breakout Cable
• Dual-Region – 1920x1080P & 1280x720P 60/59.94/50/30/29.97/25/24/23.98 , 1920x1080i 60/59.94/50
