Creamsource Vortex4 325W Colour Including Yoke

Partno: CS-K-CSV-4-ESS
Stock status: In Stock
SEK 32788   Excl. VAT (moms)
SEK 40985   Incl. VAT (moms)

Description

Creamsource Vortex4 325W Colour Including Yoke

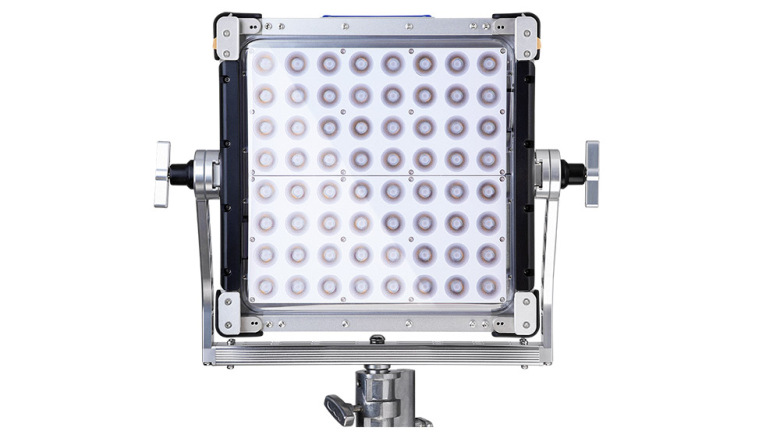

The Vortex4 is a 1x1 RGBW all-in-one lighting system with integrated power supply and antennas. A punchy 20° beam gives a reading of 7,300lux @3m. This fixture has a CCT range from 2200K to 15000K and four independently controllable zones. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.
Effects, colour gels and our latest ‘FrameSync’ technology are built into the latest CreamOS architecture. Like it’s big brother, Vortex4 has no problem with bad weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.

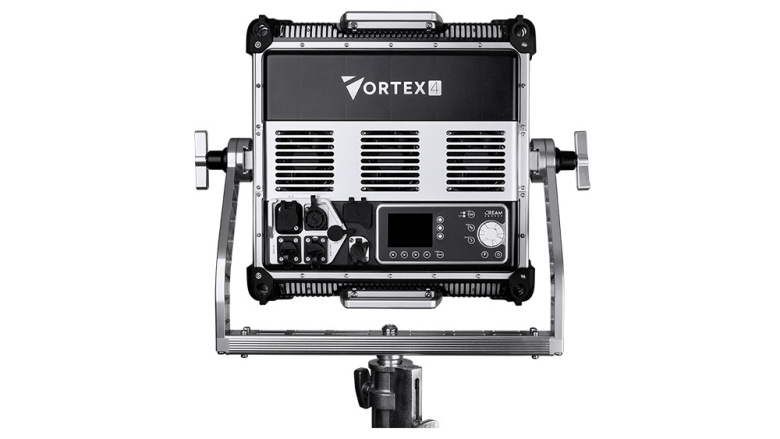

Vortex4 adopts ‘Vortex Connect’ including LumenRadio TimoTwo built in, Ethernet with sACN, Bluetooth, Wifi, 5pin DMX, USB type A and Creamsource Accessory port, enabling a  plethora of control possibilities and future protocol support. New rigging points have been built into Vortex4 to accommodate rapid rigging of large arrays of units. Battery powered operation is also supported with a dedicated 48V DC input.

The Vortex4 is built and designed to withstand all weather conditions and is rated IP65. The Vortex4 is an ultraquiet fan-based system with optimum thermal efficiency. The fan system and heatsink placement allows for core electronics to be sealed and isolated. This ensures the ultimate safety and piece of mid when operating in volatile conditions or heavy effects environments.
Only premium waterproof connectors have been used in this series allowing all functions to be used in all weather conditions.

The Vortex4 is a 325W hard light with a beam angle of 20°. This 1x1 fixture gives the meter a workout, reading 7,300 lux at 3m / 9.8ft.
Similar to the output of a 575W HMI equivalent.
The versatility of a narrow beam source is obvious. Both the artistic and technical needs to diffuse or shape the beam, create the flexibility needed to perform a range of tasks and provide a number of different lighting aesthetics.

The Vortex Series has been built with new software architecture at its base, supporting a myriad of new features, protocols and connectivity mediums making the future evolution of CreamOS very exciting.
Such evolution has come to fruition with a number of recent innovations in the space including the all-new FrameSync and like the Vortex 8, multizone control is also available with 4 zones on the Vortex4.
All of these evolving functions are wrapped into a new user interface, enhancing the user experience.

Interfacing with 3rd party equipment, apps and the internet is possible across the Vortex series.
LumenRadio TimoTwo, Ethernet, Bluetooth, 5pin DMX, Wifi, USB typeA and Creamsource Accessory port are all available on the antennaless Vortex4 offering endless potential communication and remote control.

Go to www.creamsource.com for full specs and more information.



Included items

  • Included items:
    Vortex4 325W Colour
    Yoke
    Power cable
    Flat diffuser

Specification

  • Specification:
    Material: Aluminium/Technopolymer
    Light Source: RGBW LED
    Colour Range: CCT (2200 - 15000K), PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS
    CRI: Typical 95
    TLCI: Typical 95
    Beam Angle, SPOT Lens: 20° (Half Peak Angle)
    Tilt Angle: 360°
    Photometrics 3200K:
    48,500 lx / 4,507 fc @ 1m / 3.3ft
    15,000 lx / 1,394 fc @ 2m / 6.6ft
    6,700 lx / 623 fc @ 3m / 9.8ft
    3,900 lx / 362 fc @ 4m / 13.1ft
    2,500 lx / 232 fc @ 5m / 16.4 ft
    1,700 lx / 158 fc @ 6m / 19.7 ft
    Photometrics 5600K:
    53,100 lx / 4,935 fc @ 1m / 3.3ft
    16,300 lx / 1,515 fc @ 2m / 6.6ft
    7,300 lx / 678 fc @ 3m / 9.8ft
    4,200 lx / 390 fc @ 4m / 13.1ft
    2,700 lx / 251 fc @ 5m / 16.4 ft
    1,900 lx / 177 fc @ 6m / 19.7 ft
    Mounting: 8x 3/8” Threaded Insert Rigging Points

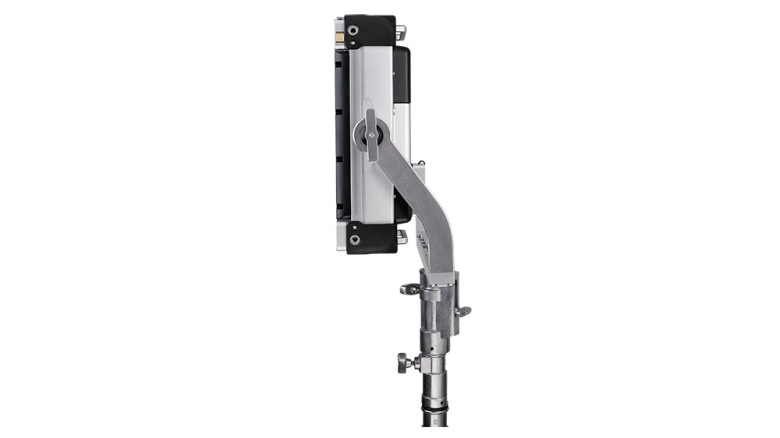

    Yoke: Removable quick release yoke
    Filter Rails: 2 Filter Rails for Secondary Lenses, Diffusers, Accessories
    User interface: High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display
    Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
    High Speed Capability: Over 5000fps Flicker Free in High Speed Mode
    Synchronization: Sync Input for Triggering and Syncing to Camera Shutter
    Max Ambient Temperature: 40°C
    Cooling: Low noise variable speed fans
    Estimated LED Lifespan: 50,000hrs (L70)
    Input (AC): 100-240V AC, 50/60Hz, Max 3.3A. Neutrik PowerConTrue connector
    Input (DC): 48V DC, Max 6.9A, Can run at 100% brightness on DC input
    Protection Class: IP65
    Weight: 9.76kg / 21.5lb (Excluding Yoke) 1.64kg / 3.6lb (Yoke weight)
    Dimensions:
    380 x 380 x 121mm / 15” x 15” x 4.8” (Excluding Yoke)
    525 x 570 x 179.25mm / 20.7” x 22.4” x 7.1” (Including Yoke)
    Warranty: 3 Years on Fixtures, 12 Months on Accessories (5 Years registered)
    Certifications: Pending CE, ETL and FCC
    Control: On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated Lumen radio Timo Two with Bluetooth, Ethernet, USB Type A
    Includes: Vortex4 325W Colour, Yoke, Power cable, Flat diffuser
