Description

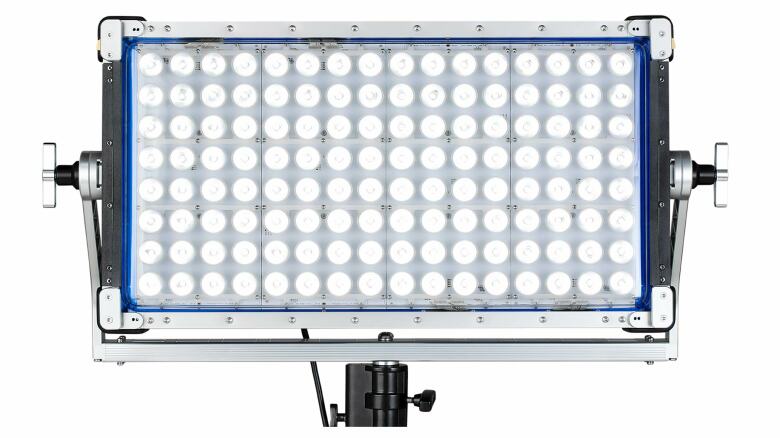

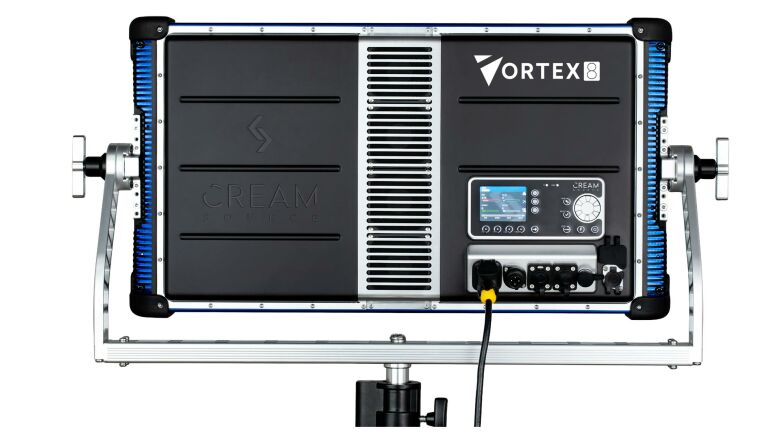

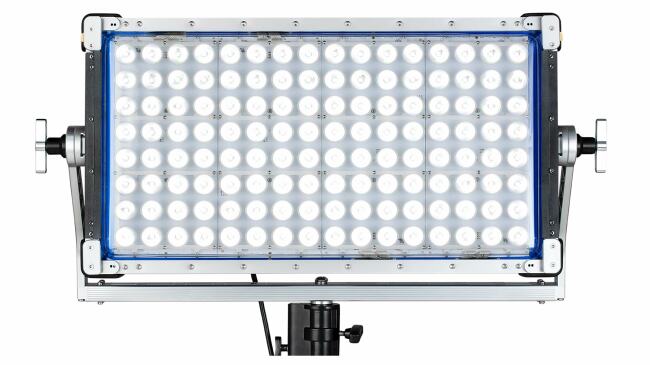

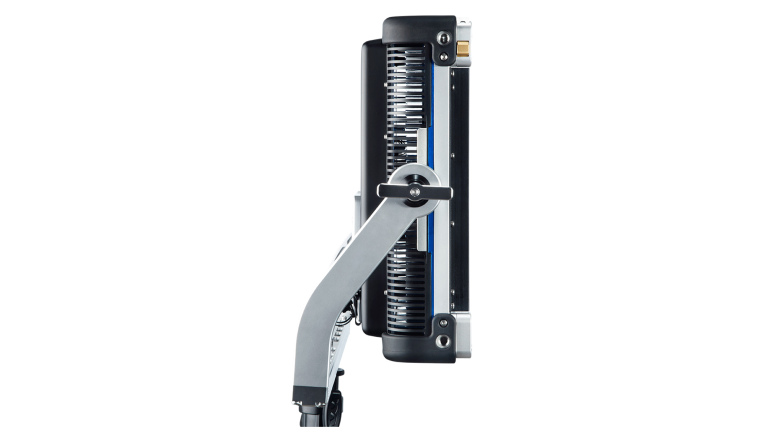

Creamsource Vortex8 650W Colour Including Yoke
The Vortex8 is a versatile 2x1 RGBW system with a CCT range from 2200K to 15000K that can be used as a hard punch light to bounce
or push through diffusion, or as a creamy soft light with the Creamsource Dome or DoPchoice Snapbag. Effects and colour gels are
built into the latest CreamOS architecture in addition to a range of new features wrapped into an intuitive user interface. Unpredictable
weather and messy effects machines are no longer a worry for the lighting department where the Vortex is in place. The Vortex8 is IP65
water resistant and sealed for the ultimate security and efficiency. Rain, snow and dust wont hold the Vortex8 back.
Connectivity to the Vortex8 is well up to date with LumenRadio TimoTwo built in, Ethernet, Bluetooth, 5pin DMX, Wifi, USB type A and
Creamsource Accessory port. Interaction between Vortex8 and various third party instruments and protocols are endless opening
various wired and wireless control options. We are geeks for high quality and precision engineering, and loads of our geekiness has
spilled into the Vortex Series. Built with elegance and durability in mind the aluminium machining and technopolymer infusion has
allowed us to achieve our goals. Containment and simplicity is also achieved in this design, with the PSU as well as the antennas
integrated into the head.
For more information please visit the Creamsource product page.
Included items
- Included items:
Vortex8 650W Colour
Yoke
Power cable
Flat diffuser
Specification
- Specification:
Material: Aluminium/Technopolymer
Light Source: RGBW LED
Colour Range: CCT: 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS
CRI: Typical 95
TLCI: Typical 95
Beam Angle, SPOT Lens 20°: (Half Peak Angle)
Tilt Angle: 360°
Photometrics:
3200K:
68,200 lx / 6,340 fc @ 1m / 3.3ft
26,200 lx / 2,430 fc @ 2m / 6.6ft
12,700 lx / 1,180 fc @ 3m / 9.8ft
7,400 lx / 690 fc @ 4m / 13.1ft
4,800 lx / 450 fc @ 5m / 19.4 ft
3,400 lx / 320 fc @ 6m / 19.7 ft
5600K:
73,500 lx / 6,830 fc @ 1m / 3.3ft
28,600 lx / 2,660 fc @ 2m / 6.6ft
13,900 lx / 1,290 fc @ 3m / 9.8ft
8,000 lx / 740 fc @ 4m / 13.1ft
5,200 lx / 480 fc @ 5m / 19.4 ft
3,700 lx / 340 fc @ 6m / 19.7 ft
Mounting: 8x 3/8” Threaded Insert Rigging Points
Yoke: Removable quick release yoke
Filter Rails: 2 Filter Rails for Secondary Lenses, Diffusers, Accessories
User interface:
Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
High Speed Capability: Over 5000fps Flicker Free in High Speed Mode
Synchronization: Sync Input for Triggering and Syncing to Camera Shutter
Max Ambient Temperature: 40°C
Cooling: Low noise variable speed fans
Estimated LED Lifespan: 50,000hrs (L70)
Input (AC): 100-240V AC, 50/60Hz, Max 8A. Neutrik PowerConTrue connector
Input (DC): 48V DC, Max 13A, Can run at 100% brightness on DC input
Protection Class: IP65
Weight: 13.7kg / 30lb (Excluding Yoke)
1.98kg / 4.4lb (Yoke weight)
Dimensions: 690 x 380 x 121mm / 27.2” x 15” x 4.8” (Excluding Yoke)
831 x 551 x 164mm / 32.7” x 21.7” x 6.4” (Including Yoke)
Warranty: 3 Years on Fixtures, 12 Months on Accessories (5 Years registered)
Certifications: Pending: CE, ETL and FCC
Control: On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control
Accessory, Integrated Lumen radio Timo Two with Bluetooth, Ethernet, USB Type A
Includes: Vortex8 650W Colour, Yoke, Power cable, Flat diffuser
