Description

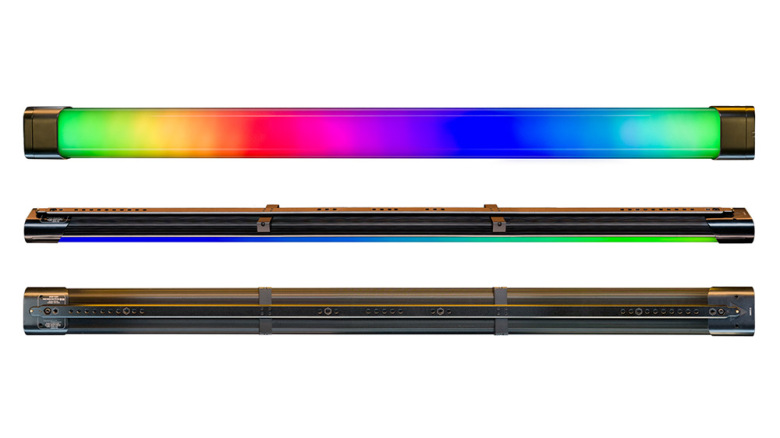

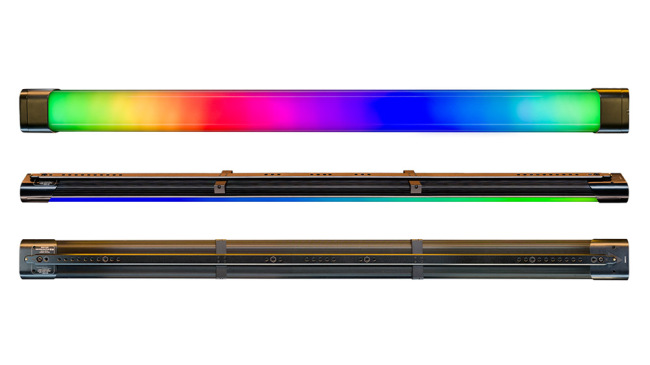

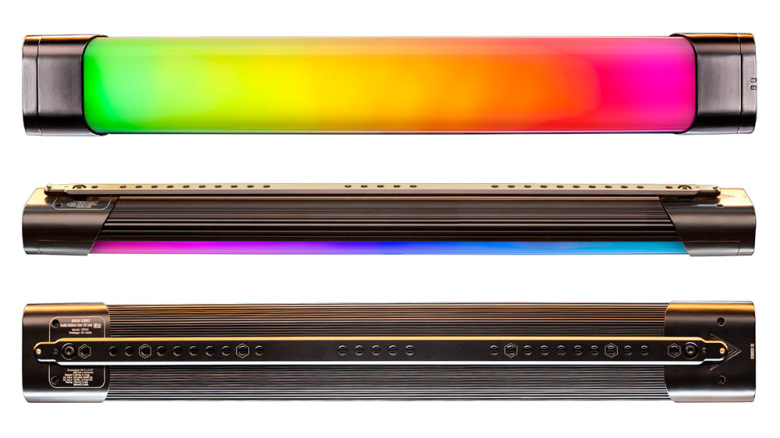

Double Rainbow Linear LED Light
Creative agility ultimate control
The Double Rainbow (RR) Linear LED, with its two rows of high fidelity RGBX pixels, creates realistic lighting with vibrant saturated colors and intense white light. A unique shape provides a powerful light source using little space. Wireless and wired data connections mean no data boxes, receivers or transmitters.
Integrated Ossium Mounting System (OMS) rigging adapts to everything.
AC/DC inputs for continuous power whenever and wherever.
Features & Benefits
• Double Wide Design – The two row design of the Double Rainbow makes for a uniquely beautiful light that packs a punch. Ready for work as a source light, its shape produces flexibility like no other.
• Color Control – An industry-first perceptually distributed color palette created by our advanced color science research uses the Psychophysical construct of Just Noticeable Difference to deliver instinctual lighting control. In addition, Spectral Control, a new technical and creative tool, enables output to be desaturated for color-matching 3rd party fixtures or creative intent.
• Color Science – The RGBX Spectral Science Color Engine produces spectrally based color calibration for more than one billion available colors.
• Pixelation – With more than twice the pixels of traditional tube fixtures, the double-height RR produces more realistic animation to take your lighting effects to a whole new realm.

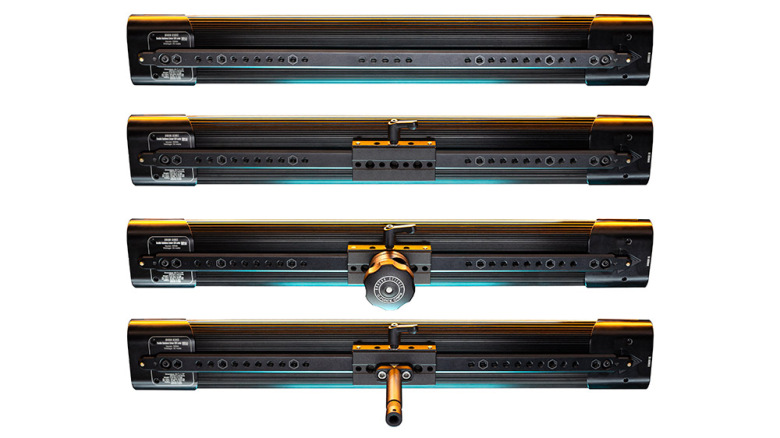

• Mounting – Ossium Mounting System (OMS) integrates seamlessly and efficiently with industry standard hardware for safer, faster rigging with greater precision and style.
• Connectivity – The Double Rainbow is equipped with both an Ethernet Node and a Network Switch creating a whole new universe of possibilities.
Included items
- Included items:
1 - RR Double Rainbow Light
1 - Ossium Slider
1 - Ossium Baby Pin
2 - Q-Boot Bumpers
1 - 8 AC Power Cord
1 - 8 DC Power Cord
Quick Start Guide
Shortcut Guide
Specification
- Specification:
Luminous Output: 2’: 2,376 lumens / 4’: 4,614 lumens
Wattage: 2’: 50W / 4’: 100W
Stock Lens System: 180º Diffused Lens
AC Input: TRUE1 Connector
AC Voltage: 120-240V
DC Input: 4-Pin Push-Pull to PTAP Connector
DC Voltage: 12-30V

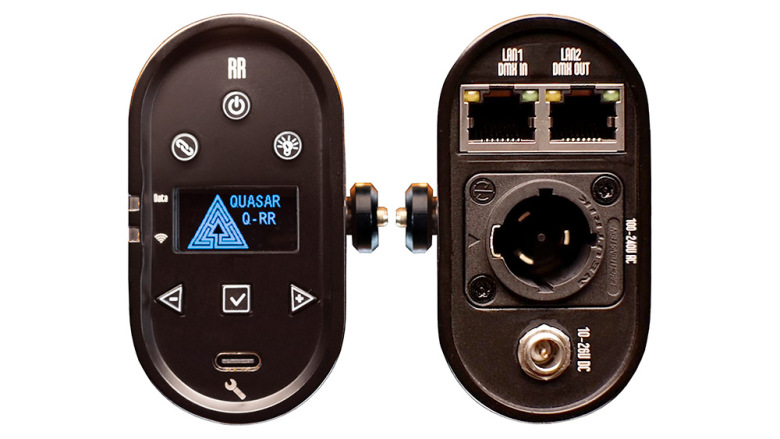

Control Interface: OnScreen OLED with Manual Controls
Wired Control Protocols: DMX, Art-Net, sACN
Wireless Control: Wireless DMX (CRMX), Bluetooth, WiFi
Dimming: 0-100% Continuous Onboard, 3 Output Levels
Color System: RGBX Spectral Science Color Engine
CCT Range: 1,750K - 10,000K
Maximum Spectral Fidelity: 2250K: SSI[P2250] 91 / 3200K: SSI[P3200] 83 / 5600K: SSI[CIE D5600] 74
Color Rendition: 2000K TM-30 Rf: 94 / 3200K TM-30 Rf: 93 / 5600K TM-30 Rf: 94
IP Rating: IP40
Certifications: ETL, cETL, FCC
Mounting: Ossium Mounting System, T12 Mounting & Q-Blocks
LED Lifetime: 25,000 Hours
