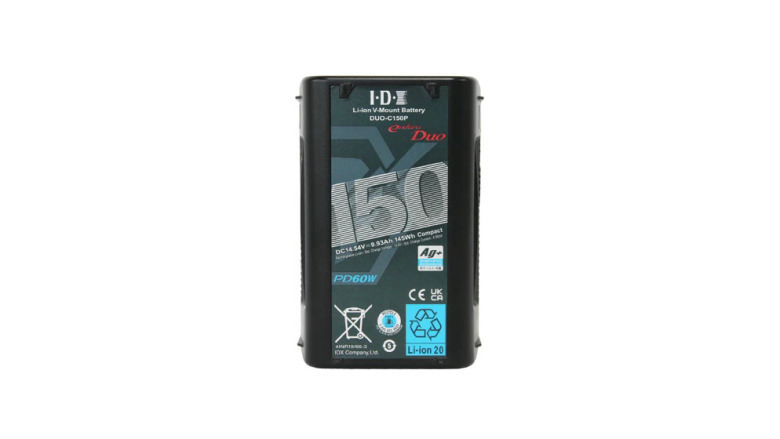

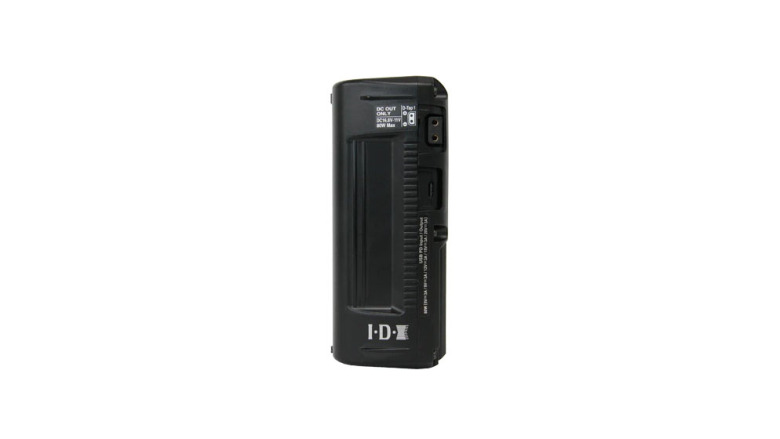

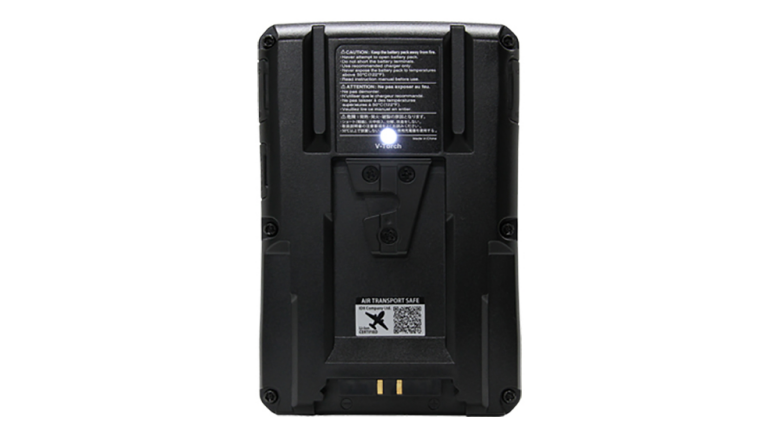

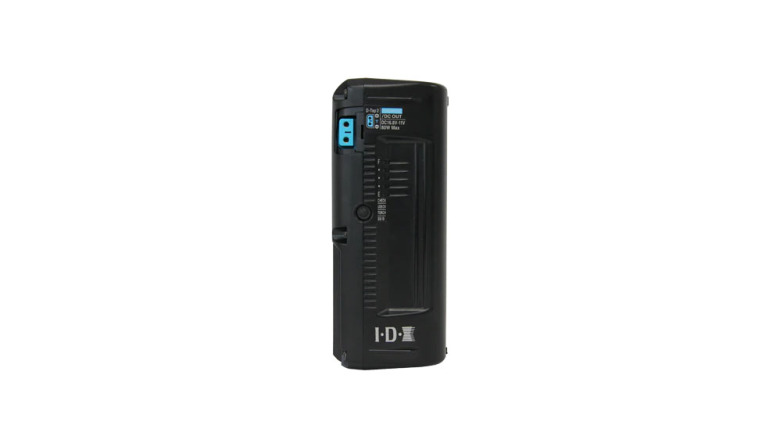

Duo C150P Battery 14.5V 145 Wh 2xD-Tap 1x USB PD

Partno: IDX-DUO-C150P
Stock status: In Stock
SEK 4202

Description

Duo C150P Battery 14.5V 145 Wh 2xD-Tap 1x USB PD

The DUO-C150P is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150P also includes two on-battery D-Taps and USB-C PD connector to charge battery and power accessories such as monitors, lights, wireless receivers, tablets, phones and more!

Features:

  • 145Wh capacity
  • Meets passenger aircraft travel regulations
  • Capable of handling up to 14A loads ‡
  • (1) 80W/4.7A D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
  • (1) 80W/4.7A D-Tap Output (unregulated)
  • (1) USB-C PD max. input/output 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A) (auto shut off after 30 minutes of inactivity)
  • Battery can be charged from USB-C using affordable charger (UC-PD1)
  • 5 Power Indicator LEDs (displaying 10% increments)
  • Battery circuit protection ensures the DUO-C150P is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
  • The highest grade Lithium Ion cells are used to ensure the DUO-C150P is one of the most reliable batteries on the market
  • 11V auto cut-off prevents over-discharging (while load is applied)
  • Fully compatible with all ENDURA V-Mount Battery chargers and accessories
  • Environmentally friendly and recyclable
  • Antiviral and antimicrobial body for peace of mind

Included items

Specification

  • Specification:

    Battery Capacity 145Wh (14.54V/ 9.93Ah)
    Max.Output Voltage 16.8V DC
    Nominal Voltage 14.54V DC
    Maximum Discharge Current 14A ‡
    D-Tap 80 W each
    USB-C PD: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
    End Voltage 11 V
    Battery Protection Reverse charge, Over charge, Over discharge, Over current,
    Temperature protection
    Ambient Temperature To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
    To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
    To store: -20°C ~ 50°C (one month)
    Dimensions 95(W)x146(H)x59(D) mm
    Weight 900 grams approx.
