Description

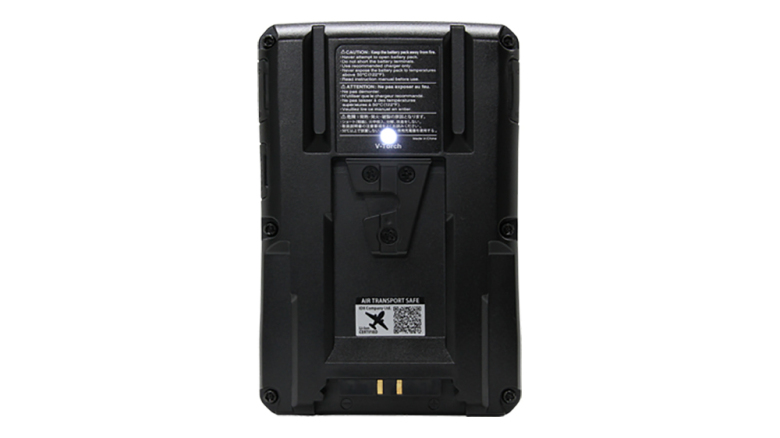

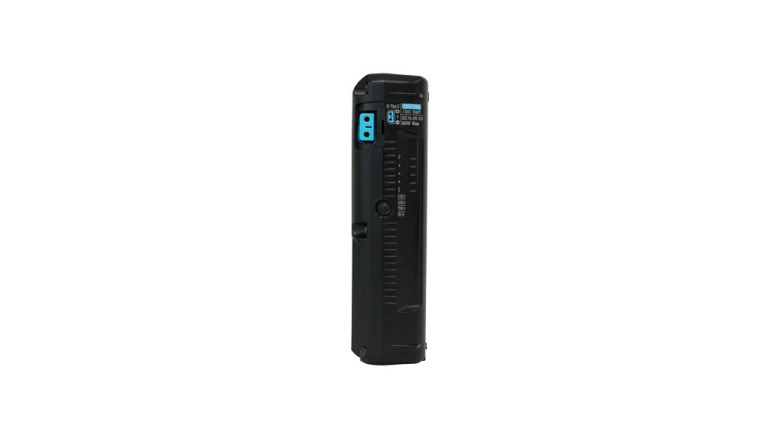

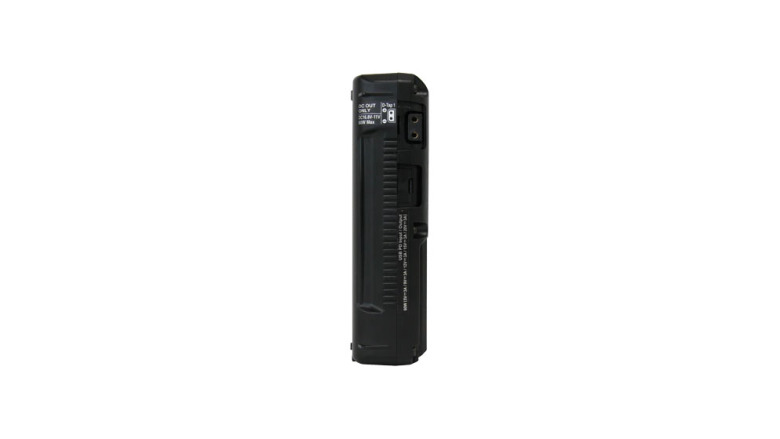

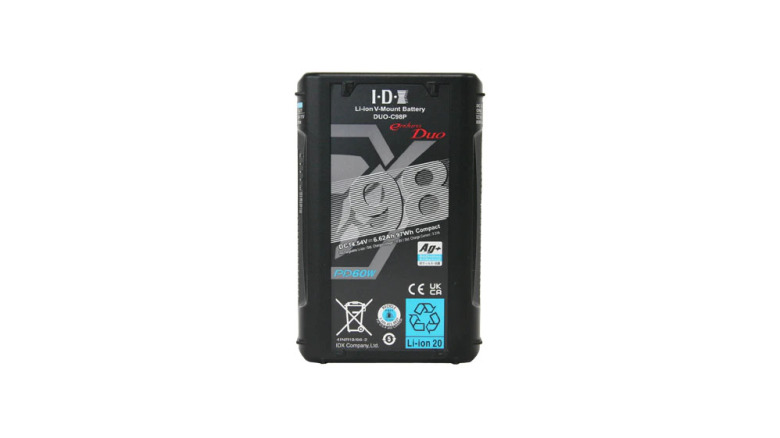

Duo C98P Battery 14.5V 97 Wh 2x D-Tap 1x USB PD
The DUO-C98P is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and a single built-in USB-C input/output to power ancillary accessories and also to charge battery.
Features:
- 97Wh capacity
- 1.5 inches in depth
- Compact high capacity IATA friendly(<100Wh) Lithium Ion battery (1.37lbs)
- Capable of handling up to 10A loads ‡
- (1) 80W D-Tap Advanced output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
- (1) 80W D-Tap output (unregulated)
- (1) USB-C PD max. input/output 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A) USB-C output (auto shut off after 30 minutes of inactivity)
- 5 Power Indicator LEDs (displaying 10% increments)
- Battery circuit protection ensures the DUO-C98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
- The highest grade Lithium Ion cells are used to ensure the DUO-C98 is one of the most reliable batteries on the market
- 11V auto cut-off prevents over-discharging (while a load is applied)
- Unrestricted amount of spare DUO-C98 batteries allowed for carry-on airline baggage under IATA regulations
- Fully compatible with all ENDURA V-Mount chargers and accessories
- Environmentally friendly and recyclable
- Antiviral and antimicrobial body for peach of mind
Included items
Specification
- Specification:
Battery Capacity: 97Wh (14.54V,6.62Ah)
Max.Output Voltage: 16.8V DC
Nominal Voltage: 14.54V DC
Maximum Discharge Current: 10.5A ‡
D-Tap: 80W each
USB-C PD: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
End Voltage: 11V
Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature
To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Dimensions: 95(W) × 146(H) x 39(D)mm
Weight: 640 grams approx.
