Fujinon XA20sx8.5BERM HD ENG Lens 2/3 inch

Description

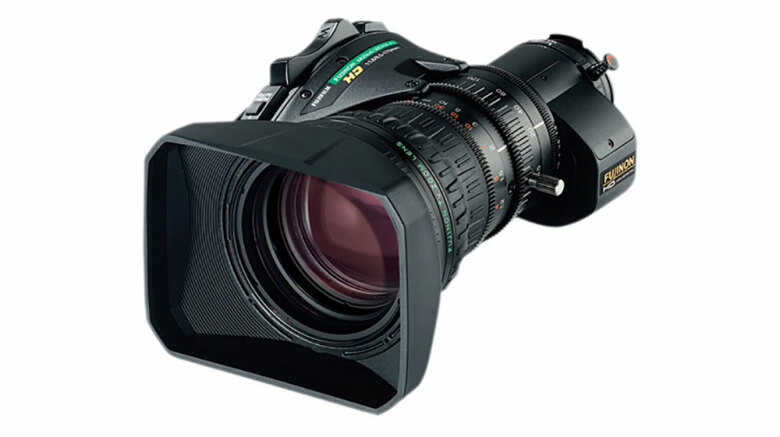

Fujinon XA20sx8.5BERM HD ENG Lens 2/3 inch

eXceed standard-Telephoto ENG lens with 2x extender

XA20sx8.5BERM is economical ENG Standard-Telephoto lens designed for 2/3-inch cameras it features 20x zoom and equipped 2x extender; high-optical quality; fast, quiet and precise servo zoom and focus. Its newly ergonomic servo grip comes with Quick Zoom Cruise Zoom and one second zoom speed. New glass properties also minimize colour fringing, and a new EBC optical coating improves transmission. XA20sx8.5BRM is best suited for use by wedding, house of worship and corporate video productions.

Features
• Focal Length Covered 8.5 to 170 mm (340 mm with x2 extender)
• HD Optical Performance
• Built in a x2 extender
• Newly eXceed Servo Grip
• Quick zoom* and Auto Cruising
• Latest EBC coatings for improved optical performance

*It is necessary to set lens up to use Quick Zoom function.

Included items

Specification

Specification:
Model Name: XA20sx8.5BERM
Focal length: 1x: 8.5-170 mm
2x: 17-340 mm
Zoom ratio: 20x
Extender: 2x
Maximum relative aperture (F-no.): 1 : 1,8 (8,5-113 mm) / 1 : 2,7 (170 mm)
Minimum object distance (M.O.D.) from front lens: 0,9m

Object dimensions at M.O.D. 16 : 9 Aspect ratio:
1x:
8,5 mm - 910 × 511 mm
170 mm - 47 × 26 mm
2x:
17 mm - 469 × 264 mm
340 mm - 24 × 13 mm

Angular field of view 16 : 9 Aspect ratio:
1x:
8,5mm - 58°51 × 35°11
170mm - 3°14 × 1°49
2x:
17 mm - 31°30 × 18°01
340 mm - 1°37 × 0°54

Filter thread: M82 × 0,75
Size (Ø × Length): Ø85 × 200,8 mm
Mass (without lens hood): 1,6 kg
