Hook and Loop Plate System
Description
Hook and Loop Plate System
Customize your rig with Wooden Cameras Hook and Loop Plate System, bundling multiple sizes of Hook and Loop plates with a unique mini rail and a hinge system. Securely mount items like your focus MDR, Timecode Box, and Wireless Video TX to any camera rig using the variable options in this kit including the 3/8-16 screw mount with locating pins, lightweight 15mm mount with screw mounts and compatible hinge system that promise maximum stability and configurability.
In addition to providing the maximum customization to your rig, our Hook and Loop Plate System provides a sleek and unobtrusive design featuring a black anodized aluminum finish.
Each System contains four Hook and Loop plates in the following increments: 5"x5", 3"x5", 2"x5" and 2"x2".
All four plate sizes include multiple mounting points to configure the Mini Accessory Rails in different ways. This allows the user to adjust placement and maximize the ergonomics of each camera build.
The threading size for the Accessory rail attachments is M2.5.

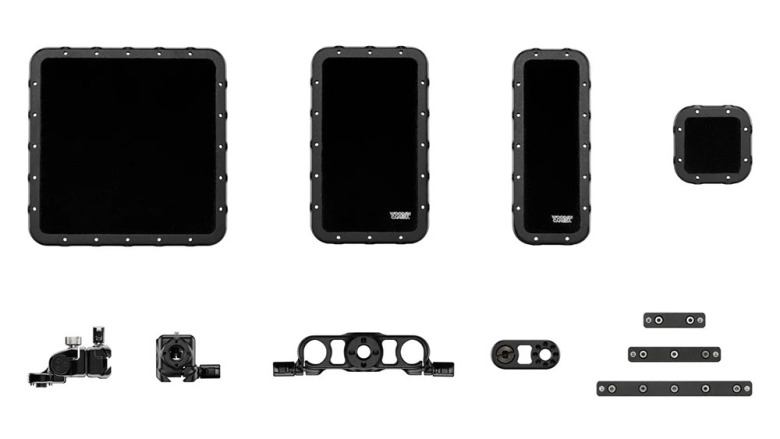

Included items
- Included items:
- Bolt-On Accessory Rail Clamp
- Universal Dual Rod Clamp for Bolt-On Accessories
- Universal Accessory Hinge (3/8"-16 Male x 3/8"-16 Female)
- 28mm Offset Bracket with Pins (3/8"-16 Male x 3/8"-16 Female)
- Hook and Loop Plate (2 In x 2 In)
- Hook and Loop Plate (2 In x 5 In)
- Hook and Loop Plate (3 In X 5 In)
- Hook and Loop Plate (5 In X 5 In)
