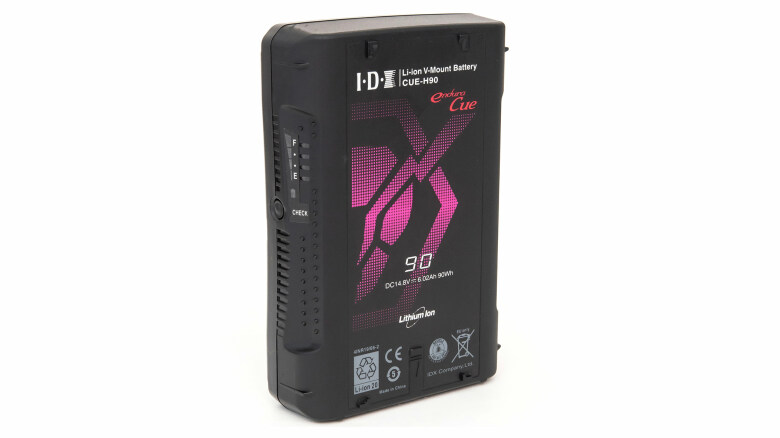

IDX CUE-H90 14,8V 90Wh with 1xD-tap (OP 80W)
Description
IDX CUE-H90 14,8V 90Wh with 1xD-tap (OP 80W)
Weighing only 1.3 lbs with a 90Wh capacity and a built-in D-Tap connection capable of taking a 80W load for powering additional accessories, the CUE-H90 is the ideal power solution for small profile camera setups such as handheld gimbal and aerial systems.
Product Features
- 90Wh capacity
- Capable of handling up to 7.0A/85W loads
- 1 x 80W D-Tap output (unregulated)
- 4 Power Indicator LEDs
- New internal pack design cradles each cell securely to enhance the reliability and safety of the battery
- Lithium Ion V-Mount battery designed to meet Japans stringent PSE safety regulations for enhanced mechanical and electrical safety
- Battery circuit protection ensures the CUE-H90 is fully protected against common causes of misuse, guarding against over-charge, over-discharge, and over-current
- The highest grade Lithium Ion cells are used to ensure the CUE-H90 is one of the most reliable batteries on the market
- Fully compatible with all ENDURA V-Mount chargers and accessories
- Environmentally friendly and recyclable
Included items
Specification
- Specification:
Battery Capacity: 14.8V, 6.02Ah, 90Wh*
Max. Output Voltage: 16.8V DC
Nominal Voltage: 14.8V DC
Maximum Discharge Current: 7.0A/85W
D-tap: 80W
End Voltage: 11.2V
Battery Protection: Over charge, Over discharge, Over current
Ambient Temperature:
To charge: 0°C ~ 40°C
To discharge: -20°C ~ 45°C
To store: -20°C ~ 45°C (less than 1 month)
Dimensions: 97(W) x 146(H) x 39(D) mm
Weight: 610g approx.
