Description

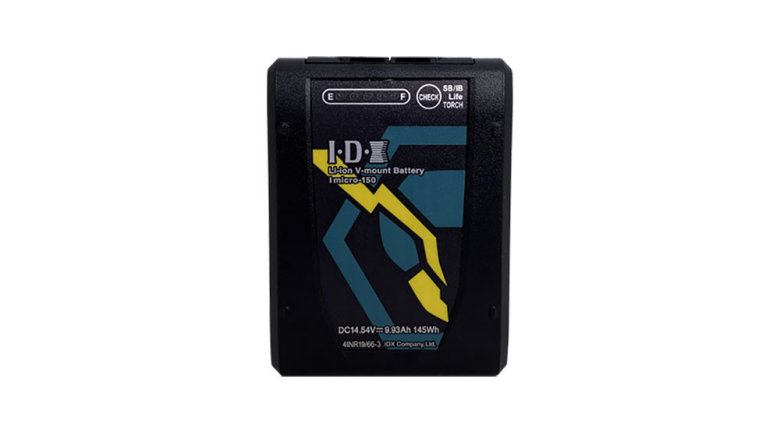

Imicro-150 Battery 14.54V 145Wh, 1 x D Tap Adv. + 1 x D-Tap
The Imicro-150 is the smallest battery pack in the world at this capacity. Rated at 145Wh, the Imicro-150 meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The Imicro’s size is beneficial for users with small equipment and gimbal set ups. The Imicro-150 also includes two on-battery D-Tap outputs. Future accessories will make the Imicro Series your new go-to setup.
Features:
145Wh capacity
Meets passenger aircraft travel regulations
Capable of handling up to 14A loads

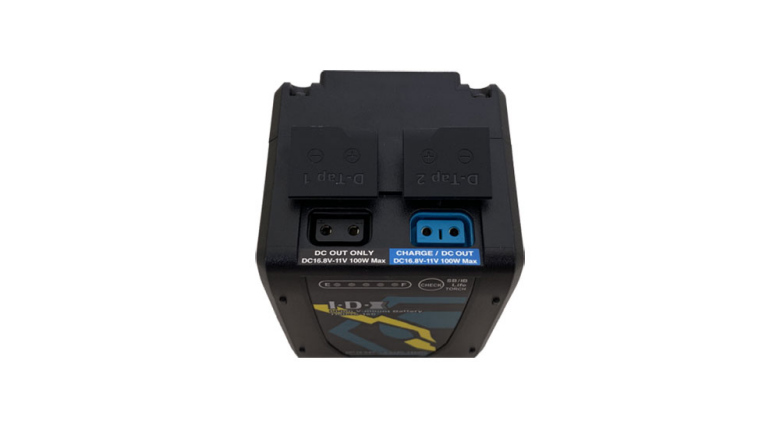

(1) 100W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
(1) 100W D-Tap Output (unregulated)
5 Power Indicator LEDs (displaying 10% increments)
Battery circuit protection ensures the Imicro-150 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
The highest grade Lithium Ion cells are used to ensure the Imicro-150 is one of the most reliable batteries on the market
11V auto cut-off prevents over-discharging (while load is applied)
Fully compatible with all ENDURA V-Mount Battery chargers and accessories.
Environmentally friendly and recyclable
Included items
Specification
- Specification:
Battery Capacity: 145Wh (14,4V/ 9,9Ah)
Max.Output Voltage: 16,8V DC
Nominal Voltage: 14,5V DC
Maximum Discharge Current: 14A
D-Tap: 100W each
End Voltage: 11V
Battery Protection: Over charge, Over discharge, Over current, Thermal protection
Ambient Temperature: To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (less than one month)
Dimensions: 72(W) × 97(H) × 67,5(D) mm
Weight: 750 grams approx.
