Kit 2 x DUO-C98P + 1 x VL-2X

IDX
Partno: IDX-ED-CP98-2X
Stock status: Ships in 9-14 days
SEK 8920

Description

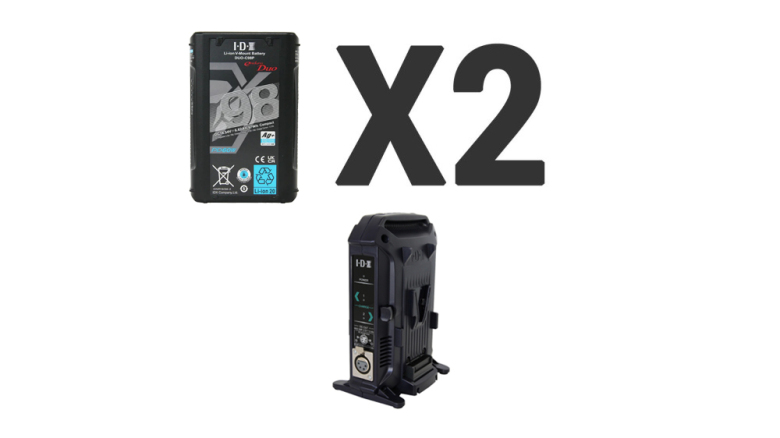

Kit 2 x DUO-C98P + 1 x VL-2X

Kit from IDX with two DUO-C98P Battery and one VL-2X Charger.

The DUO-C98P is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and a single built-in USB-C input/output to power ancillary accessories and also to charge battery.

The VL-2X is a slim, lightweight 2-channel charger with the added advantage of an integrated 36W power supply. With a fanless design, the VL-2X also delivers high power charging without the noise of a typical quick charger. The VL-2X is a multi-chemistry charger for both Li-ion and Ni-Cad battery types.

Included items

  • Included items:
    x2 - DUO-C98P Battery
    x1 - VL-2X Charger

Specification

  • Specification:
    DUO-C98P Specification
    Battery Capacity: 97Wh (14.54V,6.62Ah)
    Max.Output Voltage: 16,8V DC
    Nominal Voltage: 14,54V DC
    Maximum Discharge Current: 10,5A ‡
    D-Tap: 80W each
    USB-C PD: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
    End Voltage: 11V
    Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
    Ambient Temperature
    To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
    To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
    To store: -20°C ~ 50°C (one month)
    Dimensions: 95×146×39 mm
    Weight: 640 grams approx.

    VL-2X Specification
    Input Voltage: AC 100~240V 50/60Hz.
    Power Consumption: MAX 140VA.
    Quick Charge Current: 1,9A.
    DC Output:
    Maximum output in DC operation: DC 15V / 2.4A (Max 36W)
    Battery Output: Battery voltage through output/Battery max. discharge current
    Operating Temperature: 0°C ∼ 40°C.
    Dimensions: 87.4×183.3×126.6 mm.
    Weight: 430g approx.
