Kit 4 x DUO-C150P + 1 x VL-4X
Description
Kit 4 x DUO-C150P + 1 x VL-4X

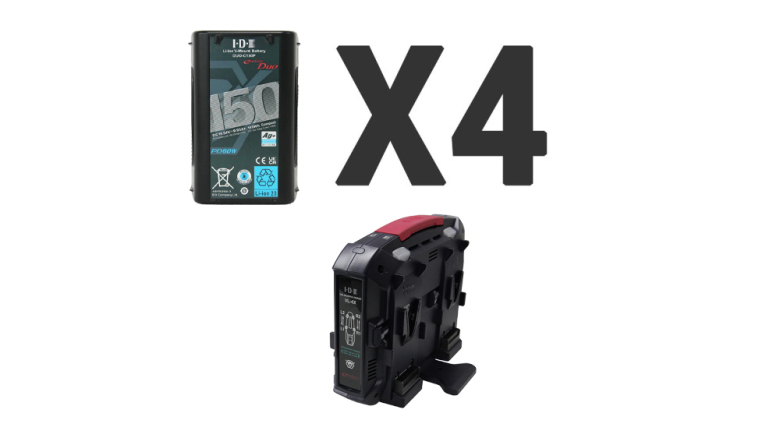

Kit from IDX with four DUO-C150P Battery and one VL-4X Charger.
The DUO-C150P is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150P also includes two on-battery D-Taps and USB-C PD connector to charge battery and power accessories such as monitors, lights, wireless receivers, tablets, phones and more!
The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.
Included items
- Included items:
x4 - DUO-C150P Battery
x1 - VL-4X Charger
Specification
- Specification:
DUO-C150P Specification
Battery Capacity: 145Wh (14.54V/ 9.93Ah)
Max.Output Voltage: 16,8V DC
Nominal Voltage: 14,54V DC
Maximum Discharge Current: 14A ‡
D-Tap: 80W each
USB-C PD: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
End Voltage: 11V
Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature
To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Dimensions: 95×146×59 mm
Weight: 900 grams approx.
VL-4X Specification
Input Voltage: AC 100~240V 50/60Hz.
Power Consumption: MAX 220VA.
Quick Charge Current: 2.7A max.
DC Output:
Maximum output in DC operation: DC 15V / 6A (Max 90W)
Battery Output: Battery voltage through output/Battery max. discharge current
Operating Temperature: 0°C ~ 40°C.
Dimensions: 90.5(W) x 177(H) x 250(D) mm.
Weight: charger body 1100g approx. / ac adapter 450g approx.
