Description

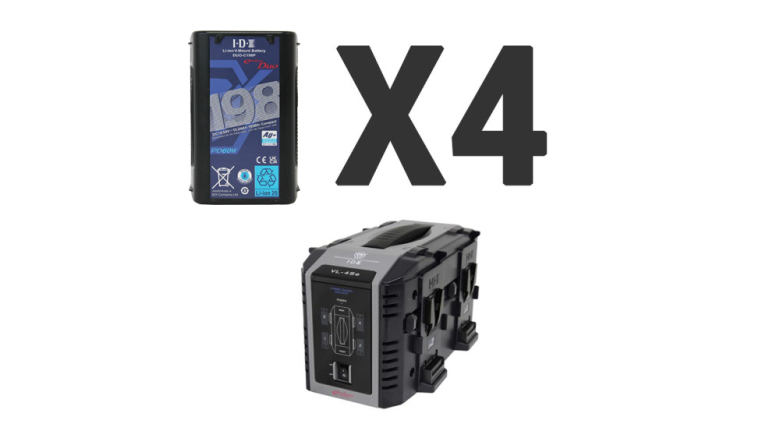

Kit 4 x DUO-C198P + 1 x VL-4Se
Kit from IDX with four DUO-C198P Battery and one VL-4Se Charger.
The DUO-C198P is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With its ultra-robust 193Wh capacity and compact 2.4lb design, the DUO-C198P can provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C198P also includes two on-battery D-Taps and USB-C outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones and more!
The VL-4Se is a fully simultaneous 4-channel charger, housed in a high-impact, polycarbonate enclosure with a recessed power switch and carrying handle. Quick and powerful charging make the VL-4Se the perfect choice for broadcast and production facilities with a high battery usage. Each channel is operated independently so batteries can be placed on charge in any order and at any time. (This VL-4Se is the successor of the VL-4S)
Included items
- Included items:
x4 - DUO-C198P Battery
x1 - VL-4Se Charger
Specification
- Specification:
DUO-C198P Specification
Battery Capacity: 193Wh (14.54V/ 9.93Ah)
Max.Output Voltage: 16,8V DC
Nominal Voltage: 14,54V DC
Maximum Discharge Current: 14A ‡
D-Tap: 80W each
USB-C PD: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
End Voltage: 11V
Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature
To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Dimensions: 97×146×59 mm
Weight: 1090 grams approx.
VL-4Se Specification
Input Voltage: AC 100-240V 50/60Hz
Power Consumption: 220VA Max.
Quick Charge Current.
Li-ion
2.7 A (4 Channels)
3A (1-3 Channels)
Quick Charge System: Li-ion: Constant Current / Constant Voltage
Pre-Charge Current: 140-300mA
Operating Temperature: 0°C ~ 40°C
Dimensions: 156(W) × 153(H) × 288(D) mm
Weight: 2.7Kg approx.
