Kit 4 x DUO-C98P + 1 x VL-4Se
Description
Kit 4 x DUO-C98P + 1 x VL-4Se

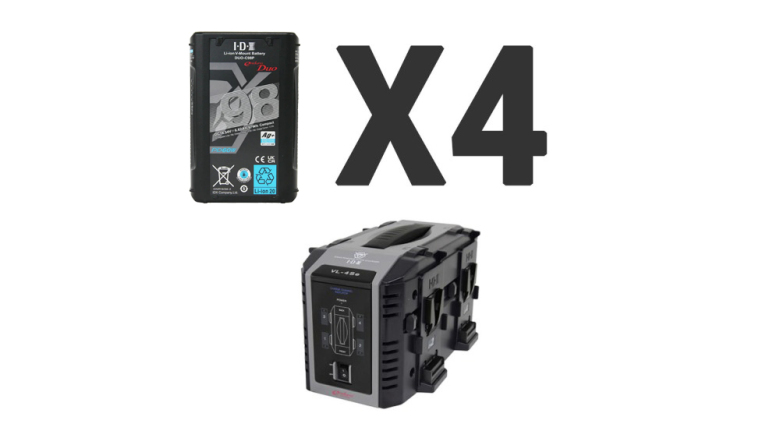

Kit from IDX with four DUO-C98P Battery and one VL-4Se Charger.
The DUO-C98P is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and a single built-in USB-C input/output to power ancillary accessories and also to charge battery.
The VL-4Se is a fully simultaneous 4-channel charger, housed in a high-impact, polycarbonate enclosure with a recessed power switch and carrying handle. Quick and powerful charging make the VL-4Se the perfect choice for broadcast and production facilities with a high battery usage. Each channel is operated independently so batteries can be placed on charge in any order and at any time. (This VL-4Se is the successor of the VL-4S)
Included items
- Included items:
x4 - DUO-C98P Battery
x1 - VL-4Se Charger
Specification
- Specification:
DUO-C98P Specification
Battery Capacity: 97Wh (14.54V,6.62Ah)
Max.Output Voltage: 16,8V DC
Nominal Voltage: 14,54V DC
Maximum Discharge Current: 10,5A ‡
D-Tap: 80W each
USB-C PD: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
End Voltage: 11V
Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature
To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Dimensions: 95×146×39 mm
Weight: 640 grams approx.
VL-4Se Specification
Input Voltage: AC 100-240V 50/60Hz
Power Consumption: 220VA Max.
Quick Charge Current.
Li-ion
2.7 A (4 Channels)
3A (1-3 Channels)
Quick Charge System: Li-ion: Constant Current / Constant Voltage
Pre-Charge Current: 140-300mA
Operating Temperature: 0°C ~ 40°C
Dimensions: 156(W) × 153(H) × 288(D) mm
Weight: 2.7Kg approx.
