LiteDimmer Spectrum AC/DC 200

Partno: LG-LD-SPECTRUM-ACDC200
Stock status: In Stock
SEK 25878   Excl. VAT (moms)
SEK 32348   Incl. VAT (moms)

Description

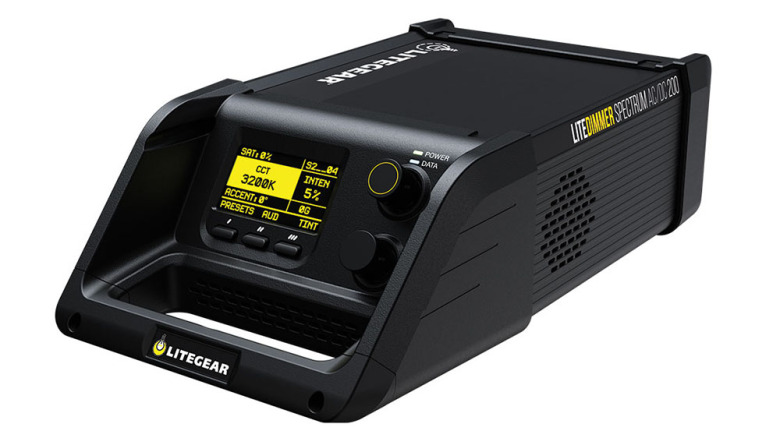

LiteDimmer Spectrum AC/DC 200

The LiteDimmer Spectrum AC/DC 200 is part of a new class of dimmer packed with great new features, an ergonomic design, and ultra-compact form factor. Complete with local control and industry leading communication protocols, the AC/DC 200 can control multiple large format pixels, making pixel mapping of the LiteMat Spectrum easier than ever. Specially designed with AC and DC power options, integrated power supply, advanced processing power, Ethernet switch, expanded memory, and a faster processor, this new hardware allows for easy operation and cutting-edge software features. An integrated USB-A port enables easy updates that will bring new, innovative software for years to come.

Included items

Specification

  • Specification:
    Product Name:   LiteDimmer Spectrum AC/DC 200
    Item Number:   LD-SPECTRUM-ACDC200
    Model:   299-1
    Input Voltage:   100 - 240V AC, 50/60 Hz
    Input Current:   3A
    Output Voltage:   48V DC
    Output Current:   5A

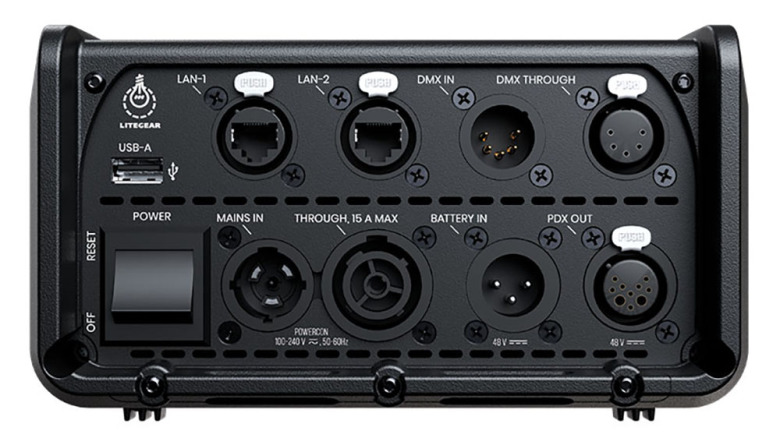

    Data Connectors:   USB-A, 2x EtherCon, 5-Pin DMX In and Thru, Internal CRMX Antenna
    Data Connectors:   PDX
    Mains Power Connectors:   powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare Ends cables available)
    Control:   DMX, RDM, CRMX, Art-Net, sACN
    Switches:   On-board On/Off Switch
    Power:   250W Maximum
    IP Rating:   IP20
    Weight:   6.8 lbs (3.1 kg)
    Height:   4.1 in (104.4 mm)
    Width:   7.3 in (185 mm)
    Length:   13.3 in (338.6 mm)
    Max Operating Temperature:   122degr.F (50degr.C)
    Mounting:   kMount (truss & stand mounts available)
    Certifications:   ETL, CE, UKCA, FCC (certification pending)
