Micro Bender High CRI Essential Kit

Partno: CS-K-CSU-2-B-ESS
Stock status: Ships in 9-14 days
SEK 13300   Excl. VAT (moms)
SEK 16625   Incl. VAT (moms)

Description

Micro Bender High CRI Essential Kit

The Creamsource Micro compact form factor fits into small spaces while still packing a punch.

It features a rugged and waterproof design, with an IP65 rating which means it can be used in all weather. Light output is the same excellent quality as the rest of the Creamsource range, with colour temperature adjustable from 2700 to 6500K and a CRI/TLCI of greater than 90. Drawing only 80W, it rivals the light output and punch typical of some 200W HMI Luminaires. Unlike most bi-colour fixtures, the Micro maintains constant power output across the whole CCT range, so users always get the unit’s full potential, and there is no reason to have to choose between a bi-colour or daylight system. Another key innovation of the Micro is its wide 10-32V operating voltage, allowing users to power the fixture from a single 90WH battery, or directly from a car.

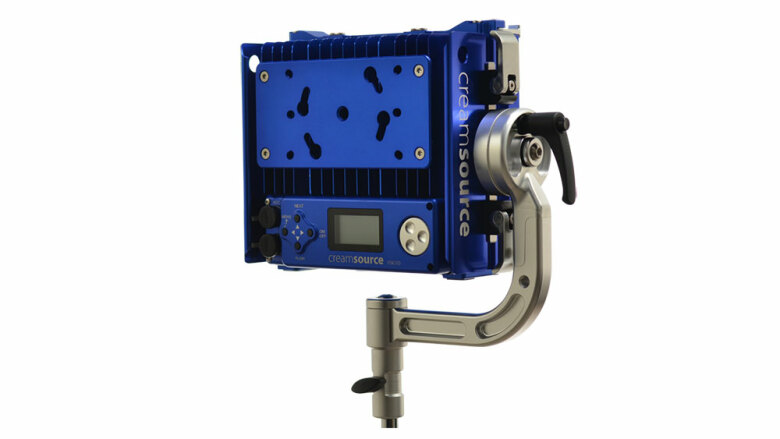

There are three main different rigging options: Quick release Yoke, Kino Flo Style Twist-on Mount, or single 3/8th Thread.

Numerous accessories are available, including a choice of V-Lock or Gold Mount style quick release battery plates for easy portability, a Snap-Bag light-bank from DOP Choice, Outsight’s high efficiency holographic lens system, and a hardwearing soft travel case.

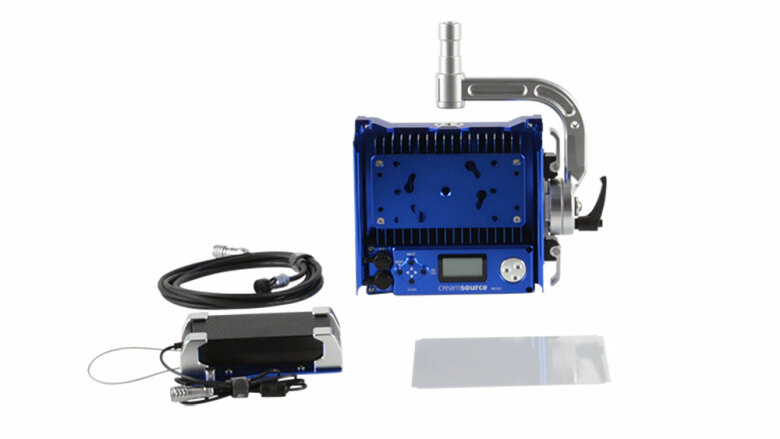

Included items

  • Included items:
    Micro Bi-colour head.
    Rigging Yoke
    Baby Socket Receiver
    Power Supply with Mounting Bracket
    Power Cable 3m
    60° Lens

Specification

  • Specification:
    CRI: Typical 95, minimum 90
    TLCI: Typical 95, minimum 90
    Color Temperature: between 2700K – 6500K
    Beam Angle: 13° (Half Peak Angle)
    Mounting: 3/8" Threaded Insert. Kino Flo Twist On Style Mount Plate
    Yoke: Removable (Quick Release System).
    Filter Rails: 2 Filter Rails for Secondary Lenses and Gels
    User interface: High Precision Digital Rotary Encoder, 4 Button Keypad, Graphic LCD Display
    Control: On-Board Interface, DMX-512 with Optional Adapter Cable, Optional Wired Remote Control
    Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
    High Speed Capability: Over 1000fps Flicker Free in High Speed Mode
    Synchronization: Sync Input for Triggering and Syncing to Camera Shutter
    Max Ambient Temperature Cooling: 40°C
    Cooling: Passive – No Fans
    Estimated LED Lifespan: 50,000hrs
    Input (Fixture): 10-32V DC, Max 8A (80W)
    Input (Power Supply): 100-240V AC, 50-60Hz, Max 1,3A
    Protection Class: IP65
    Protection Class (Power Supply): IP20
    Weight: 3,1 kg (without yoke)
    Dimensions
    Fixture Only: 220 × 207 × 105mm
    Dimensions with yoke: 283 × 331 × 105mm
