Micro Colour Gaffer Kit (V-Lock)

Partno: CS-K-CSU-C-GAF-V
Stock status: Ships in 9-14 days
SEK 29530   Excl. VAT (moms)
SEK 36913   Incl. VAT (moms)

Description

Micro Colour Gaffer Kit (V-Lock)

The Creamsource Micro Colour features calibrated red, green, blue and white LEDs (RGBW) – so as well as producing beautiful white light in any CCT from 2,200K to 15,000K, it also has green/magenta adjustment and can produce vivid, saturated colours.

The Micro Colour has a 20 degree beam angle for maximum punch, fan-free cooling for silent operation, and is water resistant so it can be used in all weather (IP65 rated). It is lightweight yet rugged, quick to rig and its compact form factor means it can squeeze into small spaces on set.

The LED engine has been specially crafted to provide exceptional white light colour quality, with typical CRI and TLCI values above 95.

There are three main different rigging options: Quick release Yoke, Kino Flo Style Twist-on Mount, or single 3/8th Thread.

Numerous accessories are available, including a choice of V-Lock or Gold Mount style quick release battery plates for easy portability, a Snap-Bag light-bank from DOP Choice, Outsight’s high efficiency holographic lens system, and a hardwearing soft travel case.

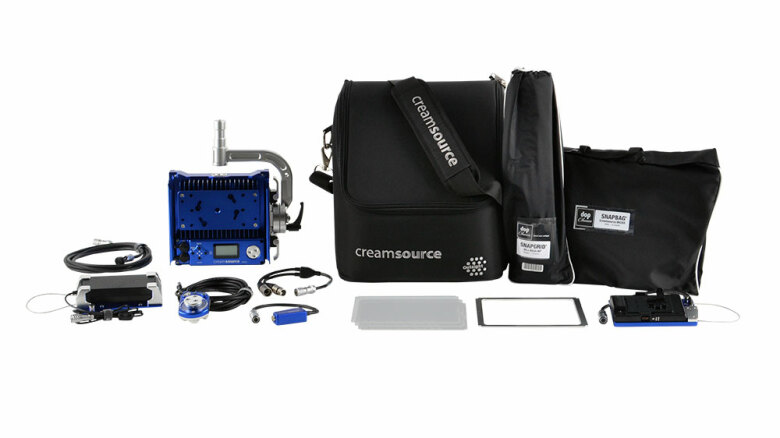

Included items

  • Included items:
    Micro Colour head.
    Rigging Yoke
    Power Supply with Mounting Bracket
    Power Cable 3m
    20° Lens
    60° Lens
    100° Lens
    Empty Gel Frame
    Softbag padded case
    DOP Choice Snap Bag
    DOP Choice Snap Grid 40°
    Wired Remote Controller
    Converter cable for non-waterproof accessories
    DMX adapter Y cable
    V-Lock battery mounting plate

Specification

  • Specification:
    CRI: Typical 95
    TLCI: Typical 95
    Color Temperature: between 2200K – 15000K
    Beam Angle: 20° (Half Peak Angle)
    Mounting: 3/8" Threaded Insert. Kino Flo Twist On Style Mount Plate
    Yoke: Removable (Quick Release System).
    Filter Rails: 2 Filter Rails for Secondary Lenses and Gels
    User interface: High Precision Digital Rotary Encoder, 4 Button Keypad, Graphic LCD Display
    Control: On-Board Interface, DMX-512 with Optional Adapter Cable, Optional Wired Remote Control
    Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
    High Speed Capability: Over 5000fps Flicker Free in High Speed Mode
    Synchronization: Sync Input for Triggering and Syncing to Camera Shutter
    Max Ambient Temperature Cooling: 40°C
    Cooling: Passive – No Fans
    Estimated LED Lifespan: 50 000 hrs
    Input (Fixture): 10-32V DC, Max 8A (80W)
    Input (Power Supply): 100-240V AC, 50-60Hz, Max 1,3A
    Protection Class: IP65
    Protection Class (Power Supply): IP20
    Weight: 3,4kg (without yoke)
    Dimensions
    Fixture Only: 223×207×108 mm
    Dimensions with yoke: 330×331×108 mm
