Description

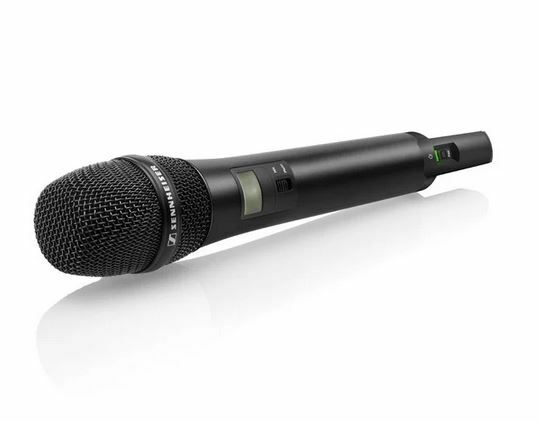

Microphone handheld wireless AVX w/mute incl 835S-3 and BA10
The SKM AVX-835 handheld transmitter for the AVX system is fully self configuring which makes the setup of radio frequencies a thing of the past. The AVX matches perfectely to your cameras input sensitivity without having to adjust the audio level on the microphone. The mute switch on the handheld transmitter gives you full controll during your interview.
Included items
- Included items:
- Handheld transmitter
- Microphone capsule MMD 835
- Microphone clamp
- Energy pack
Specification
- Specification:
Sensitivity in free field, no load (1kHz): 1,8 mV/Pa +- 2,5 dB
Color: black
Frequency response: 20 Hz - 20000 Hz
THD, total harmonic distortion: typ. 0.1 %
Weight: Receiver - 87 g (incl energy pack)
Audio input: 3,5 mm mini jack
Audio output: XLR
Operating temperature: -10 °C - + 55°C
Signal-to-noise ratio: > 90 dB(A)
RF output power: adaptive up to 250mW (peak) country specific
Operating time: > 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack)
Modulation: GFSK
Audio output level: -30 dBu - 0 dBu in 4 Steps
Battery Specification: Li-Ion 3,7 V DC
Dynamic range: > 120 dB(A)
Frequency band: 1880 - 1930 MHz (Country specific)
Sampling rates: 24 bit / 48 kHz
Latency: 19 ms
