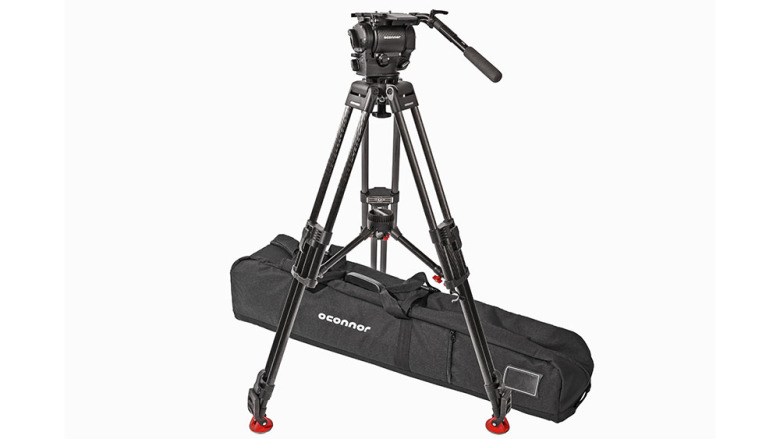

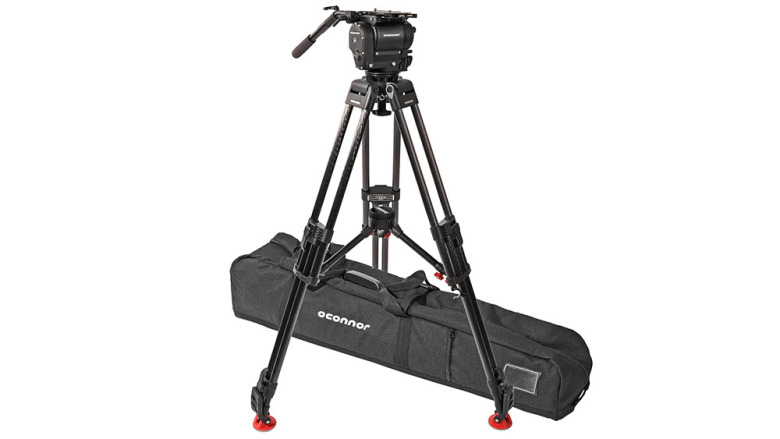

OConnor Ultimate 1040 & 30L System w/ Mid-Level Spreader
Description
OConnor Ultimate 1040 & 30L System w/ Mid-Level Spreader
The OConnor 1040 and 30L tripod system with mid-level spreader combines the precision ultra-smooth fluid camera movement that has made OConnor heads the cinematography industry standard together with the stability and durability of the 30L Tripod.
The OConnor Ultimate 1040 fluid head delivers a continuous, ultra-smooth pan and tilt fluid drag system for ultimate control and stability together with OConnor´s unrivalled Sinusoidal Counterbalance system for true, accurate balance at any point in the tilt range and counterbalance down to zero for perfect balance no matter the payload. Made with high-performance magnesium and aluminium alloys with stainless steel and genuine carbon fiber finishing, the Ultimate 1040 head is built to deliver consistent results on the most demanding sets.
The 30L Carbon fiber tripod is stable and twist resistant, while the clamping system makes it simple to setup and work safely. The 30L provides a lightweight, durable and reliable design.
The OConnor 1040 and 30L tripod system with mid-level spreader includes a soft carry case - able to support payloads from 0 to 45 lbs (20 kg) at 5"(125 mm) centre of gravity and a +/-90degr. tilt range.
Key Features
- Complete system with fluid head, tripod, spreader and soft carry case
- Payload capacity of 0-45lbs (20kg)
- Silky smooth OConnor drag with continuous adjustment, as featured in all Ultimate Heads
- OConnor Sinusoidal Counterbalance for true, accurate balance at any point in the tilt range
- Lightweight and durable two-stage carbon fiber tripod
Included items
- Included items:
- 1040 Fluid Head Package (C1265-0001)
- 30L Carbon Fiber Tripod (C1251-0001)
- Mid-level Spreader (C1252-0001)
- Rubber feet (7004)
- Soft Carrying Case (C1254-0001)
Specification
- Specification:
Payload: 0-45 lb (0-20 kg) at 5" (125 mm) C of G above platform Plate: Large Euro ‘Touch and go' Pan Handle with 30degr. Bend: 12" Pan Handle Extension: 11.5" Tilt Range: +/- 90degr. Counterbalance: Sinusoidal, full 180degr. tilt range from zero to max payload Interchangeable Options: Optionally Interchangeable to 150mm, Mitchell, 4 bolt, 3 bolt or quickfix. Tripod Extension: 2x Tripod Material: Carbon fiber System Height Range: 29.3 - 69.1 in (75 - 176 cm) System Transport Length: 38.2 in/ 97 cm System Weight: 23.6 lb / 10.7 kg
