Panasonic IP Camera Control AW-RP60
Description
Panasonic IP Camera Control AW-RP60
Introducing the all-new AW-RP60 Remote Camera Controller. Equipped with a large LCD to display a GUI menu screen with clear visibility and an improved joystick for smoother control, this controller is the ideal companion to Panasonic PRO PTZ camera models. Thanks to the improved GUI, all important information about the cameras, such as iris, zoom and focus can be seen at all times directly on the screen. The AW-RP60 is also capable of supporting up to 200 cameras, manages 100 presets and comes with PoE support allowing for easy integration into your video production workflow.
Product Details

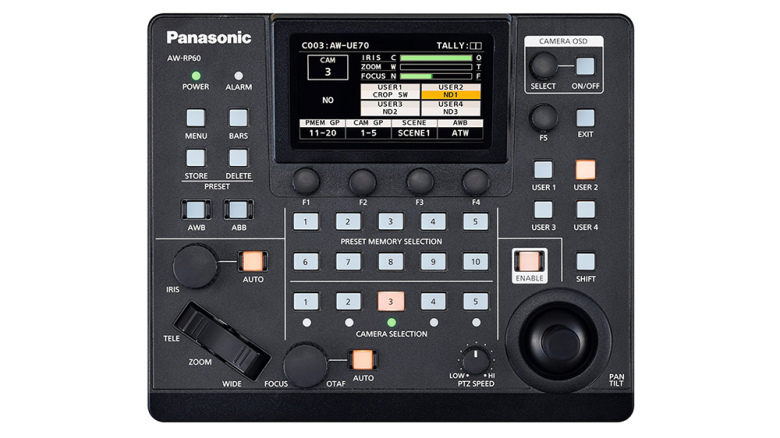

A compact, hardware-based controller for use with Panasonic PRO PTZ remote cameras. The AW-RP60 features an improved joystick for smooth and responsive camera control of up to 200 robotic cameras, as well as easy management of up to 100 camera presets.
Key Features
Control of up to 200 remote robotic network cameras
Intuitive joystick for smooth and responsive PTZ camera control
3.5" LCD screen displays menu and key camera information such as iris, zoom and focus
Easy management of up to 100 PTZ camera presets
Supports PoE power
3.5" LCD Screen
The AW-RP60 controller is equipped with a 3.5" LCD screen to deliver a GUI menu where the information you need is provided at a glance for intuitive and quick camera control.
Flexible Customization
The controller is equipped with 4 user assignable buttons to which up to eight functions of your choice can be assigned. Each preset name can also be customized with a PC tool. The flexible features of the controller make it perfect for use in a wide range of environments, from lectures and corporate seminars to live streaming and broadcasting at sporting events.
Advanced Joystick
The new joystick supports smooth pan and tilt operations and ensures accurate capture of your target image. The grip of joystick is approximately 1.5x larger than the previous model, AW-RP50, allowing for an even more stable PRO PTZ camera operation.
PoE Support
PoE (Power over ethernet) support enables power and camera control to be delivered via a single ethernet cable. In addition to camera control operation, gamma, white balance and other color adjustment functions can be performed, making advanced camera adjustments possible.
PRO PTZ Camera Compatibility
The AW-RP60 is compatible with the following Panasonic professional PTZ cameras. There will be a firmware update available in 2020 for the listed cameras that are not compatible with the RP60 at this time. Download the latest firmware to utilize the "NEW" compatible models below.
AW-UE150
AW-HE130
AW-UE70
AW-HE42
AW-HE40
AW-HE38
AW-UE4
AW-HR140
Specification
- Specification:
Current consumption 0.9 A (XLR connector input), 0.3 A (PoE power supply)
Power Requirements 12 V DC (10.8 V to 13.2 V)
Mass 1.5 kg (3.31 lbs)
Dimensions (W x H x D) (mm) W 210 mm x H 92 mm x D 177 mm (excluding protrusions)
Dimensions (W x H x D) (inch) 8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions)
Display 3.5-type liquid crystal (QHD 960 x 540)
Connection Specifications No. of Connectable Cameras : 200 (IP), 5 (RS422)
*Up to 100 for cameras other than the AW-UE150
Remote Camera Selection : 5 (6 to 200 controlled from the LCD)
No. of Camera Groups : 20 (10 units/group)
No. of Memory Presets : 100
PoE* IEEE802.3af standard: 42 V to 57 V DC (Camera Input)
Note *PoE is the abbreviation for Power over Ethernet.
