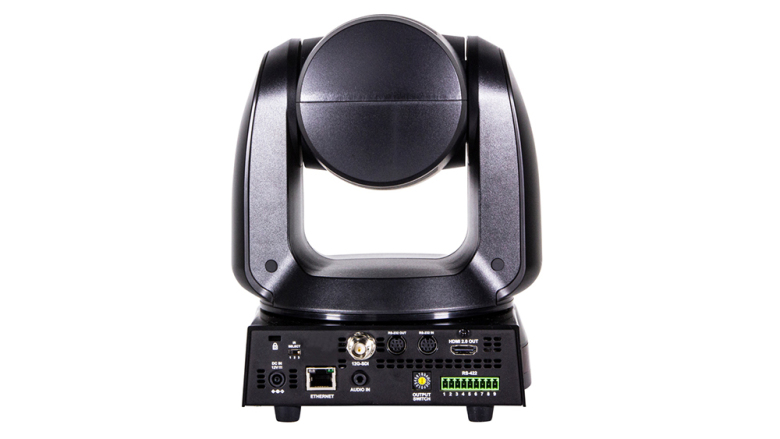

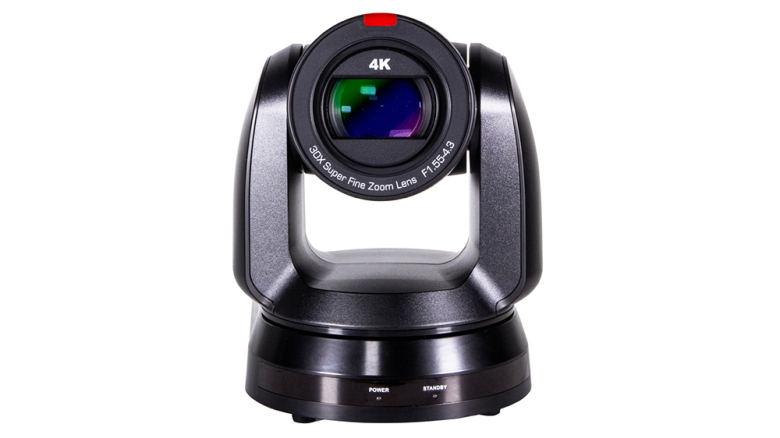

PTZ Camera UHD - 30x Zoom Lens - 12G-SDI/HDMI/IP (Black)
Description

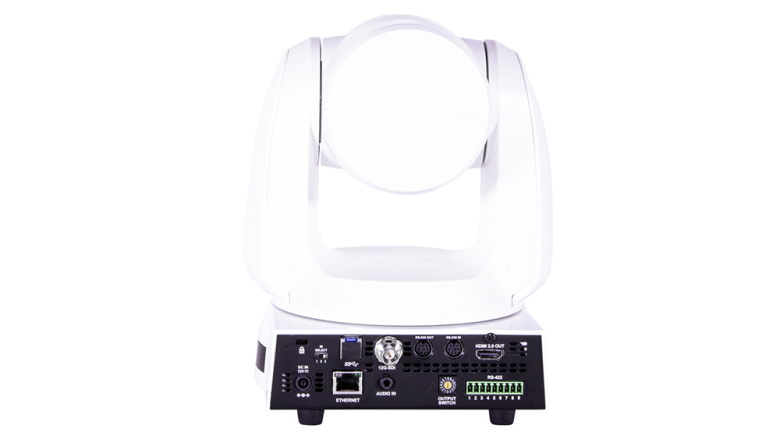

PTZ Camera UHD - 30x Zoom Lens - 12G-SDI/HDMI/IP (White)
3840x2160p @ 25, 29.97, 50 & 59.94 / 1920x1080p @ 25, 29.97, 30, 50 & 59.94 / 1280×720 @ 25, 29.97, 50 & 59.94
Key Features
3840×2160 up-to 60p and HD (1920×1080/1280×720) up-to 60p
Simultaneous 12G-SDI, HDMI & IP Ethernet video outputs
H.264 & H.265 encoding over IP
30x optical zoom (6.5mm-202mm)
Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
3.5mm audio input for external microphone
Product Overview
CV730 delivers crystal-clear UHD images at up-to 60p using simultaneous 12G-SDI, HDMI 2.0 and IP outputs. The high-quality 8.5MP 1/1.8″ UHD sensor is paired with accurate and smooth pan & tilt motors together with remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols.
Featuring a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm through to 202mm which captures a tight head & shoulder shot at long distances.
Install one-cable to camera for all functions (power, control, audio, video) or use Ethernet for PoE+/Preview and other outputs (12G-SDI/HDMI) for simultaneous workflows for streaming, production or archiving.
Included items
- Included items:
1x Marshall CV730 PTZ Camera Body
1x IR Remote Control
1x Power Supply Unit (PSU)
1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
Specification
- Specification:
Sensor Type: 1/1.8″ 8.5 Megapixel
Resolution & Frame Rates:
UHD 3840x2160p: 25, 29.97, 30, 50 & 59.94
HD 1920x1080p: 25, 29.97, 30, 50 & 59.94
HD 1280x720p: 25, 29.97, 30, 50 & 59.94
Video Output Connectors: 1x 12G-SDI, 1x HDMI 2.0 & 1x IP Ethernet (RJ45)
Focal Length: 6.5mm to 202mm
Optical Zoom Ratio: 30x
Max. Aperture: f/1.55 to f/2.8
Audio Input: 3.5mm Stereo
Control Protocol: RS-232/RS-422 & VISCA over IP
