PTZ Camera UHD - 30x Zoom Lens - 3G-SDI/HDMI/IP
3840x2160p @ 25 & 29.97 / 1920x1080p @ 25, 29.97, 30, 50 & 59.94 / 1280×720 @ 25, 29.97, 50 & 59.94
Key Features
- 3840×2160 up-to 30p and HD (1920×1080/1280×720) up-to 60p
- Simultaneous 3G-SDI, HDMI & IP Ethernet video outputs
- H.264 & H.265 encoding over IP
- 30x optical zoom (4.6mm-135mm)
- Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
- 3.5mm audio input for external microphone
Product Overview

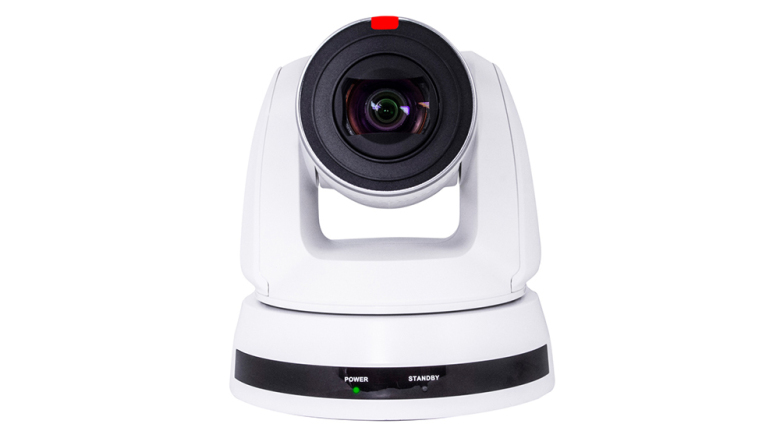

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 25X optical zoom for a versatile networked video solution.
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5″ sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

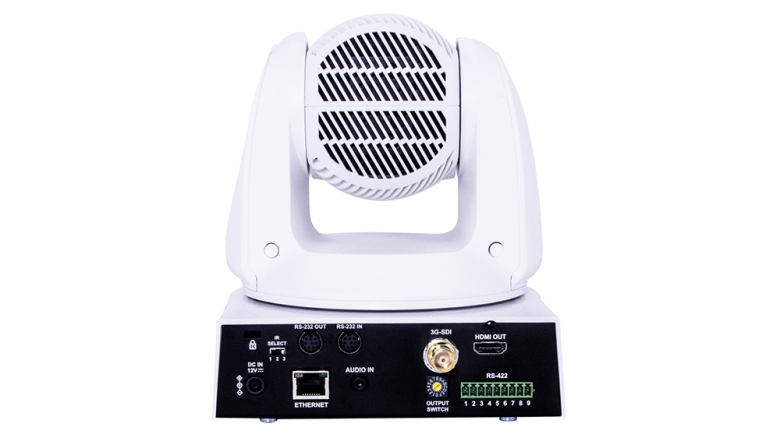

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.
