PTZ Camera UHD - 30x Zoom Lens - 3G-SDI/HDMI/NDI
3840x2160p @ 25 & 29.97 / 1920x1080p @ 25, 29.97, 30, 50 & 59.94 / 1920x1080i @ 50 & 59.94 / 1280×720 @ 25, 29.97, 50 & 59.94
Key Features
3840×2160 up-to 30p
Simultaneous 3G-SDI & HDMI video outputs
IP Ethernet & NDI networked outputs
30x optical zoom (4.6mm to 135mm)(
Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
3.5mm audio input for external microphone
Product Overview

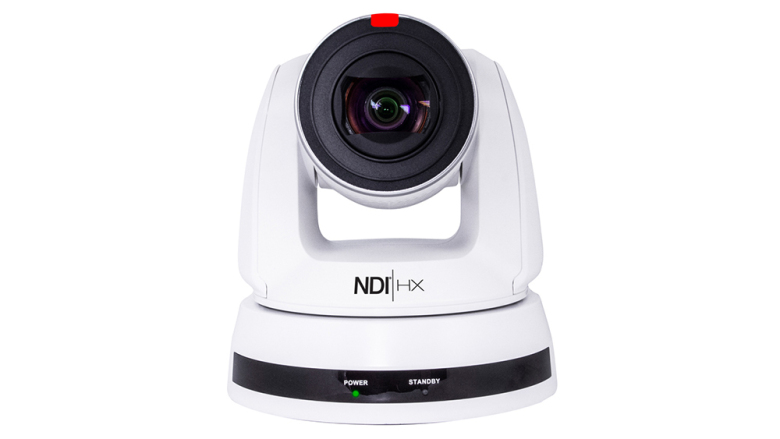

CV630-NDI is Marshall’s entry-level NDI-equipped PTZ camera, capturing sharp UHD video at up-to 30p.
NDI®|HX provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens up the ability to integrate more video devices and applications into your NDI production workflow. Simultaneous 3G-SDI & HDMI outputs allow for integration into traditional non-networked workflows.
CV630-NDI features a professional 8 megapixel UHD sensor combined with smooth & accurate pan, tilt & zoom motors. A 30X optical zoom provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.
CV630-NDI offers easy control over broadcast settings controllable from NDI® Tools such as NDI Studio Monitor and other NDI® Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-NDI is compatible with Marshall’s VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.
