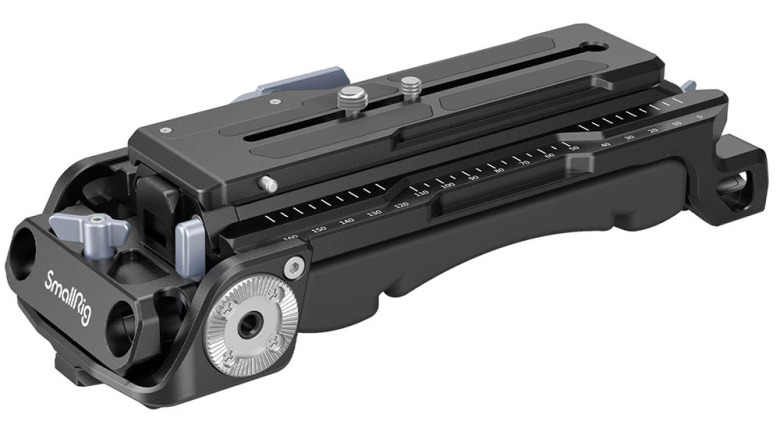

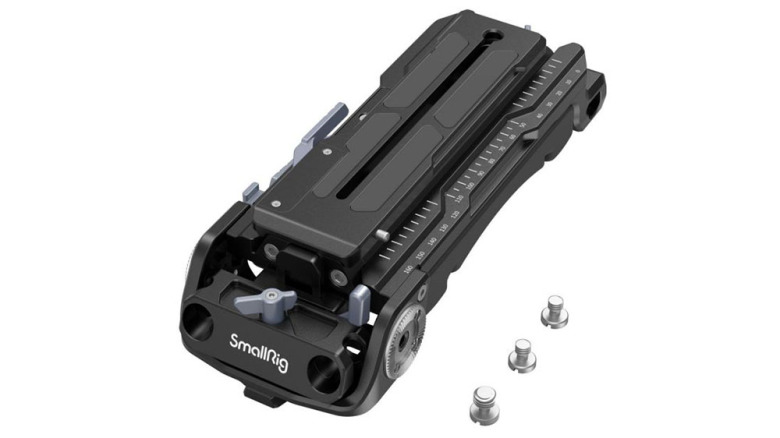

Shoulder Pad Pro

Shoulder Pad Pro

SmallRig Shoulder Pad Pro 2837B is designed for Sony VCT-14 quick release baseplate. It consists of a SmallRig quick release plate on the top that attaches camera, and a Manfrotto 501 quick release plate connecting a shoulder pad. 2837B allows for quick switch between shoulder shooting, handheld shooting, and tripod shooting. It features a standard M6 ARRI rosette mount on both sides, which is compatible with the original control handle of 1810 or FX9 machines, as well as dual rod systems at front and rear ends, 15mm in diameter and 60mm spaced apart. Particularly, the front rod clamp can be adjusted vertically 27mm to ensure 85mm spacing between lens center and rod center for such camera as FX9, FS5, URSA MINI, CANON C300, etc. 2837B also helps balance your camera on your shoulder or rig and install follow focus system and matte box, thanks to the built-in Manfrotto 501 quick release plate sliding 0-80mm forward, and the SmallRig quick release plate sliding 0-120mm backward. You do not have to first remove follow focus system or matte box as the front rod system goes together with the Manfrotto 501 plate. More features of 2837B include 1/4"-20 threaded holes and 3/8"-16 threaded holes in the V-shaped bottom plate, which support various others quick releasee plates and tripods. The item comes with a new silicone shoulder pad, ergonomically designed to human shoulders to feel soft and comfortable. In addition, there is a built-in flat wrench for easy access.
Designers: Tracy Joy, Victor Tang

Note:
Incompatible with Zacuto VCT-14 plate or VCT-U14 plate.

Compatibility:
FS5 / FS5II / FS7 / FS7II / FX9 / FX6
BMPCC4K / 6K
URSA MINI
Canon C100 / C200 / C300 / C500
Panasonic EVA-1

Key Features

- Designed for Sony VCT-14 quick release baseplate
- ARRI rosettes mounts
- 15mm LWS rod systems, 27mm front clamp vertical adjustment
- Manfrotto 501 plate slides 80mm forward
- SmallRig quick release plate slides 120mm backward
- Ergonomic silicone shoulder pad
- Built-in flat wrench
