Side Plate (Blackmagic PYXIS)

Side Plate (Blackmagic PYXIS)

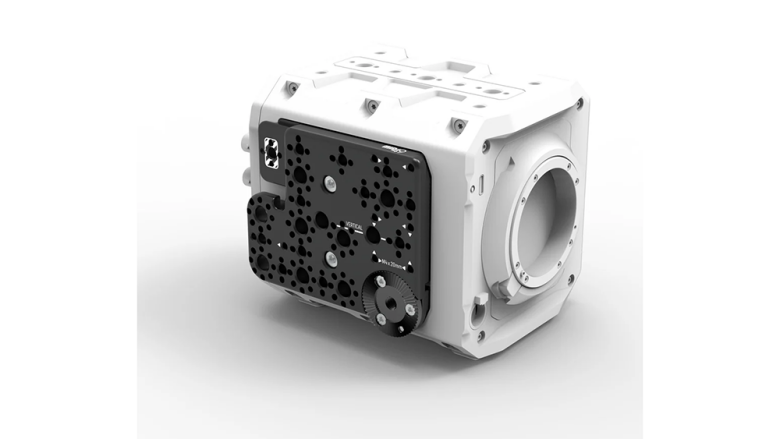

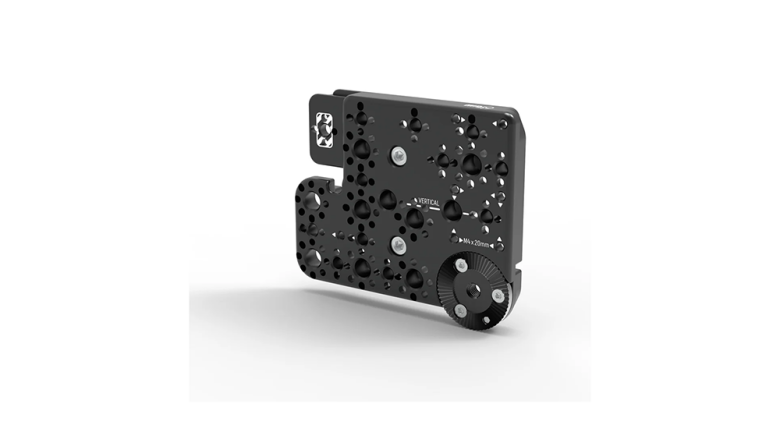

Side Plate (Blackmagic PYXIS) attaches to the side of the camera and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes.
A marked set of 3/8-16 and 1/4-20 holes are on the sensor axis and the plate is the correct thickness to mount the camera vertically on Baseline 15mm LW (Blackmagic PYXIS) and use 15mm rods at the correct lens height.

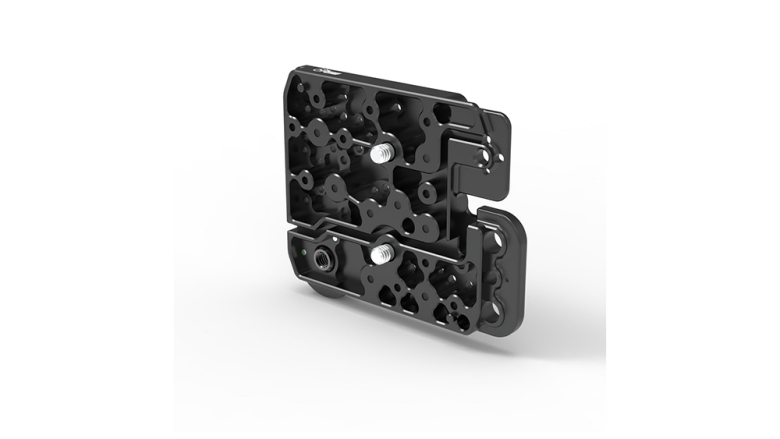

The striped 1/4-20 provides an ideal mounting location for Audio Breakout AB-9 (Blackmagic PYXIS) and recessed cable loops on the back of the side plate allow for clean cable management.
