Sidus One

A DMX Universe In Your Hand

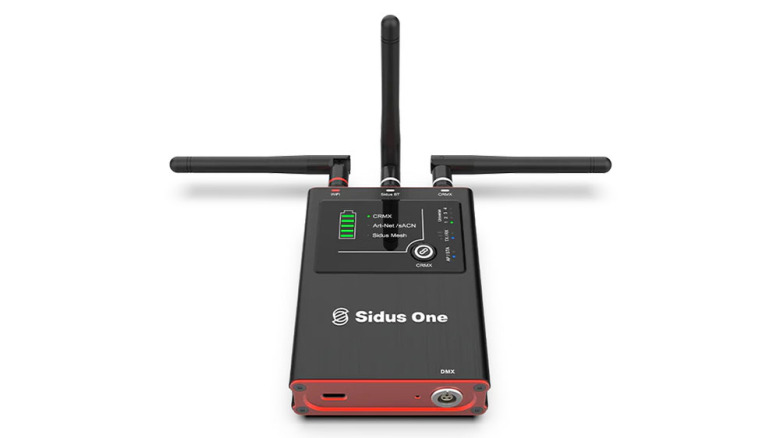

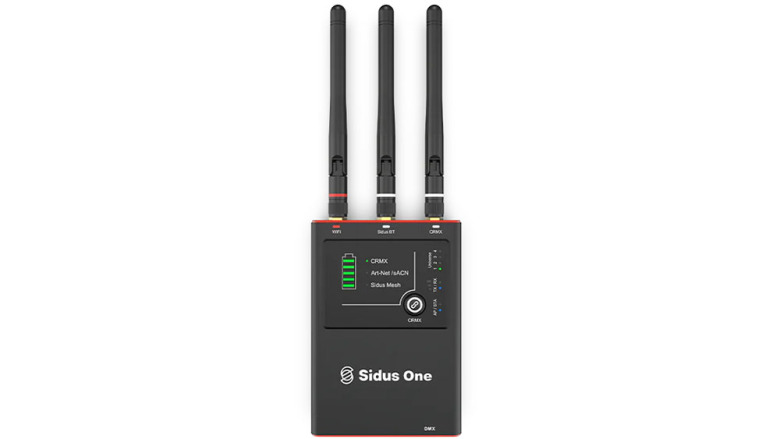

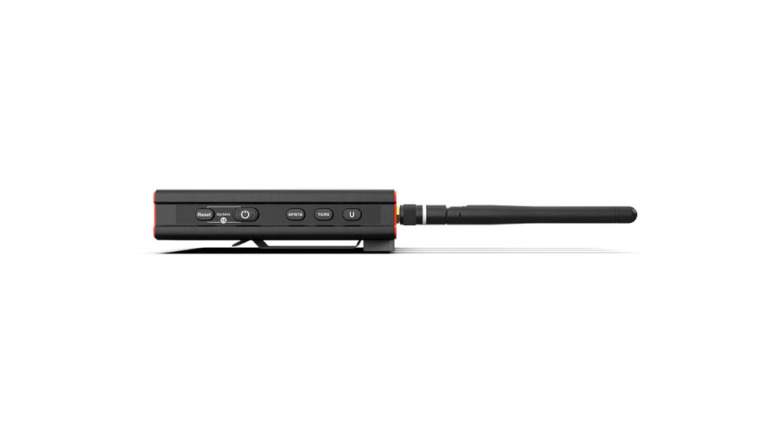

The Aputure Sidus One is a battery-powered single-universe DMX/CRMX transceiver with Sidus Bluetooth that is a wireless intermediary for DMX-compatible light fixtures and control interfaces, such as Sidus Link Pro or DMX consoles.
Further expand the breadth of Sidus Link Pro's control by pairing up to four Sidus One transceivers for up to four universes of DMX.

Transmit or Receive Any Protocol
Combined with its high-output antennas, the Sidus One is a powerful transmitter and receiver for the most prolific lighting protocols. It can act as a CRMX/DMX/Sidus BT transmitter and a Wi-Fi-based sACN/Art-Net Node or CRMX receiver to connect fixtures to your control interface.

1. Wi-Fi Connectivity: When receiving Art-Net or sACN Wi-Fi protocols, the Sidus One can transmit both CRMX and DMX512.
2. Sidus Link Pro: Connect to the Sidus One's Wi-Fi to control lights using DMX512, CRMX, and Sidus BT simultaneously; and control up to 4 Universes by linking 4 Sidus One transceivers.
3. DMX Console: When connecting a console to the Sidus One via DMX, it can transmit CRMX for wireless lighting control.
4. CRMX Receiver: The Sidus One can act as a receiver to convert wireless CRMX data into DMX512 for non-CRMX-compatible lights.
5. Sidus Mesh: Enhance the range and stability of Aputure lights on the Sidus Mesh network by selecting the Sidus One as the master node in the Sidus Link app.

18-Hour Battery Runtime
Sidus One will operate for as long as you are on set and more, using its USB-C rechargeable battery, which has a runtime of 18 hours.

Reliably Weather-Resistant
Made for professional filmmakers and lighting technicians, the Sidus One is also built with a durable IP54 construction, so it can be taken into any filmmaking environment, setting it apart from other products on the market.

Key Features

- Battery-powered single-universe DMX/CRMX transceiver with Sidus Bluetooth. Compatible with CRMX, DMX512, RDM, Art-Net via Wi-Fi, sACN via Wi-Fi, and Sidus Link Bluetooth
- Combine up to 4 Sidus One transceivers to access up to 4 universes of DMX control using Sidus Link Pro
- Wireless range: CRMX: 300m, Sidus BT: 180m, Wi-Fi: 120m
- 18 hours of battery life with USB-C charging
- IP54 dust and water resistant

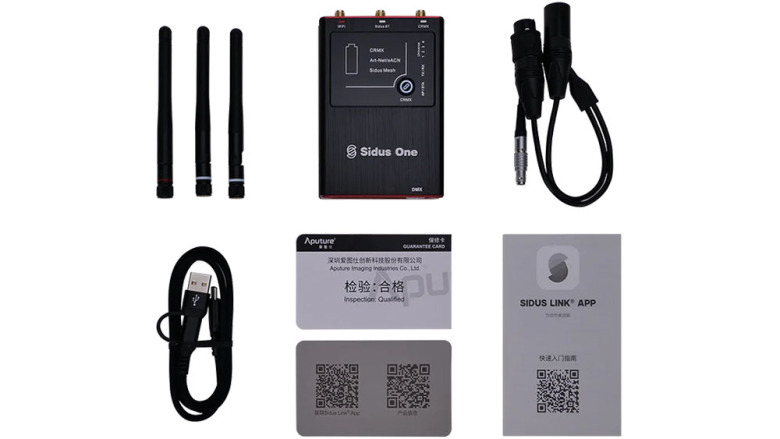

Included items

  • Included items:
    - 1x Sidus One
    - 1x Antenna - CRMX
    - 1x Antenna - Sidus BT
    - 1x Antenna - Wi-Fi
    - 1x USB Type-A to USB Type-C Charging Cable (80cm)
    - 1x Sidus One 2-Way Splitter Cable (35cm)


  • Specification:
    Connectivity:   CRMX, DMX512, RDM, Art-Net via Wifi, sACN via Wifi, Sidus Link Bluetooth
    Universe Support:   1 to 4 Universes
    Operating Frequency, Wi-Fi:   5.8GHz
    Operating Frequency, CRMX / Sidus BT:   2.4GHz
    Wireless Range, Bluetooth:   180m / 591ft
    Wireless Range, Wi-Fi:   120m / 394ft
    Wireless Range, CRMX:   300m / 984 ft
    Wi-Fi Modes:   AP mode/STA mode
    CRMX Mode:   TX mode/RX mode
    Battery Life:   18 hours
    Lithium Polymer Battery:   3.7V 5600mAh
    Charging Input:   USB Type-C (5V/2A)
    Charge Time:   3.5h
    IP Rating:   IP54
    Operating Temperature:   -20degr.C to 45degr.C / -4degr.F to 113degr.F
    Firmware Upgradeable:   Sidus BT, USB-C
    Cooling Method:   Passive Cooling
    Dimensions (excluding antenna):   11.3 x 7.5 x 2.33cm
