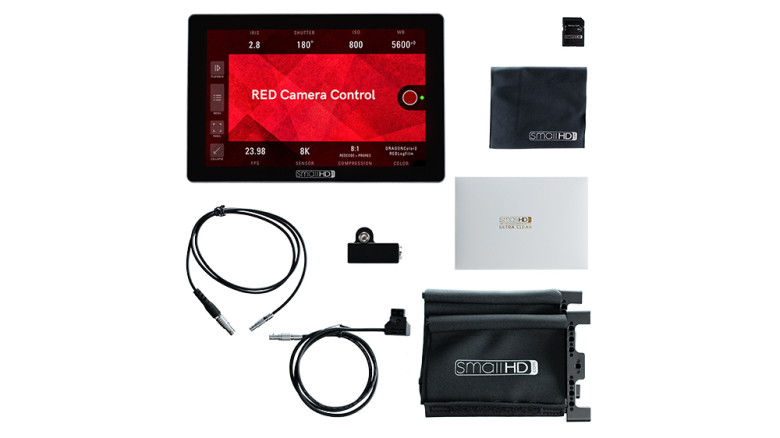

SmallHD Cine 7 Red Kit

SmallHD
Partno: SHD-MON-CINE7-RED
Stock status: Ships in 4-8 days
SEK 29233   Excl. VAT (moms)
SEK 36541   Incl. VAT (moms)

Description

SmallHD Cine 7

Full HD 7-inch Touchscreen Monitor with DCI-P3 Color and 1800 nits brightness

Professional and expandable on-camera monitor.

Available in several setups with ARRI and RED camera control, with or without built in Teradek Bolt 500 rransmitter or receiver.

Display: 7-inch, 1920X1200
Brightness: 1800 nits
HDMI: 1x HDMI In, 1x HDMI Out
SDI: 1x 3G SDI In, 1x 3G SDI In/Out
Audio: ⅛” Headphone Jack
Power: Barrel Power Input (10V-34V, 2A DC)

Included items

Specification

  • Specification:
    Display
    Panel Type: IPS LCD
    Size Diagonal: 7,02"
    Resolution: 1920x1200
    Pixel Density (PPI): 322
    Aspect Ratio: 16:10
    Contrast: 1000:1
    Color Gamut: 100% DCI-P3 Coverage
    Color Depth: 8-b Panel with 10-b Scopes
    Viewing Angle: 8-b Panel with 10-b Scopes
    Backlight Type: LED
    Adjustable Backlight: Yes

    Input Signal Types/Formats
    • 3G-SDI: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
    • HD-SDI: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    • SD-SDI: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
    • HDMI: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
    • Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

    Output Signal Types/Formats
    • 3G-SDI: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
    • HD-SDI: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    • SD-SDI: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
    • HDMI: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
    • Audio: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

    Wireless (if applicable)
    Video Inputs: 1x
    Delay Tx To Rx: < 1mSec (0.001 sec)
    Supported Resolutions: 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50
    Video Compression: Visually lossless
    Audio Compression: 48 kHz 24-bit PCM
    Wireless Network: 5GHz
    RF Channel Selection: AFS (Automatic frequency selection)
    Encryption: AES-128
    Range: Upto 500 line of sight (or 500 LoS)
    Noise Rejection: Can coexist with WiFi and 5 Ghz cordless phones

    Connector Type
    SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
    HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
    Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
    Power In: 2-pin Locking
    USB: 1x USB 2,0 Micro-B receptacle

    Controls
    Primary Control Interface: Touch Screen
    Record/Capture: Capture Tool

    Power
    Connector Type: Lemo
    Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6,0V minimum to 16,8V max
    Recommended Power Supply: Recommend DC 12~15V at ~2,5 amp or greater
    Overload Protection: DC input: Reverse polarity
    Battery Types: L-Series (V Mount and Gold Mount is optional)
    Battery Chemistry: Li-ion
    Battery Charging Time (hours): Monitor does not support the charging of batteries

    Environmental
    Compliance: FCC, IC, CE, RoHS
    Operating Temperature: -1 to 38°C
    Storage Temperature: -17 to 48°C
    Height: 13,92 cm
    Width: 3,35 cm
    Depth/Length: 18,01 cm
    Weight (Packaged): 1587,57 g
    Mount Points: Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

    Software
    Pixel Zoom (type): 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
    Frame Guides: Preset Aspect Ratios & Customizable
    DSLR Scale: Canon 5DMkii & Canon 7D
    Custom Scale: Yes (Underscan Only)
    Anamorphic De-Squeeze: 0,75x, 1,33x, 1,5x, 1,66x, 2,0x, 2,5x
    Image Rotate(Manual/Automatic): Automatic or Manual Control
    Image Flip (Manual/Automatic): Automatic or Manual Control
    Cross Conversion: Yes: HDMI -> SDI & SDI -> HDMI
    Focus Assist (Colors): User Adjustable Color Style and Intensity
    Peaking: User Adjustable Intensity
    False Color: Rainbow, Arri Style, Custom with up to 10 nodes
    Zebra: Dual - User Configurable
    Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
    Vectorscope: Yes
    RGB Parade: Fully User Customizable
    Histogram: Luma & RGB Style
    Image Capture: Yes
    Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
    LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
    LUT Import: via SD Card or USB Storage Device
    Image Overlay: With Opacity Slider and Blink Setting
    Audio Meters: HDMI & SDI up to 8 channel
