SWIT BM-215-NDI 21.5in FHD Monitor NDI/3G-SDI/HDMI QLED HDR
Description
SWIT BM-215-NDI 21.5in FHD Monitor NDI/3G-SDI/HDMI QLED HDR
21.5-inch QLED WCG Panel
FHD, 100% DCI-P3 Coverage
BM-215-NDI monitor adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, H/V 178degr. viewing angle for professional NDI broadcast productions.
Key Features
- 21.5-inch 1920×1080 QLED Panel
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting Panel
- High bandwidth 4K NDI monitoring
- 3GSDI 2-in 1-loop, HDMI2.0 input
- NDI decode to 3GSDI output
- NDI/SDI/HDMI PBP or PIP view
- Auto detect and quick select NDI sources
- Support NDI Discover Server
- Support NDI Low bandwidth mode
- Rec 709 / DCI-P3 / Rec 2020 color gamut selection
- 3DLUT Auto Self-calibration without PC
- Built-in Delog LUTs and User LUTs upload by USB
- Waveform / Vector / Histogram
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous pattern
- IP webserver remote control (Future update)
- AC, DC and battery plate power
Included items
- Included items:
- BM-215-NDI 21.5-inch Professional NDI Monitor
Specification
- Specification:

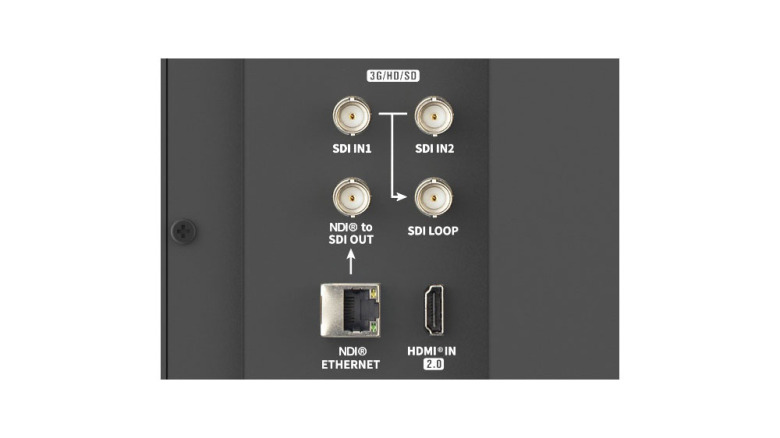

Size: 21.5 inches Display area: 495.6×292.2mm Resolution: 1920×1080 Aspect ratio: 16:9 Brightness: 400nits Contrast: 3000:1 Color Gamut: 100% DCI-P3 Color depth: 10bit (8+2FRC) Eye Protect: VICO 1.97 Viewing angle: 178degr.(H) /178degr.(V) Input RJ45 ×1: High bandwidth 4K NDI BNC ×2: 3G/HD/SD-SDI input HDMI ×1: HDMI 2.0 input RS485 ×1: TSL 3.1/4.0 UMD input RS485 ×1: GPI (Tally) input Output BNC ×1: 3G/HD/SD-SDI loop output BNC×1: NDI decoded to SDI output RS485 ×1: TSL 3.1/4.0 UMD output Analog audio: 3.5mm headphone and speaker
