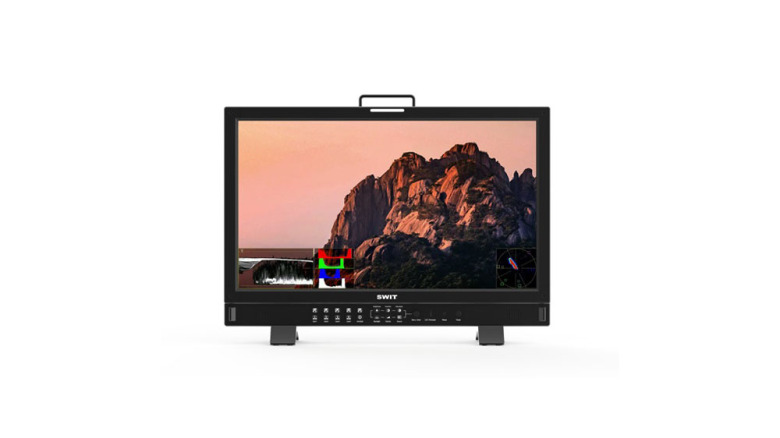

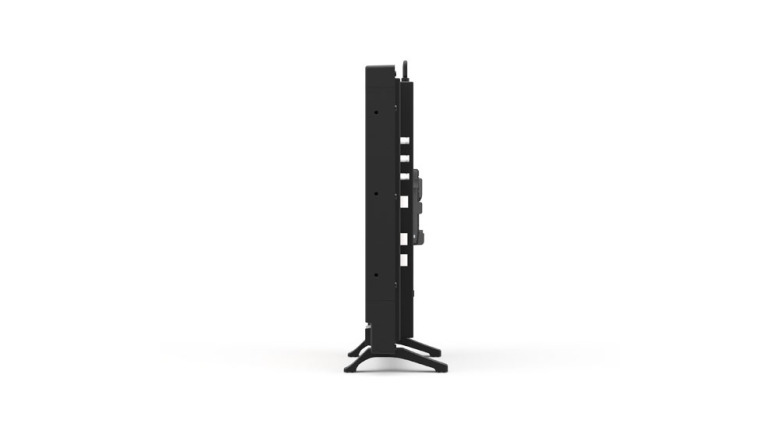

SWIT BM-H245 23.8in FHD Monitor 12G/3G/HDMI QLED HDR
Description
SWIT BM-H245 23.8in FHD Monitor 12G/3G/HDMI QLED HDR
23.8-inch QLED WCG Panel
FHD, 100% DCI-P3 Coverage
BM-H245 adopts a 23.8-inch1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, 1000:1 contrast, H/V 178degr. viewing angle for broadcast and film productions.?
Key Features
- 23.8-inch 1920×1080 QLED Panel
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12G-SDI, 4x3G-SDI, HDMI2.0 4K input
- 4-ch SDI/HDMI mixed multiview
- 2-ch SDI/HDMI PBP or PIP view
- Multi Color Gamut & HDR/SDR Viewing
- Payload ID auto setting
- 18-bit internal color processing
- Audio/Video Zero latency for lip-sync
- 3DLUT Auto Self-calibration without PC
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram / Eye pattern
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous pattern
- 5.1 & 7.1 surround sound phase pattern
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade
Included items
- Included items:
- BM-H245 23.8-inch 4K Input Ready Production Monitor
Specification
- Specification:

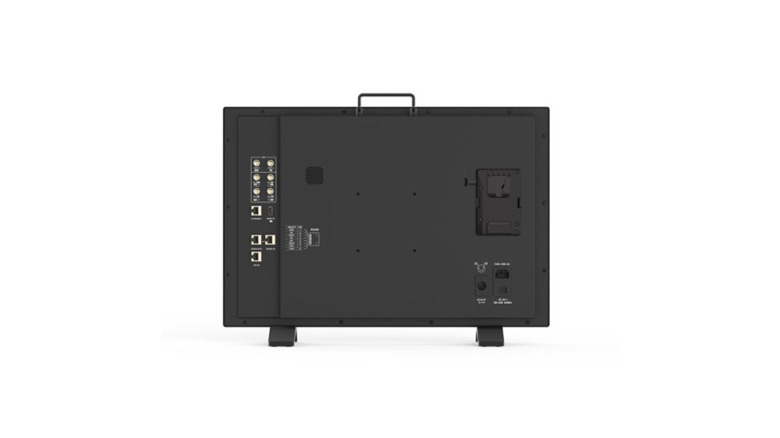

Size: 23.8 inches Display area: 527.04×296.46mm Resolution: 1920×1080 Aspect ratio: 16:9 Brightness: 400nits Contrast: 1000:1 Color depth: 10bit (8+2FRC) Signal process: 18-bit Viewing angle: 178degr.(H) /178degr.(V) Input BNC ×1: 12G/6G/3G/HD/SD-SDI input BNC ×3: 3G/HD/SD-SDI input HDMI ×1: HDMI 2.0 input RS485 ×1: TSL 3.1/4.0 UMD input RS485 ×1: GPI (Tally) input RJ45 ×1: 1000M Ethernet input for Webserver IP control Output BNC ×1: 12G/6G/3G/HD/SD-SDI loop output BNC×1: 3G/HD/SD-SDI input RS485 ×1: TSL 3.1/4.0 UMD output Analog audio: 3.5mm headphone and speaker
