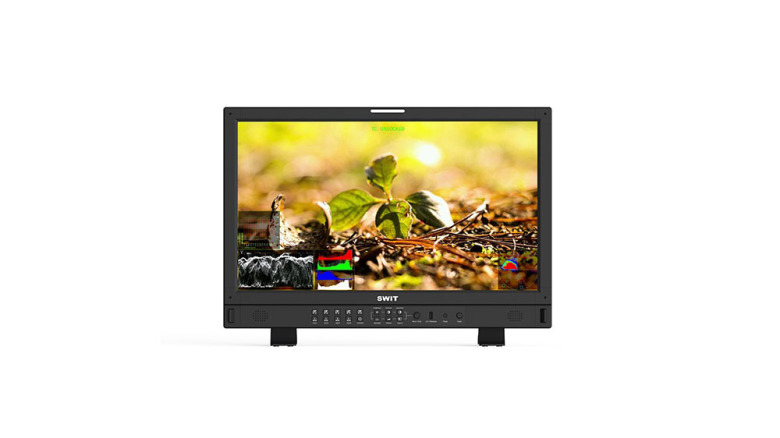

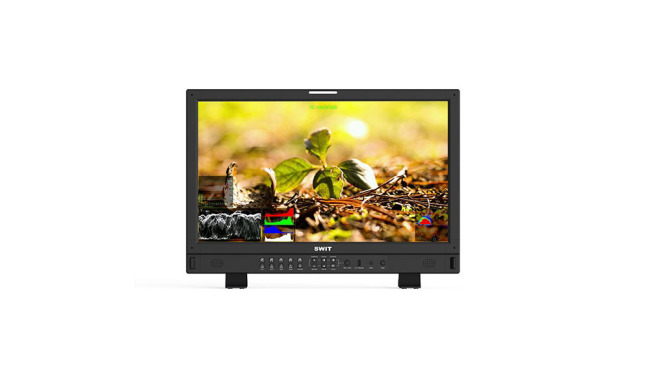

SWIT BM-U245HDR 23.8in 4K/8K 12GSDI HDR Studio Monitor
Description
SWIT BM-U245HDR 23.8in 4K/8K 12GSDI HDR Studio Monitor
23.8-inch 1000nits 4K
UHD panel, 89% REC2020
BM-U245HDR adopts a 23.8-inch 10-bit LCD
panel, UHD 3840×2160 resolution, 1000nits LED
backlight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec2020 color gamut. The viewing angle is H178degr. / V178degr..?
Key Features
- 23.8-inch LCD Panel, 3840×2160 resolution
- 1000nits high bright LED backlight
- HLG/PQ/S-log3 HDR, Payload ID auto setting
- 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
- 12GSDI via SFP Fiber input (Optional)
- ST2110 IP via SFP Fiber input (Optional)
- SFP Fiber 12G input converted to 12GSDI out
- 3DLUT Auto Self-calibration without PC
- Audio/Video 0 latency for lip-sync
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade
Included items
- Included items:
- BM-U245HDR 23.8-inch 4K/8K 12GSDI HDR Studio Monitor
Specification
- Specification:

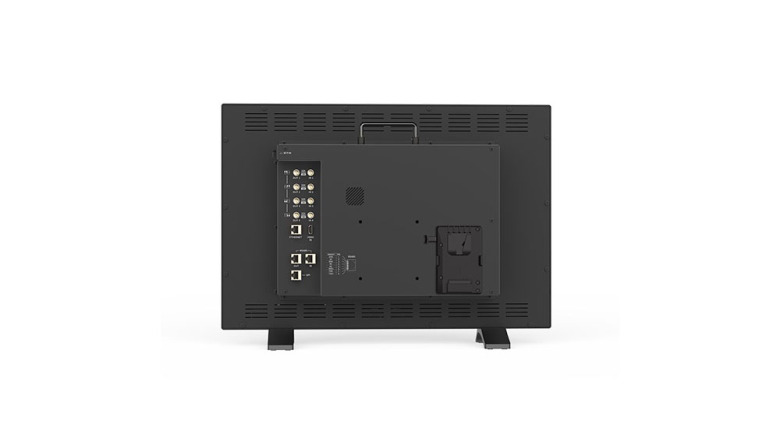

Size: 23.8 inches Display area: 527.04×296.46mm Resolution: 3840×2160 Aspect ratio: 16:9 Brightness: 1000nits Contrast: 1000:1 Color depth: 1.073G colors, 10-bit Signal process: 18-bit Viewing angle: 178degr.(H) /178degr.(V) Input BNC ×4: 12G/6G/3G/HD/SD-SDI input HDMI ×1: HDMI 2.0 input SFP ×1: Optical Fiber input (By optional SFP adaptor) RS485 ×1: TSL 3.1/4.0 UMD input RS485 ×1: GPI (Tally) input RJ45 ×1: 1000M Ethernet input for Webserver IP control Output BNC ×4: 12G/6G/3G/HD/SD-SDI loop output RS485 ×1: TSL 3.1/4.0 UMD output Analog audio: 3.5mm headphone and speaker
