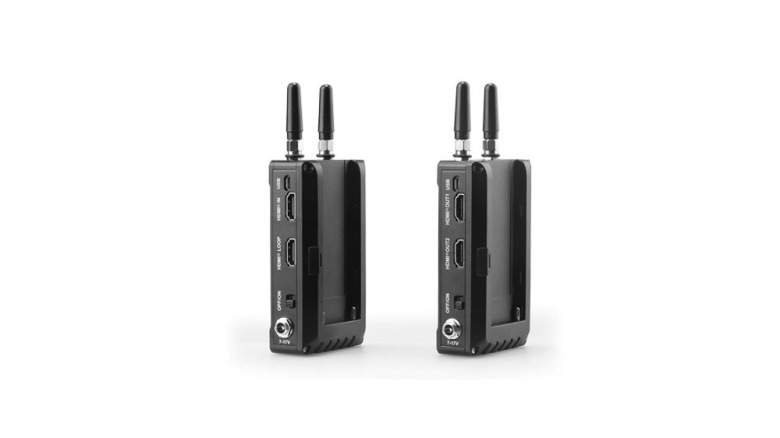

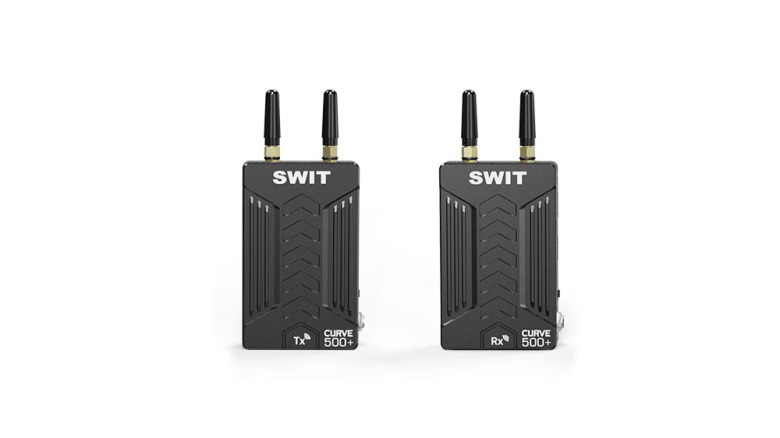

SWIT CURVE500+ HDMI 500ft/150m Wireless with USB capture

Swit
Partno: SWT-CURVE500+
Stock status: Ships in 5-8 days
SEK 6609   Excl. VAT (moms)
SEK 8261   Incl. VAT (moms)

Description

SWIT CURVE500+ HDMI 500ft/150m Wireless with USB capture

Wireless HDMI Transmission
New Update with USB Video Capture

CURVE500+ wireless system is based on SWIT KUWI wireless video technology, NOT WIFI, 5.1-5.9GHz license free, DFS comply, supports HDMI 1080p60 transmit 500 feet (150 meters) Line-of-Sight distance.

As the updated version, CURVE500+ support USB video capture output to computer for live streaming.

Key Features

- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- HDMI input and loop output
- USB Video Capture output for PC/Mac
- 500ft/150m (Line-of-Sight) distance
- Strong Wall-Cross Performance
- 2-ch HDMI audio transmission
- Auto detecting wireless environment and switching
- Support 7 pairs working in one location
- Wireless protocol & content double encryption

Included items

  • Included items:
    - CURVE500+ 1x Transmitter 1x Receiver
    - D-tap to lockable Pole-tap cable x2
    - AC-DC Adaptor
    - Micro USB to USB-A cable

Specification

  • Specification:
    Input / Output
    Transmitter:   HDMI 1.3 input ×1, HDMI 1.3 loop output x1
    Receiver:   HDMI 1.3 Primary output ×1, HDMI 1.3 Secondary output x1, Micro USB video capture output x1
    Video Formats
    HDMI:   1080p60, 1080p59.94, 1080p50, 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24, 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50
    USB:   1080p60, 1080p59.94, 1080p50, 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 720p60, 720p59.94, 720p50
    Wireless
    Frequency:   5.17GHz-5.69GHz and 5.75GHz-5.83GHz
    RF Modules:   OFDM 16QAM, 64QAM, QPSK, BPSK
    RF Power:   50mW
    Transmission Distance:   500 feet / 150 meters (Line of sight)
    General
    Input voltage
    Transmitter:   DC 7-17V
    Receiver:   DC 7-17V
    Power Consumption
    Transmitter 7.5W
    Receiver 7W
    Dimension(w/o antenna)
    Transmitter:   114.18×69.55×28 (mm)
    Receiver:   114.18×69.55×28 (mm)
    Net weight
    Transmitter:   180.8g
    Receiver:   181.2g; With package 1.05kg
    Working Temperature:   0degr.C -+40degr.C
