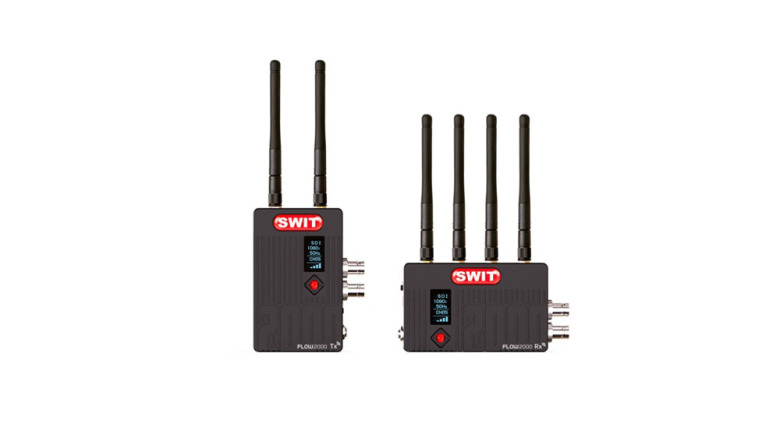

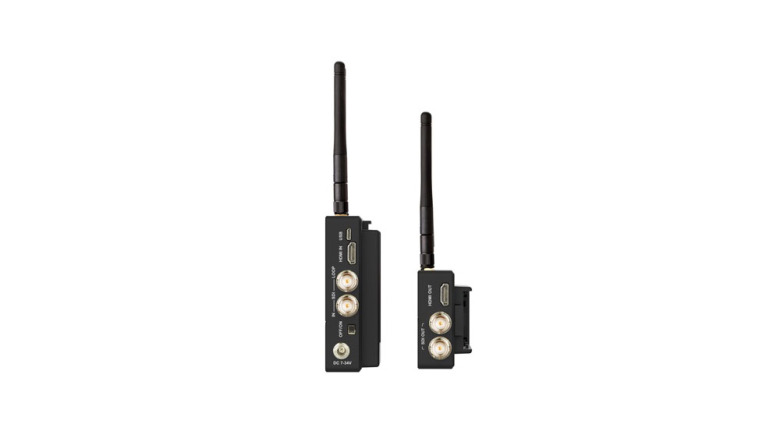

SWIT FLOW2000 SDI&HDMI 2000ft/600m Wireless System

Partno: SWT-FLOW2000
Stock status: Ships in 5-8 days
SEK 24651

Description

SWIT FLOW2000 SDI&HDMI 2000ft/600m Wireless System

KUWI Wireless Technology
SDI&HDMI 2000ft / 600m (LOS)

FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 2000 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director moni- toring, drone, ropeway camera, steadicam etc.

Key Features

- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI & HDMI, with 3GSDI loop out
- 2000ft/600m (Line-of-Sight) distance
- 32ms stable low latency
- Strong Wall-Cross Performance
- 2-ch SDI/HDMI audio transmission
- OLED info and channel switching
- Support up to 22 pairs working in one location
- Multicast - 1 transmitter to unlimited receivers
- Wireless protocol & content double encryption
- Reclock and accurate color reproduction

Included items

  • Included items:
    - AC-DC adaptor (3 meters)
    - FLOW2000 1x Transmitter 1x Receiver
    - D-tap to lockable Pole-tap cable
    - Cold shoe and 1/4" Arm Trestle
    - Carrying case

Specification

  • Specification:
    Input / Output
    Transmitter:   3G/HD-SDI input×1, loop output ×1, HDMI 1.3 input×1
    Receiver:   3G/HD-SDI output×2, HDMI 1.3 output ×1
    Video Formats
    SDI:   1080p60, 1080p59.94, 1080p50, 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24, 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50
    HDMI:   1080p60, 1080p59.94, 1080p50, 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24, 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50
    Wireless
    Frequency:   5.17GHz-5.69GHz and 5.75GHz-5.83GHz
    RF Modules:   OFDM 16QAM, 64QAM, QPSK, BPSK
    RF Power:   128mW
    Transmission Distance:   2000 feet / 600 meters (Line of sight)
    General
    Input voltage
    Transmitter:   DC 7-34V
    Receiver:   DC 7-34V
    Power Consumption
    Transmitter:   8W
    Receiver:   8W
    Dimension(w/o antenna)
    Transmitter:   66×106.5×24.7 (mm)
    Receiver:   106.5×66×24.7 (mm)
    Net weight
    Transmitter:   236g
    Receiver:   245g; With package 2.6kg
    Working Temperature:   0degr.C -+40degr.C
