SWIT FLOW6500 SDI&HDMI 6500ft/2km Wireless System

Swit
Partno: SWT-FLOW6500
Stock status: Ships in 5-8 days
SEK 65234

Description

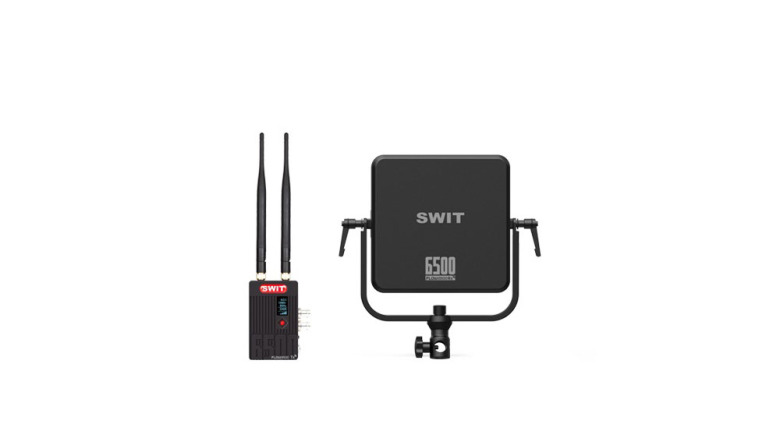

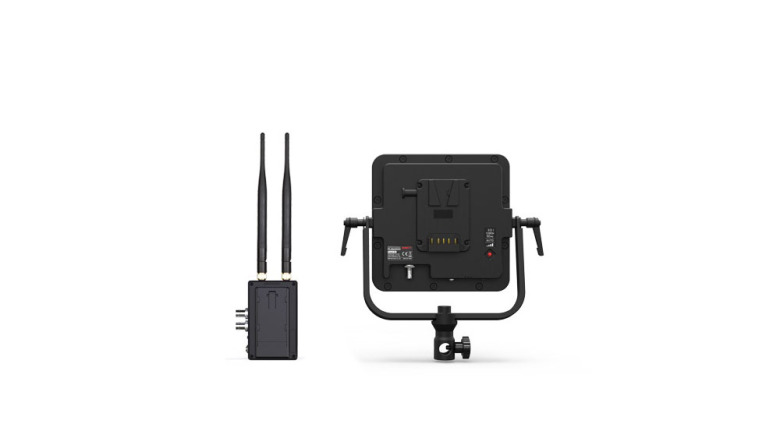

SWIT FLOW6500 SDI&HDMI 6500ft/2km Wireless System

KUWI Wireless Technology
SDI&HDMI 6500ft / 2km long distance

FLOW6500 wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 6500ft / 2km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.

Key Features

- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI &HDMI, with 3GSDI loop out

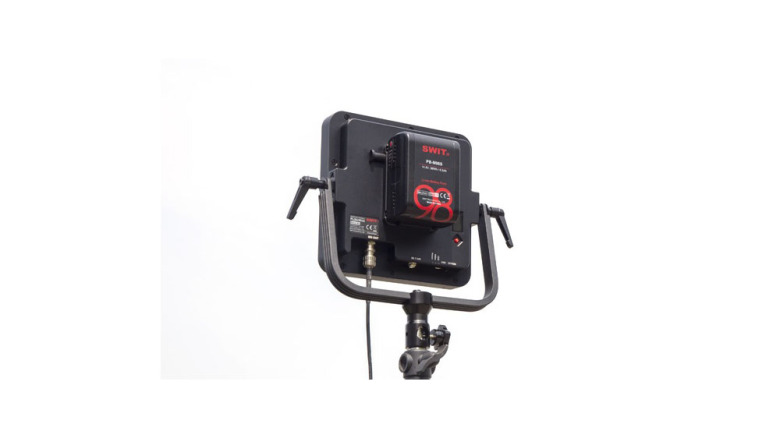

- High gain panel antenna with built-in receiver
- 6500ft/2km (Line-of-Sight) distance
- 32ms stable low latency
- Strong Wall-Cross Performance
- 2-ch SDI/HDMI audio transmission
- OLED info and channel switching
- Support up to 22 pairs working in one location
- Multicast - 1 transmitter to unlimited receivers
- Wireless protocol & content double encryption
- Reclock and accurate color reproduction

Included items

  • Included items:
    - Carrying case
    - AC-DC adaptor (3 meters)
    - D-tap to lockable Pole-tap cable
    - Cold shoe and 1/4" Arm Trestle
    - FLOW6500 1x Transmitter 1x Receiver

Specification

  • Specification:
    Input / Output
    Transmitter:   3G/HD-SDI input×1, loop output ×1, HDMI 1.3 input×1
    Receiver:   3G/HD-SDI output×1
    Video Formats
    SDI:   1080p60, 1080p59.94, 1080p50, 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24, 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50
    HDMI:   1080p60, 1080p59.94, 1080p50, 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24, 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50
    Wireless
    Frequency:   5.17GHz-5.69GHz and 5.75GHz-5.83GHz
    RF Modules:   OFDM 16QAM, 64QAM, QPSK, BPSK
    RF Power:   128mW
    Transmission Distance:   6500 feet / 2000 meters (Line of sight)
    General
    Input voltage
    Transmitter:   DC 7-34V
    Reveiver:   DC 7-34V
    Power Consumption
    Transmitter:   9W
    Reveiver:   9W
    Dimension(w/o antenna)
    Transmitter:   66×106.5×24.7 (mm)
    Reveiver:   190×190×46 (mm)
    Net weight
    Transmitter:   286g
    Receiver:   1500g; With package 6.85kg
    Working Temperature:   0degr.C -+40degr.C
