SWIT FM-215HDR 21.5 inch 1000nits 12G-SDI HDR Field Monitor

SWIT FM-215HDR 21.5 inch 1000nits 12G-SDI HDR Field Monitor

21.5" Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.

1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot LED (QLED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.

All 4K Input Interfaces
FM-215HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 3G-SDI Quadlink 4K input
- HDMI 2.0 4K input

Multiview Display Mode

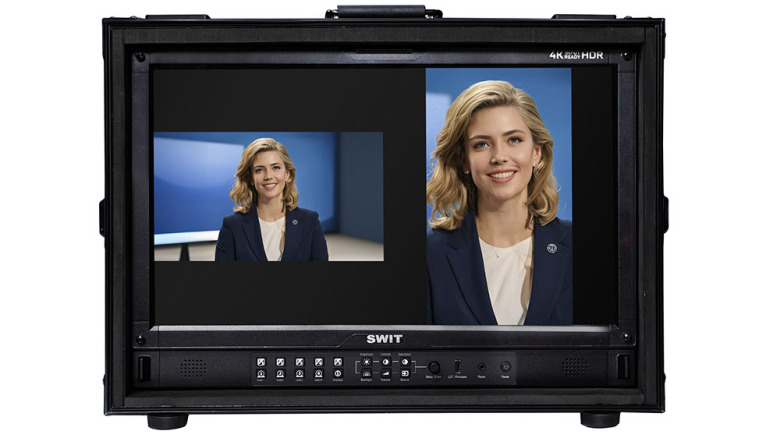

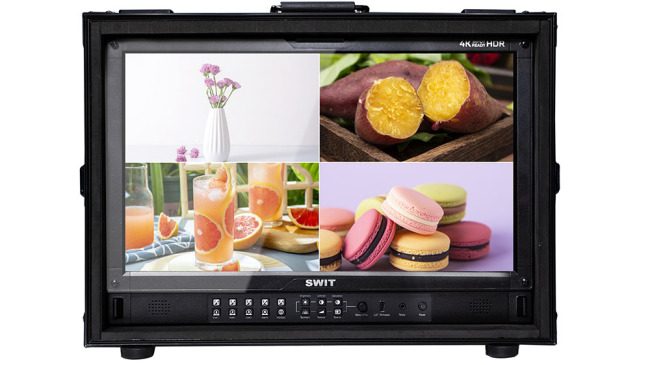

Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

Multiple Video Analysis Patterns
- Waveform Y/Cb/Cr/R/G/B with Nits mark
- Vector scope
- Red/Blue Peaking focus assist
- R/G/B/Mono mode
- Single line waveform
- R/G/B/Y Histogram
- Over exposure zebra stripes
- False color

Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.

Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

2× Top Cheese Boards

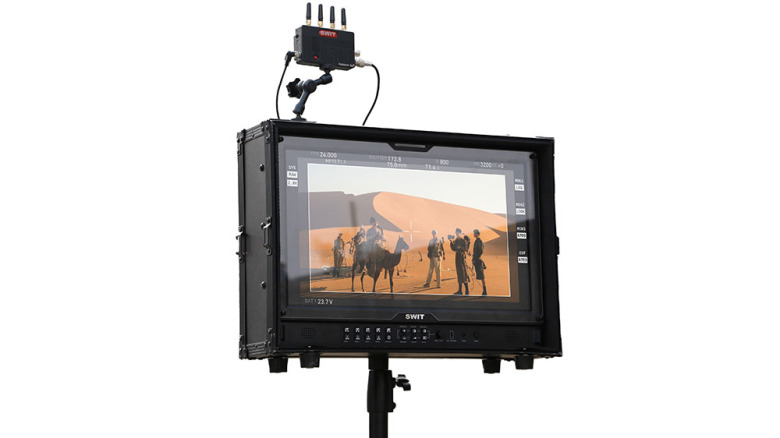

On the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4" and 3/8" screw threads.

Optional VESA to C-stand Bracket

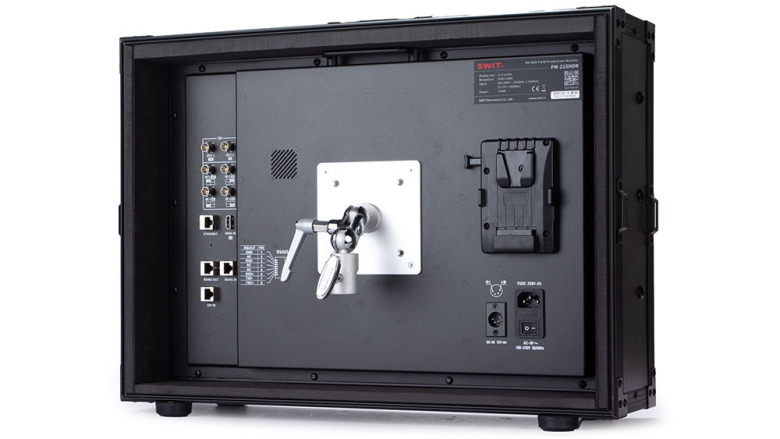

The monitor has standard 10×10 VESA mount, and provides VESA to 5/8" baby-pin C-stand / Light stand adaptor bracket. (Optional purchased accessory)

Key Features

- 21.5-inch 1920×1080 QLED Panel
- 1000nits high bright HDR
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12G-SDI, 4x3G-SDI, HDMI2.0 4K input
- 4-ch SDI/HDMI mixed multiview
- 2-ch SDI/HDMI PBP or PIP view
- Multi Color Gamut & HDR/SDR Viewing
- Payload ID auto setting
- 18-bit internal color processing
- Audio/Video Zero latency
- 3DLUT Auto Self-calibration without PC
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram / Eye pattern
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous pattern
- 5.1 & 7.1 surround sound phase pattern
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade
