Description

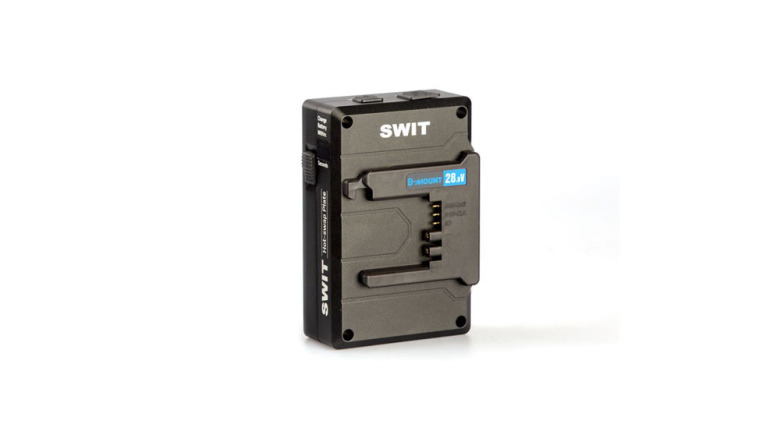

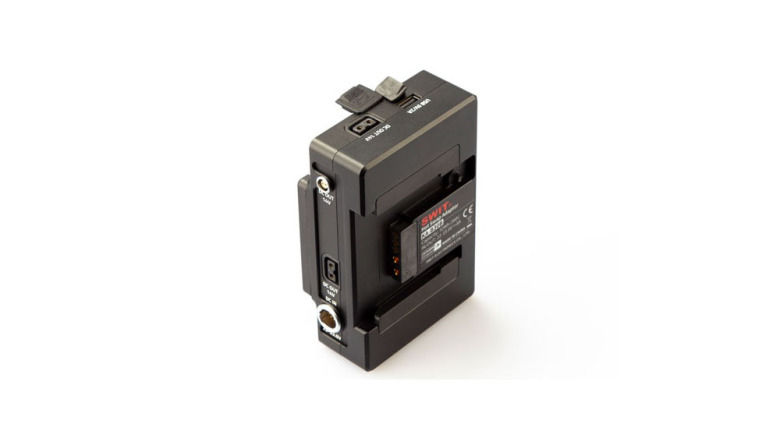

SWIT KA-B30B B-mount 28V to B-mount Hotswap Plate
B-mount Hot-swap Plate
KA-B30B is a B-mount extended plate with battery cells inside, and when you changing battery, the plate will take over the power supply until a new battery is mounted on. So you don t need to switch off the cameras with this hot-swap plate.
Key Features
- 22-33.6V B-mount battery hotswap
- 28V, 32Wh 3Ah battery cells inside
- 200W constant high load
- At least 2 minutes run time
- 120 seconds countdown display
- 2x D-tap regulated 14V output
- 1x 2-pin LEMO regulated 14V output
- USB 5V/2A x1 power output
- 22-33.6V 8-pin input for power station hotswap
- Aluminum CNC unibody housing
- Multiple circuit protections
Included items
- Included items:
- KA-B30B B-mount to B-mount Hotswap Plate
Specification
- Specification:
Inner battery voltage: 28V regulated Inner battery capacity: 32Wh/3Ah Power load: 200W constant high load B-mount power out: Attach battery - 22-33.6V to camera, Remove battery - 28V / 200W to camera D-tap output x2: 14V regulated, 70W 2-pin LEMO output: 14V regulated, 70W USB-A output: 5V, 10W/2A 8-pin LEMO input: 22-33.6V Dimensions: 93×143×50.2mm Net weight: Net 749.6g; With package0.9kg
