SWIT KA-R30B B-mount Hotswap Plate for MINI / MINI LF

Swit
Partno: SWT-KA-R30B
Stock status: Ships in 5-8 days
SEK 8918

Description

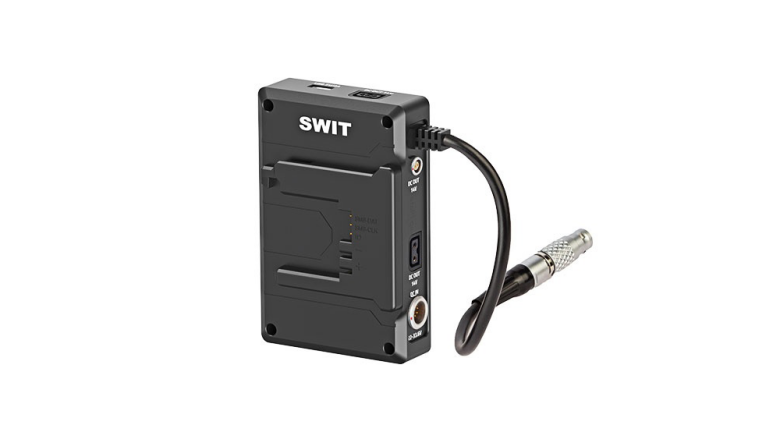

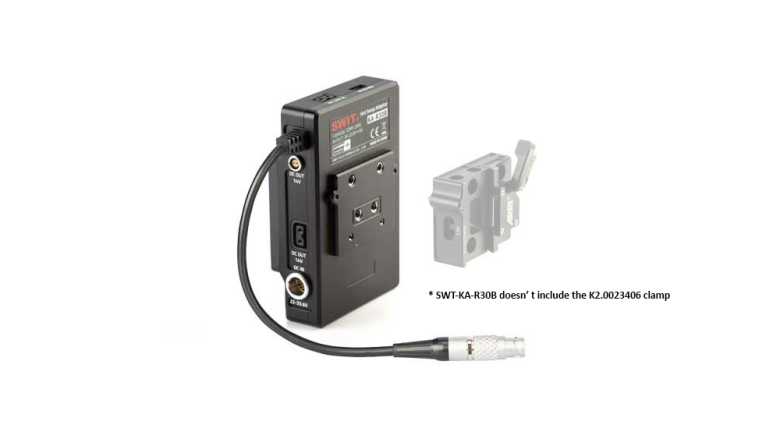

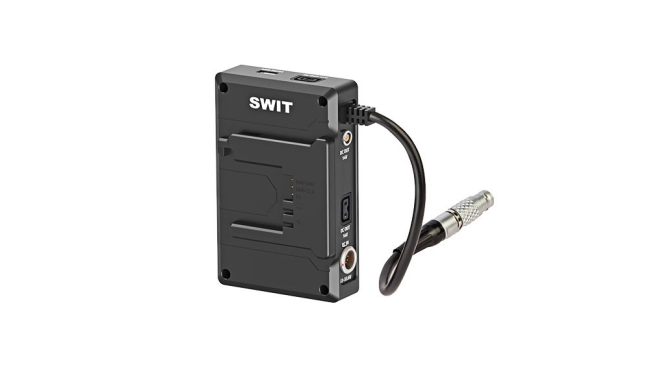

SWIT KA-R30B B-mount Hotswap Plate for MINI / MINI LF

KA-R30B is a B-mount hot-swap plate for ARRI Alexa MINI / MINI LF install, power cameras at 28.8V (22-33.6V) by 8-pin DC-IN. When remove the B-mount battery, 8-pin DC output Reg. 28V for hotswapping. You don’ t need to switch off the camera when changing battery.

Key Features

- Dedicated for Alexa MINI / MINI LF install
- B-mount battery attach
- 8-pin LEMO output to camera
- 28V, 32Wh 3Ah battery cells inside
- 200W constant high load
- At least 2 minutes run time
- 120 seconds countdown display
- 2x D-tap regulated 14V output
- 1x 2-pin LEMO regulated 14V output
- USB 5V/2A x1 power output
- 22-33.6V 8-pin input for power station hotswap
- Aluminum CNC unibody housing
- Multiple circuit protections

Included items

  • Included items:
    - KA-R30B B-mount Hotswap Plate

Specification

  • Specification:
    Inner battery voltage:   28V regulated
    Inner battery capacity:   32Wh/3Ah
    Power load:   200W constant high load
    8-pin LEMO output:   Attach battery: 22-33.6V to camera, Remove battery: 28V / 200W to camera
    D-tap output x2:   14V regulated, 70W
    2-pin LEMO output:   14V regulated, 70W
    USB-A output:   5V, 10W/2A
    8-pin LEMO input:   22-33.6V
    Dimensions:   93×143×43.5mm
    Weight:   730.5g
