SWIT MATRIX-S8 8ch Ultra fast 14/28V V-Mount Wall Charger
8x100W Ultra Fast Wall Charger
MATRIX-S8 is an 8-ch simultaneous V-mount wall charger with 100W ultra fast charging speed each channel, save up to 60% charging time comparing to normal chargers, supports both 14.4V and 28.8V batteries, for TV stations and rental houses installation.
Key Features
- 8-ch simultaneous fast charging
- Charge both 14.4V and 28.8V V-mount batteries
- 100W/6A for SWIT 14.4V & +160Wh batteries
- 100W/3A for SWIT 28.8V & +160Wh batteries
- 50W/3A for other batteries

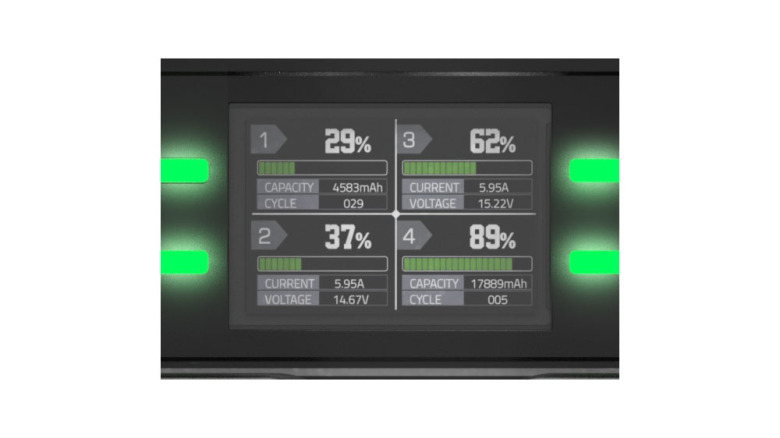

- 2× 3.5-inch color LCD info display
- Battery cycle times display
- Large LED charging indicators

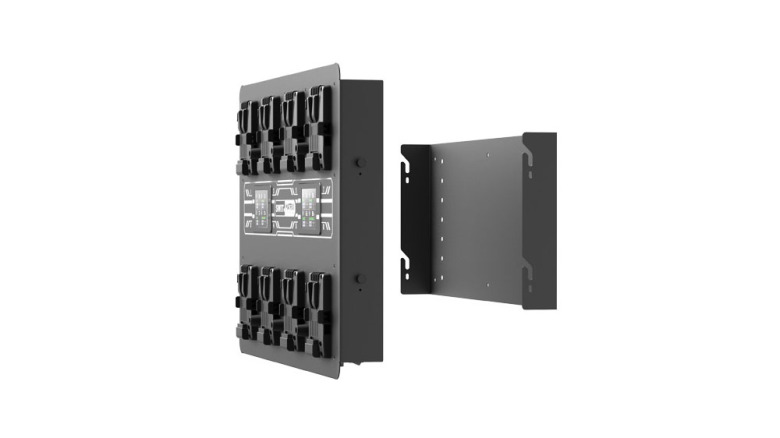

- Wall mounting or 19-inch rack install
Included items
- Included items:
- Install Plate
Specification
- Specification:
Power: Max 900W Input: AC100V-240V 50/60Hz Output: DC 16.8V, 6A 100Wx8 (SWIT 14.4V & +160Wh batteries), DC 33.6V, 3A 100W×8 (SWIT 28.8V & +160Wh batteries), DC 16.8V, 3A 50W×8 (Other batteries) Applicable battery: V-mount battery Dimensions: 630×436×89mm Net weight: Net 10.6kg
