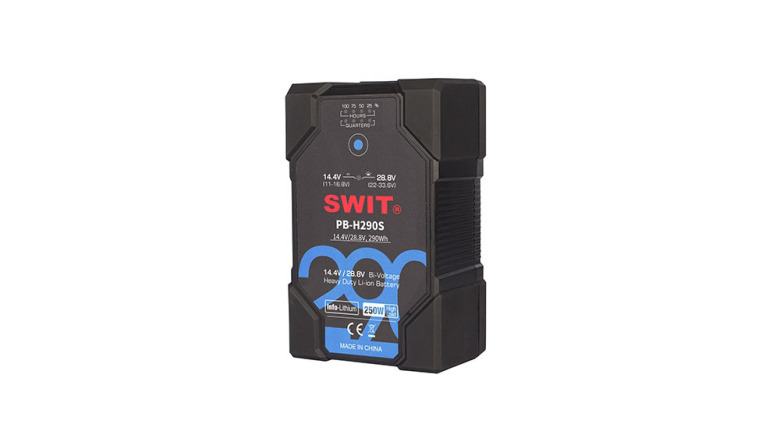

SWIT PB-H290S 290Wh Intelligent 14V/28V Battery V-Mount

Partno: SWT-PB-H290S
Stock status: Ships in 5-8 days
SEK 7512

Description

SWIT PB-H290S 290Wh Intelligent 14V/28V Battery V-Mount

14.4V/28.8V Bi-Voltage
For ALEXA LF/65 and all normal cameras

The great solution to power ARRI Alexa LF/65 high voltage cameras: SWIT Intelligent Bi-voltage Battery, which can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.

Key Features

- 14.4V/28.8V Bi-voltage auto switch
- For ALEXA LF/65 high voltage cameras
- For all normal voltage cameras
- For high voltage cine lights
- Compatible with normal voltage chargers
- 290Wh capacity, at least 250W high load
- 6A fast charging support

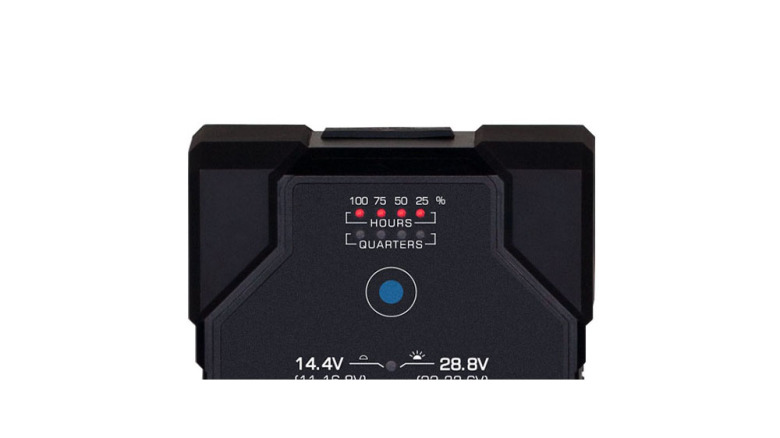

- 8-LED remaining time indicators
- D-tap power output socket

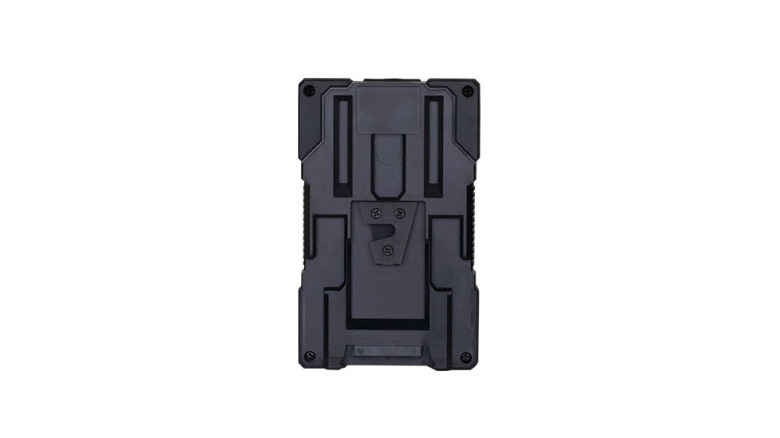

- Normal V-mount connection
- 1.5m drop-off proof, IP54 water proof
- Multiple circuit protections

Included items

  • Included items:
    - PB-H290S 290Wh Intelligent Bi-voltage Battery Pack

Specification

  • Specification:
    Nominal Voltage:   14.4V or 28.8V auto switching
    Capacity:   290Wh
    Max output power (14.4V)
    Total:   250W
    Pins:   250W / 20A
    D-tap:   120W / 10A
    Max output power (28.8V)
    Total:   250W
    Pins:   250W / 10A
    D-tap (16V):   50W / 3A
    Max charging current:   16.8V / 10A
    Mount Type:   V-mount
    Charging Temperature:   0 ~ 40degr.C
    Discharging Temperature:   -20degr.C ~ 50degr.C?Capacity and Max Load may decrease when operating below 0degr.?
    Dimension:   162×101×69mm
    Net weight:   1578g
