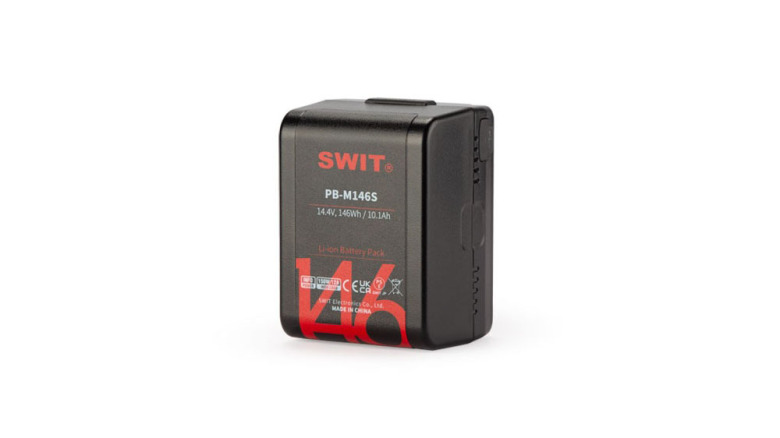

SWIT PB-M146S 146Wh Pocket High load Battery, V-Mount

Swit
Partno: SWT-PB-M146S
Stock status: Ships in 5-8 days
SEK 3296

Description

SWIT PB-M146S 146Wh Pocket High load Battery, V-Mount

Pocket V-mount battery
As a new member of PB-M series Pocket V-mount batteries, the PB-M146S provides 146Wh larger capacity to extend run time, and still tiny size for convenient carrying.

Key Features

- Tiny V-mount battery, Pocket fit
- 146Wh/10.1Ah fly-friendly capacity
- 150W/12A constant high load
- 1x D-tap output & charging input
- 1x USB 5V/2A output
- 5-step LED power indicator
- Power info for both SONY & RED
- Wire-Free internal technic
- Multiple circuit protections

Included items

  • Included items:
    - PB-M146S 146Wh Pocket V-mount Battery Pack

Specification

  • Specification:
    Battery plate:   V-mount
    Nominal voltage:   14.4V
    Capacity:   146Wh, 10.1Ah
    Power output
    In total:   150W
    Electrodes:   150W,12A
    USB:10W, 5V/2A
    D-tap:   100W / 10A
    Charging input:   16.8V 3A (Max)
    Charging Temperature:   0-40degr.C
    Discharging Temperature:   -20degr.C-50degr.C?Capacity and Max Load may decrease when operating below 0degr.?
    Dimension:   100×74×63.7mm
    Net weight:   Net 0.72kg; With package0.75kg
