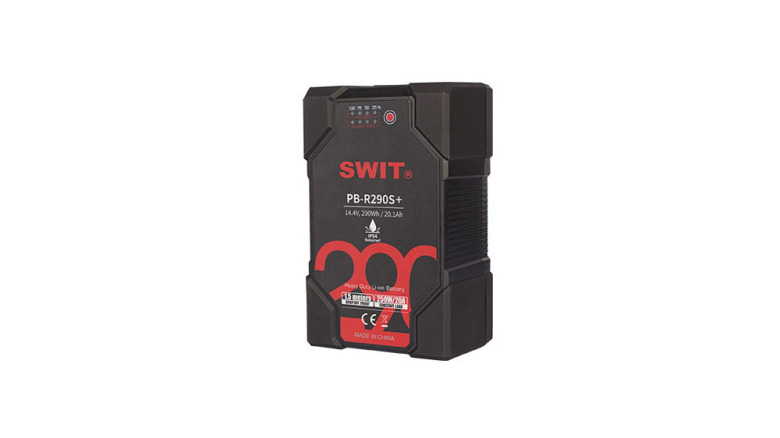

SWIT PB-R290S+ 290Wh IP54 Heavy-duty Battery, V-Mount

Swit
Partno: SWT-PB-R290S+
Stock status: Ships in 5-8 days
SEK 7211

Description

SWIT PB-R290S+ 290Wh IP54 Heavy-duty Battery, V-Mount

Heavy Duty Battery
High load & IP54 waterproof

PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications.

Key Features

- IP54 water/dust proof
- Strong 1.5m drop off proof
- 14.4V, 290Wh capacity
- 250W, 20A constant high load
- 6A fast charging support
- 8-LED digital power indicators
- SONY/RED viewfinder power info display

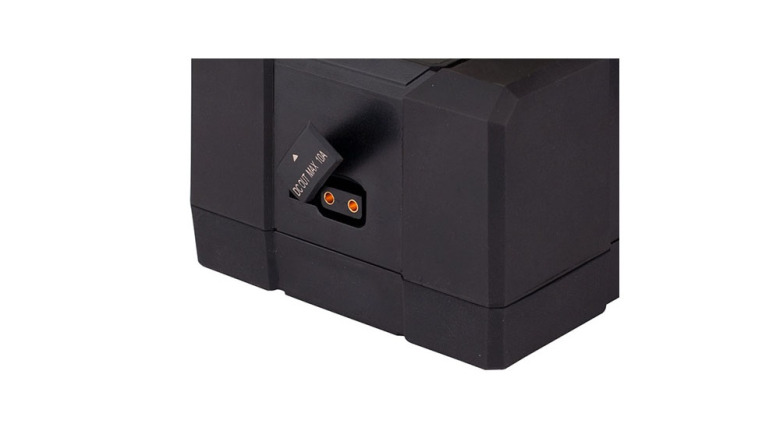

- D-tap power output socket

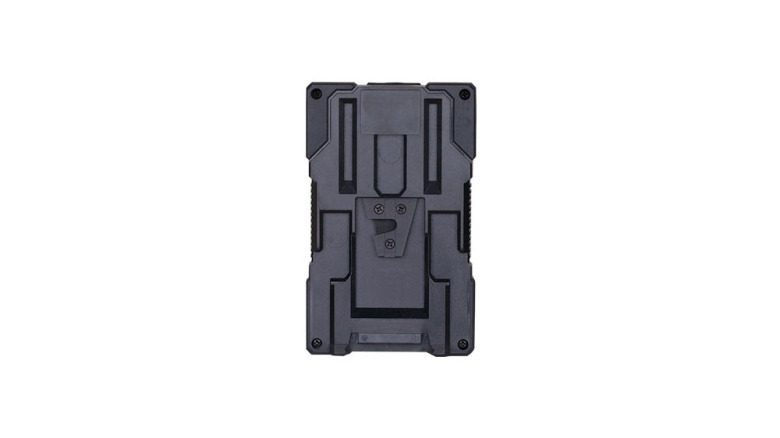

- V-mount connection
- Multiple circuit protections

Included items

  • Included items:
    - PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack

Specification

  • Specification:
    Nominal Voltage:   14.4V
    Capacity:   290Wh/20.1Ah
    Constant load:   250W / 20A
    Max charging current:   6A fast charging
    IP class:   IP54
    Mount Type:   V-mount
    Charging Temperature:   0-40degr.C
    Discharging Temperature:   -20degr.C-50degr.C (Capacity and Max Load may decrease when operating below 0degr.)
    Net weight:   Net 1.51kg; With package1.65kg
    Dimensions:   162×101×69mm
