Description

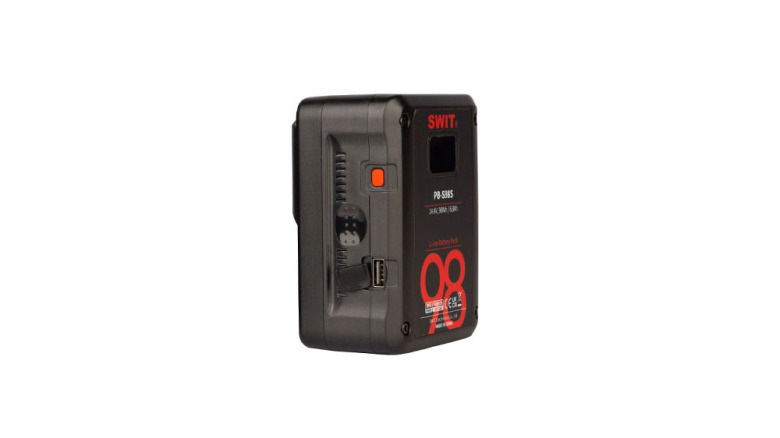

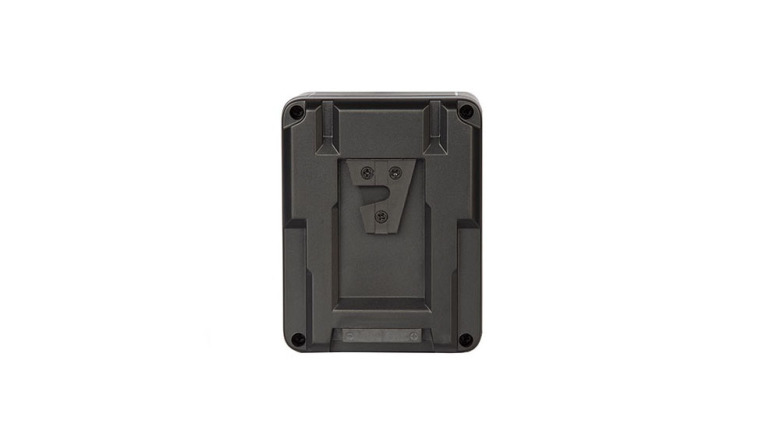

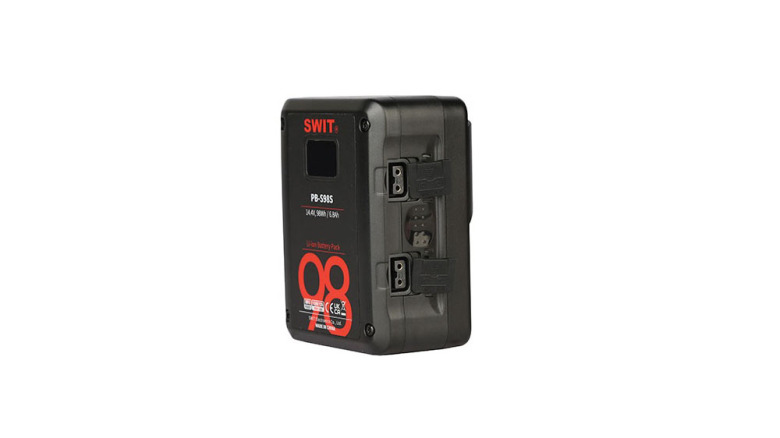

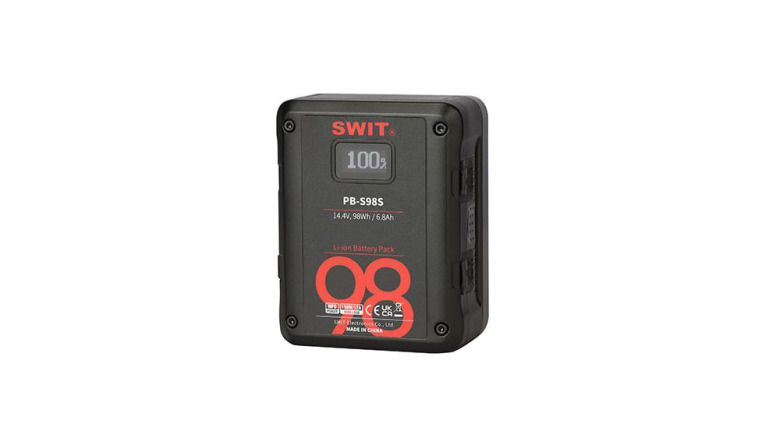

SWIT PB-S98S 98Wh Multi-Sockets Digital Battery, V-Mount
Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
Key Features
- Square shape design for Cine-cameras
- Max 150W, 12A load
- 2× D-tap output sockets (120W/10A in total)
- 1× USB 5V/2A power output sockets
- OLED display accurate remaining run time
- Display power info in both SONY & RED
- Multiple circuit protections
Included items
- Included items:
- PB-S98S 98Wh Multi-sockets Digital Battery Pack
Specification
- Specification:
Battery plate: V-mount Nominal voltage: 14.4V Capacity: 98Wh,6.8Ah Max output In total: 150W Electrodes: 150W, 12A USB:10W, 5V/2A D-tap: 120W / 10A Dimension: 121×95×59mm Charging Temperature: 0-40degr.C Discharging Temperature: -20degr.C-50degr.C(Capacity and Max Load may decrease when operating below 0degr.) Net weight: Net 0.809kg; With package0.85kg Max charging current: 3A D-TAP socket number: 2 USB socket number: 1
