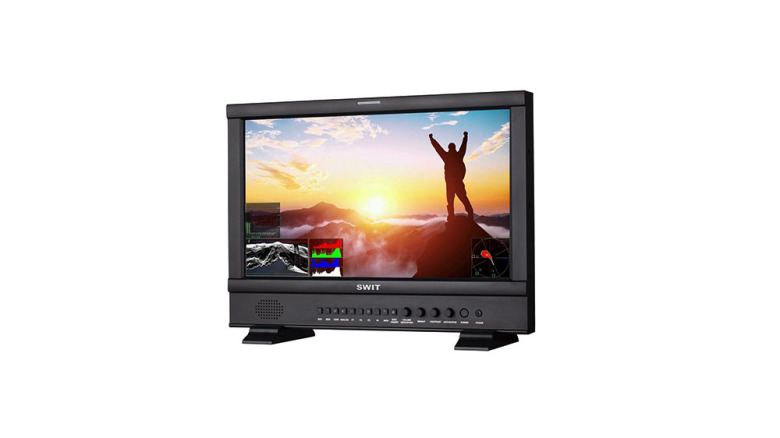

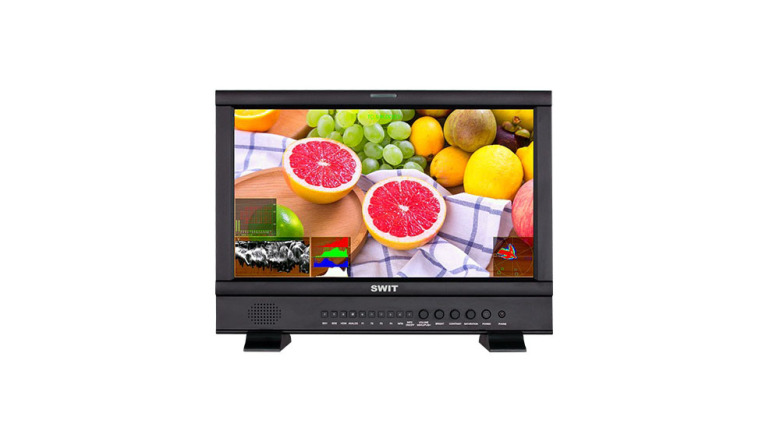

SWIT S-1173FS 17.3in Full HD Waveform Studio LCD Monitor

Swit
Partno: SWT-S-1173FS
Stock status: Ships in 5-8 days
SEK 15041

Description

SWIT S-1173FS 17.3in Full HD Waveform Studio LCD Monitor

S-1173F adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160degr. / Vertical: 160degr..

Key Features

- 17.3-inch LCD Panel, 1920×1080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
- V-mount / Gold mount battery plate optional
- 19inch Rack install, 7U height
- USB firmware upgrade

Included items

  • Included items:
    - 19-inch rack bracket
    - Desktop feet
    - AC-DC Adaptor
    - S-7004S (V-mount) / S-7004A (Gold mount) plate

Specification

  • Specification:
    Size:   17.3inches
    Display area:   381.89×214.8mm
    Resolution:   1920×1080
    Aspect ratio:   16:9 (4:3 adjustable)
    Brightness:   300cd/m2
    Contrast:   700:1
    Color depth:   16.77 million color
    Viewing angle:   160degr.(H)?160degr.(V)

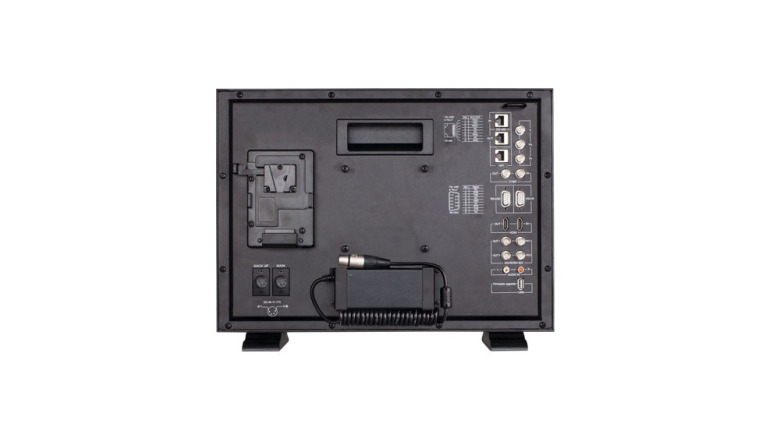

    Input
    BNC ×2:   2k/3G/HD/SD-SDI input×2
    BNC ×1:   CVBS input
    BNC ×3:   Y/Pb/Pr input
    HDMI ×1:   HDMI input
    RS485 ×2:   GPI×1, UMD×1
    RS232C ×1:   UMD
    VGA ×1:   VGA input
    RCA ×2:   L/R audio input
    USB ×1:   USB input (firmware upgrade)
    Output
    BNC ×2:   2K/3G/HD/SD-SDI Loop output
    BNC ×1:   CVBS Loop output
    HDMI ×1:   HDMI Loop output
    RS485 ×1:   UMD×1
    3.5mm ×1:   SDI/HDMI embedded audio output, analog audio output
    Video Format
    CVBS:   NTSC?PAL
    SDI:   2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 1080p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080psf (30 / 29.97 / 25 / 24 / 23.98), 720p (60 / 59.94 / 50), 480i (59.94), 576i (50)
    HDMI:   480i/ 576i / 480p / 576p, 1080i (60 / 59.94 / 50), 720p (60 / 59.94 / 50), 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    Y/Pb/Pr:   480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)
    VGA:   640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768 / 1280×960 / 1280×1024 / 1600×1200
    General
    Input voltage:   AC 100V-240V DC 11V-17V
    Power consumption:   ?32W
    Working temperature:   0degr.C?+40degr.C
    Working humidity:   10%?90%
    Storage temperature:   -15degr.C?+60degr.C
    Storage humidity:   10%?90%
    Dimensions:   430×310×73mm
    Net weight (main body):   Net 4.65kg; With package 7.45kg
