SWIT S-1243FS 23.8in Full HD Waveform Studio LCD Monitor

Swit
Partno: SWT-S-1243FS
Stock status: Ships in 5-8 days
SEK 18053

Description

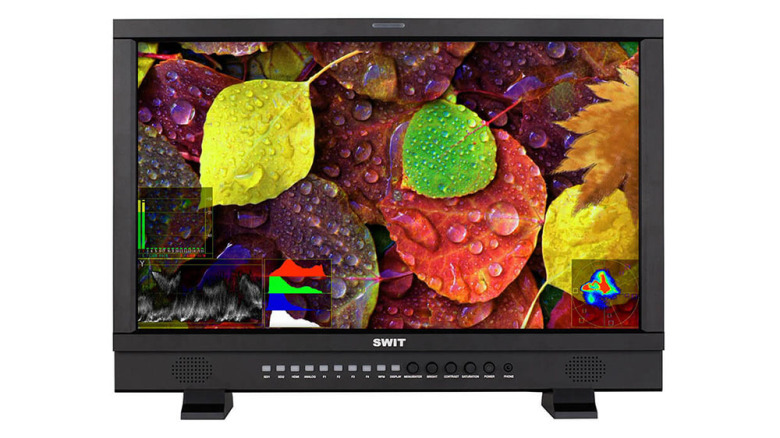

SWIT S-1243FS 23.8in Full HD Waveform Studio LCD Monitor

S-1243F adopts a 23.8 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast for accurate color repro- duction. The viewing angle is Horizontal: 178degr. / Vertical: 178degr..

Key Features

- 23.8-inch LCD Panel, 1920×1080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay

Included items

  • Included items:
    - Desktop feet
    - AC-DC Adaptor
    - S-7004S (V-mount) or S-7004A (Gold mount) plate

Specification

  • Specification:
    Size:   23.8inches
    Display area:   527.04×296.46mm
    Resolution:   1920×1080
    Aspect ratio:   16:9 (4:3 )
    Brightness:   250cd/m2
    Contrast:   1000:1
    Color depth:   16.77 million colors
    Viewing angle:   178degr.(H) / 178degr.(V)

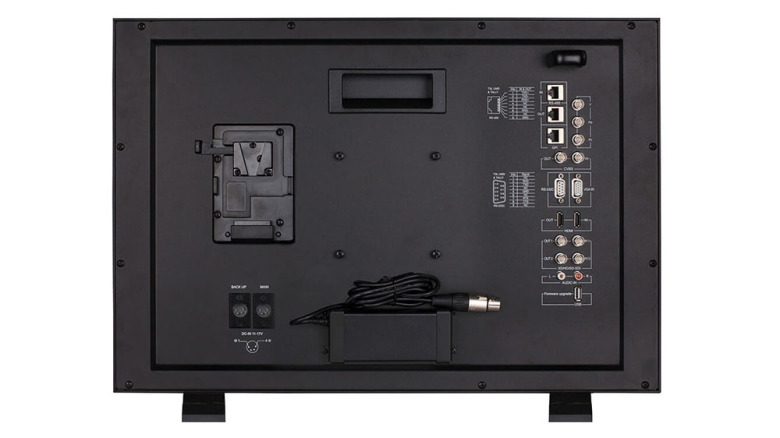

    Input
    BNC ×2:   2k/3G/HD/SD-SDI input×2
    BNC ×1:   CVBS input
    BNC ×3:   Y/Pb/Pr input
    HDMI ×1:   HDMI input
    RS485 ×2:   GPI×1, UMD×1
    RS232C ×1:   UMD
    VGA ×1:   VGA input
    RCA ×2:   L/R audio input
    USB ×1:   USB input (firmware upgrade)
    Output
    BNC ×2:   2K/3G/HD/SD-SDI Loop output
    BNC ×1:   CVBS Loop output
    HDMI ×1:   HDMI Loop output
    RS485 ×1:   UMD×1
    3.5mm ×1:   SDI/HDMI embedded audio output, analog audio output
    Video Format
    CVBS:   NTSC / PAL
    SDI:   2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 1080p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080psf (30 / 29.97 / 25 / 24 / 23.98), 720p (60 / 59.94 / 50), 480i (59.94), 576i (50)
    HDMI:   480i/ 576i / 480p / 576p, 1080i (60 / 59.94 / 50), 720p (60 / 59.94 / 50), 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    Y/Pb/Pr:   480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)
    VGA:   640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768 / 1280×960 / 1280×1024 / 1600×1200
    General
    Input voltage:   AC 100V-240V DC 11V-17V
    Power consumption:   ?36W
    Working temperature:   0degr.C?+40degr.C
    Working humidity:   10%?90%
    Storage temperature:   -15degr.C?+60degr.C
    Storage humidity:   10%?90%
    Dimensions:   576×387×87mm
    Net weight (main body):   Net 7.2kg; With package 10.3kg
