SWIT S-4040 4-Battery power station box - 48V+24V output
Long-lasting Power Solution for High Draw Cine Gears

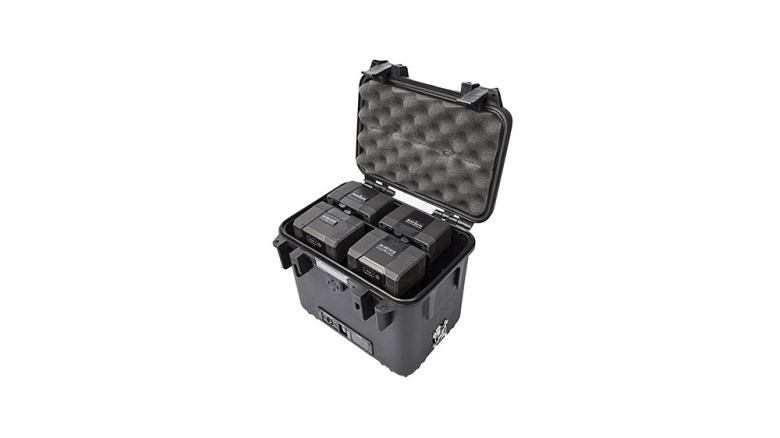

S-4040 power station box can install 4 pieces of V-mount batteries and output regulated 24V or 48V DC for high power cine cameras or lights, with higher draw and longer power supply time comparing to single Li-ion battery.
Key Features
- PP+ Fiber glass case, strong and durable
- Install 4 x V-mount batteries
- 4-pin regulated 24V 10A DC output
- 3-pin regulated 48V 10A DC output
- LED voltage display and warning
- Charging without take out batteries
- Intelligent protective circuit design
Included items
- Included items:

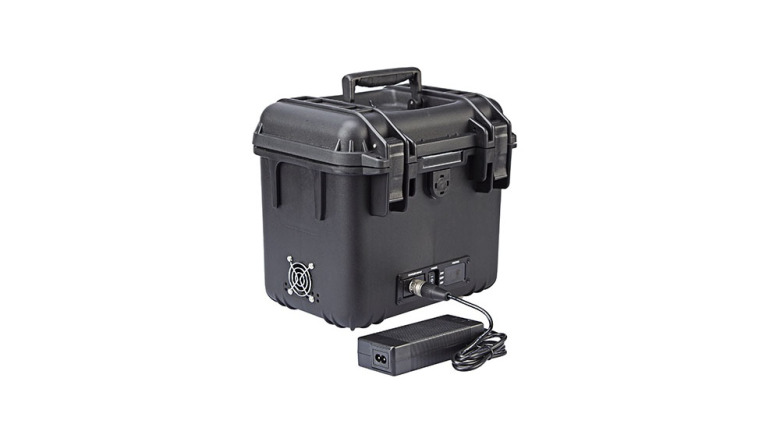

- 4-pin XLR 5A Charger
Specification
- Specification:
Input: DC 16.8V 5A (Charging) Output: DC 48V 10A, 480W or DC 24V 10A, 240W Working temperature: -20degr.C?+40degr.C Working humidity: 10%?90% Storage temperature: -15???60? Dimensions: 290mm x 221mm x 278mm Net weight: Net 3.1kg; With package 3.85kg
