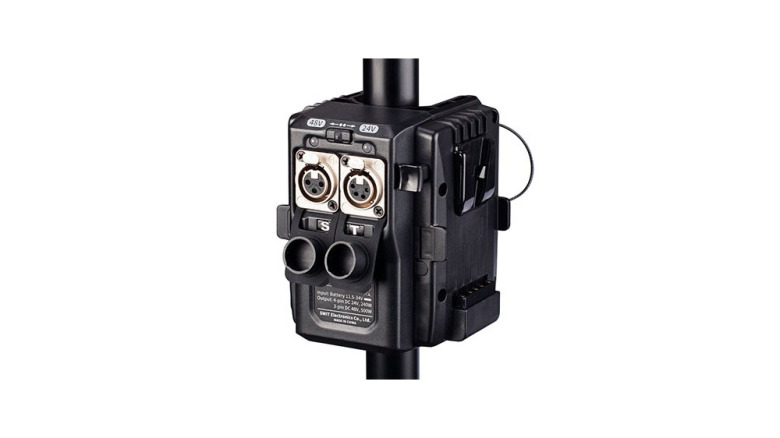

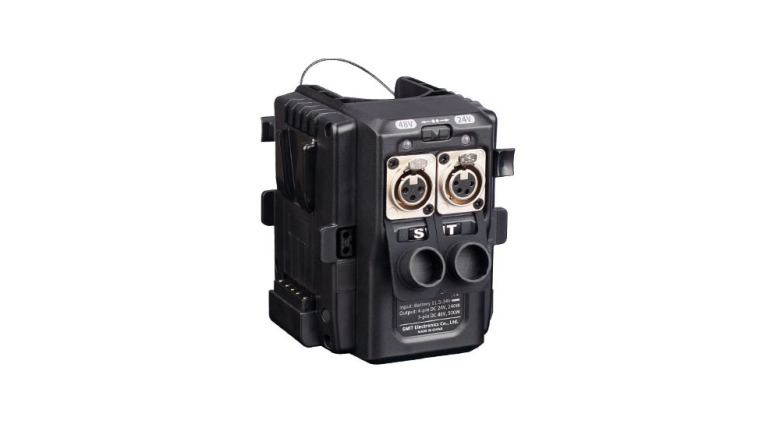

SWIT TD-R210S 24V/48V Light Stand Power Adaptor, Max 500W

Swit
Partno: SWT-TD-R210S
Stock status: Ships in 5-8 days
SEK 5504

Description

SWIT TD-R210S 24V/48V Light Stand Power Adaptor, Max 500W

For High Power Cine Lights
By 2 Batteries, Regulated 24V/48V out

The high power lights usually use 24V or even 48V high voltage input. And TD-R210S is a solution to drive these high power lights with only 2x V-mount batteries, outputs regulated 24V or 48V, high load, ortable and easily to be mounted on C-stand.

Key Features

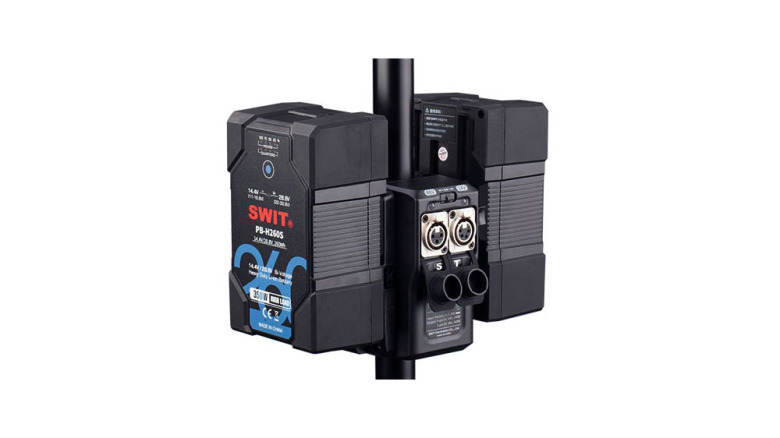

- Install 2x V-mount batteries
- 4pin Regulated 24V out, Max 240W
- 3pin Regulated 48V out, Max 500W
- 48V 500W by SWIT PB-H or HB- series batteries
- For Skypanel S60/S120 100% output
- Neutrik XLR connectors

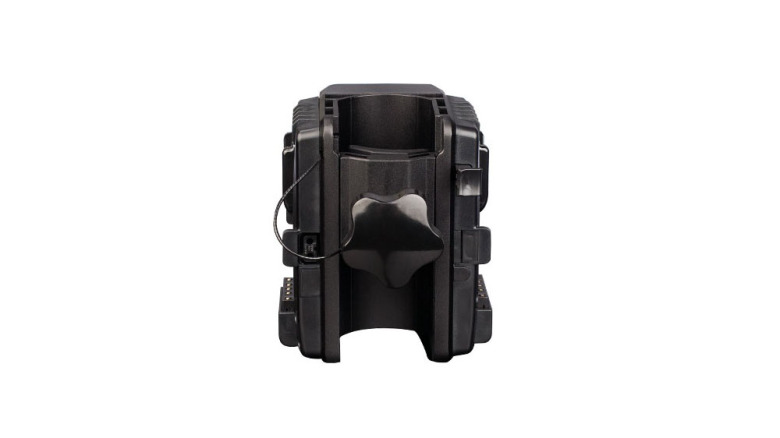

- 25-45mm light stand install

Included items

  • Included items:
    - TD-R210S

Specification

  • Specification:
    Model:   TD-R210S
    DC output:   3-pin XLRx1; 4-pin XLR x1
    Battery type:   2x V-mount batteries
    Max Load (by 2x 28.8V batteries):   3-pin XLR 48V/10.4A, 500W - 4-pin XLR 24V/10A, 240W
    Max Load (by 2x 14.4V batteries):   3-pin XLR 48V/5A, 240W - 4-pin XLR 24V/10A, 240W
    Working temp:   -20degr.C - 40degr.C
    Dimensions:   127×104×93mm
    Weight:   Net 0.9kg; With package 1.2kg
