V-Mount Adaptor for Blackmagic Cinema Camera - IDX

HOME » POWER » Power Accessories » Battery Plates » V-Mount Adaptor for Blackmagic Cinema Camera - IDX

Description

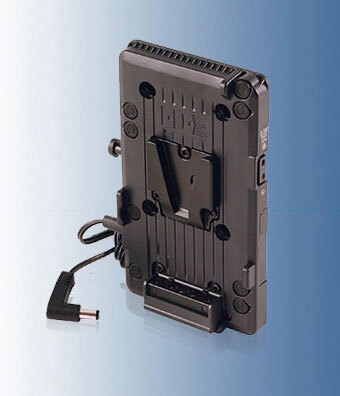

The ET-PV2BM is designed to allow ENDURA batteries to power the Blackmagic Cinema Camera. Based on the popular IDX V-Plate chassis with integral DC cable, it can be mounted on the A-CP(A) Universal Mount Cheese Plate for use on rig systems. The ET-PV2BM also features 1 x D-Tap output (battery voltage) to power accessories.

Dimensions:
Weight:
Output voltage:

Cable length:

82.5(w) x 142(h) x 12(d) mm
210g approx.
Cable: 12~17V
D-Tap: 12~17V
1m approx.

Specification

Included items

Documents

Accessories

FAQ

Description

The ET-PV2BM is designed to allow ENDURA batteries to power the Blackmagic Cinema Camera. Based on the popular IDX V-Plate chassis with integral DC cable, it can be mounted on the A-CP(A) Universal Mount Cheese Plate for use on rig systems. The ET-PV2BM also features 1 x D-Tap output (battery voltage) to power accessories.

Dimensions:
Weight:
Output voltage:

Cable length:

82.5(w) x 142(h) x 12(d) mm
210g approx.
Cable: 12~17V
D-Tap: 12~17V
1m approx.
