WC Pro V-Mount (RED DSMC1, DSMC2)

WC Pro V-Mount (RED DSMC1, DSMC2)

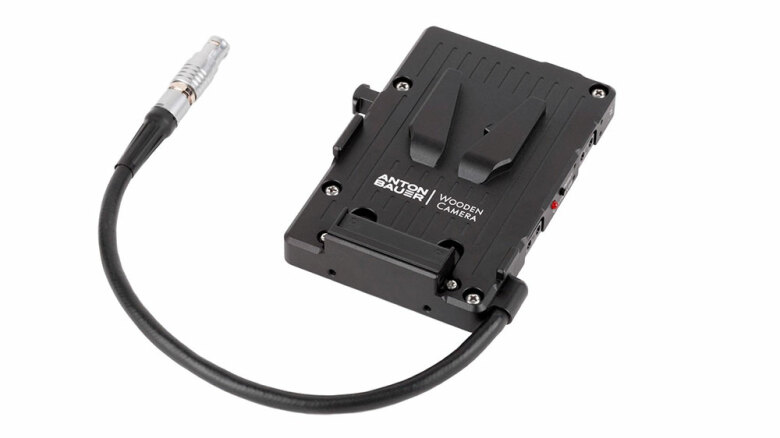

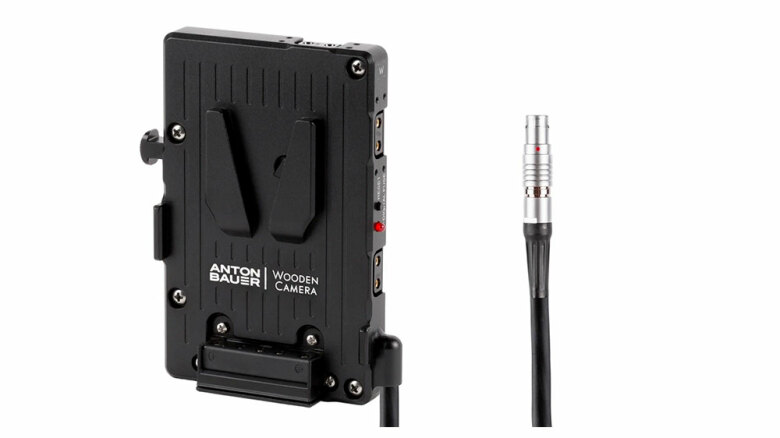

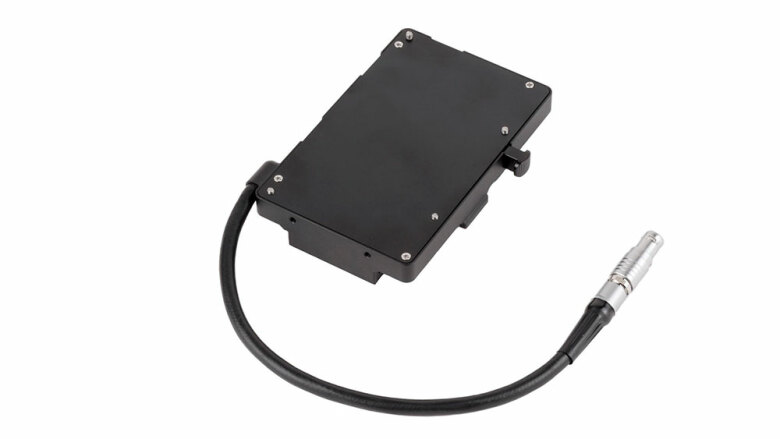

WC Pro V-Mount (RED DSMC1/DSMC2) is a metal power plate, created in partnership with Anton Bauer, and has a rugged aluminum body for durability and secure battery mounting and a RED DSMC1/DSMC2 LEMO compatible connector. Features 3x D-Taps for accessory power at battery voltage (12-16V), a digital fuse with reset button, rear cover plate, and captive mounting screws.

Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

8" cable exits the right side of the plate allowing easy insertion into the camera.

Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.

Mounting Options:
To mount the WC Pro V-Mount onto the back of the RED DSMC1/DSMC2 cameras, one of these items is required:
Quick Back V2 - A quick release plate that can attach to the back of the brain or any RED module
For an adjustable mount system attached to rods, use the Battery Slide or Recorder Slide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).
