Description
Wireless Mic Set Lavalier XSW-D XLR Reciever
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an ME2-II lavalier microphone, this elegant solution makes wireless presentations easier than ever before while maintaining a reliable connection.
Features
One touch ease-of-use
2.4 GHz digital transmission for worldwide operation
75 m range (250 ft) in optimal conditions
Up to 5 hours battery life on a single charge
Switch between multiple transmitters linked to one receiver
Mix and match different connector types
Mute from either transmitter or receiver

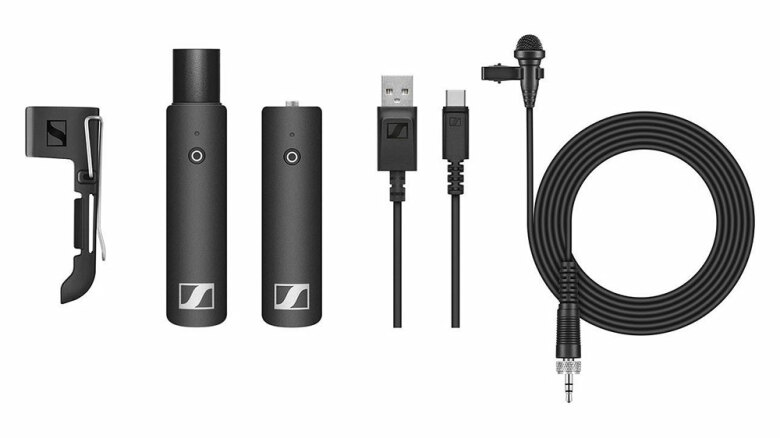

Included items
- Included items:

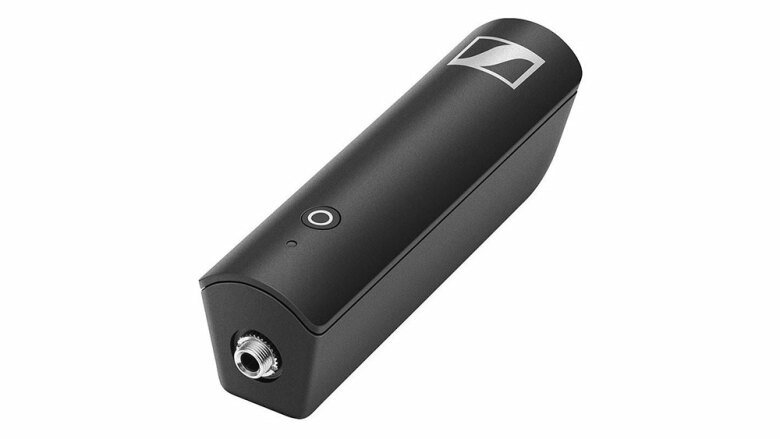

XSW-D 3.5 mm (1/8") transmitter

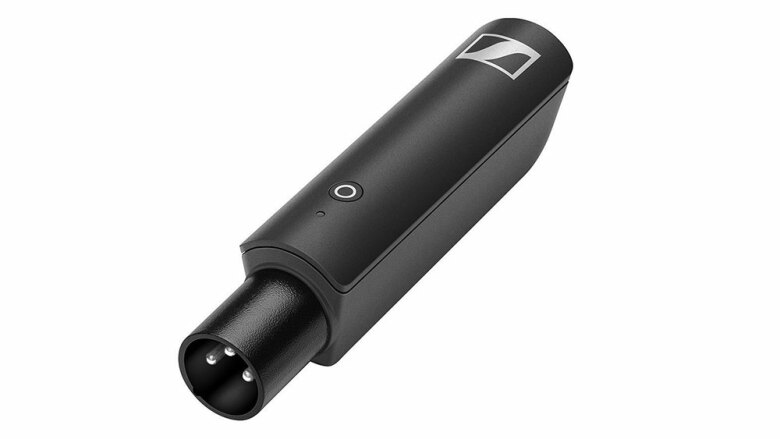

XSW-D male XLR receiver

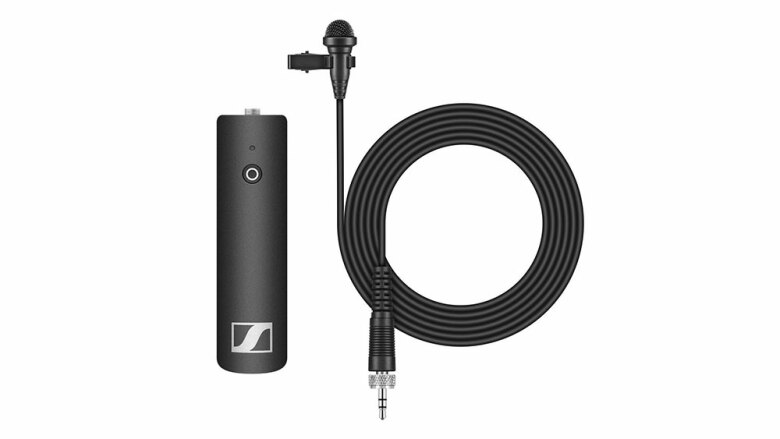

ME2-II clip-on lavalier mic
Belt clip
USB-A to USB-C charging cable
Colored stickers for labeling
Quick guide
Safety guide
Specification
- Specification:
USB C interface for charging:
Input voltage: typ. 5.0 V
Charging temperature: 0 °C - 60 °C
Charging time: typ. 3 h
Battery pack:
Cell type: Li-Ion
Nominal voltage: 3.7 V
Cell capacity: 850 mAh
Operating time: up to 5 h
AF characteristics:
Codec: aptX® Live
Audio frequency response:
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
Audio output: max. 12 dBu
Signal-to-noise ratio: ≥ 106 dB
THD: < 0.1 %
Audio latency: < 4 ms
Product properties:
Dimensions
XSW-D XLR FEMALE TX: approx. 102×24×28 mm
XSW-D MINI JACK TX: approx. 86×24×28 mm
XSW-D INSTRUMENT TX: approx. 122×24×28 mm
XSW-D XLR MALE RX: approx. 109×24×28 mm
XSW-D MINI JACK RX: approx. 86×24×28 mm
XSW-D INSTRUMENT RX: approx. 122×24×28 mm
XSW-D PEDALBOARD RX: approx. 130×82×51 mm
Frequency range: 2,400 - 2,483.5MHz
Transmission power (EIRP): max. 10 mW
Modulation: GFSK with TDMA
Environmental conditions:
Operating temperature: -10 °C to +55 °C
Relative humidity: 95 % (non-condensing)
