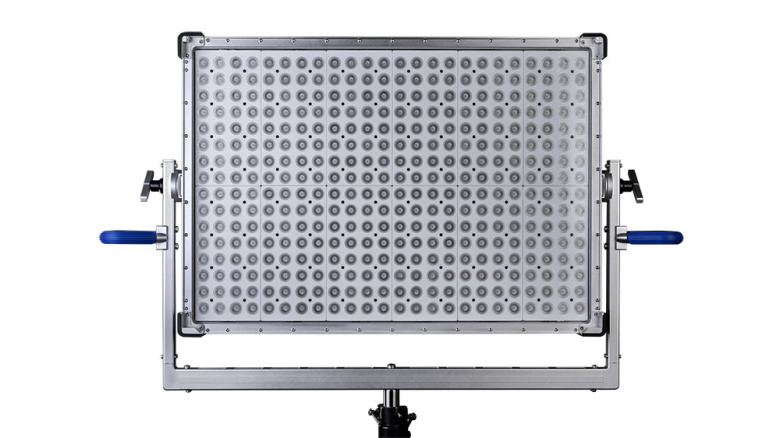

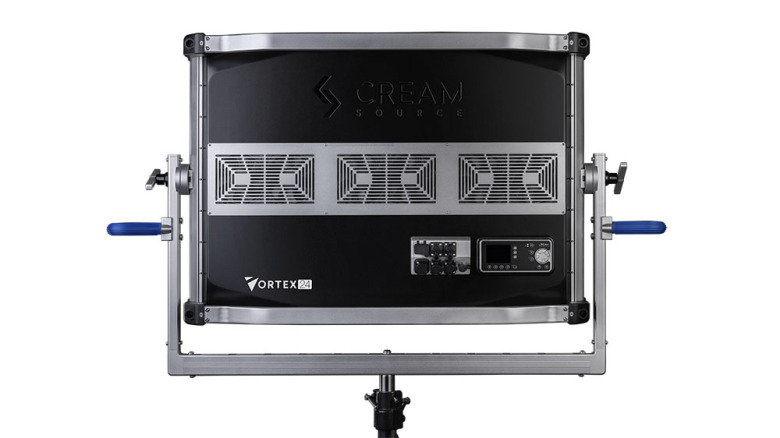

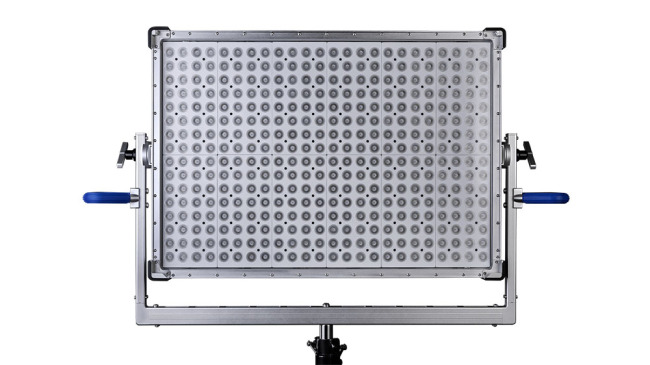

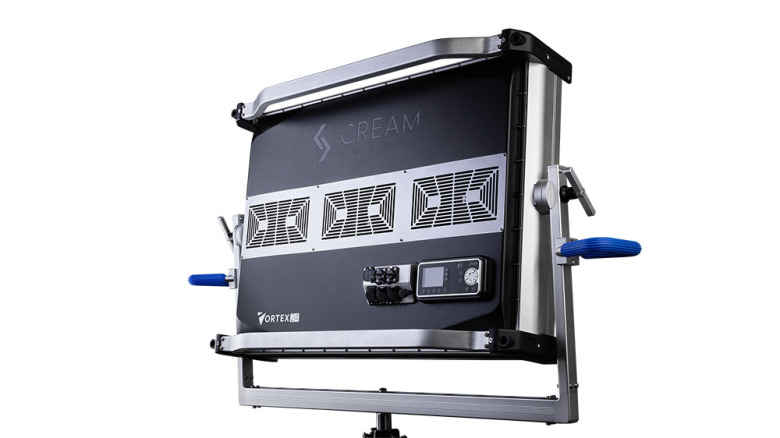

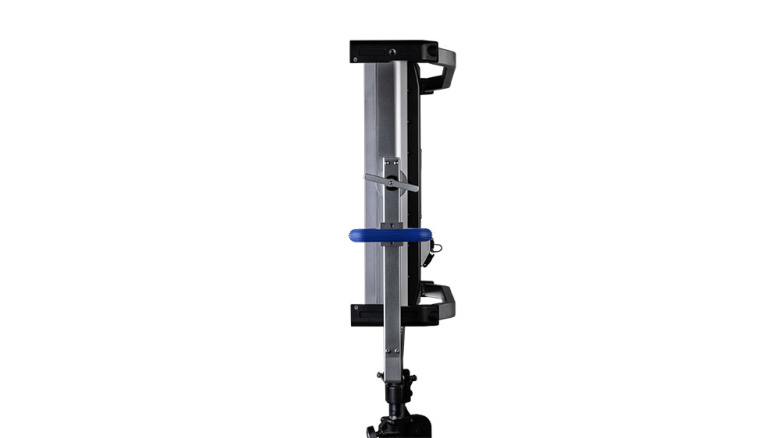

Creamsource Vortex24 Colour w/ Yoke

Partno: CS-K-CSV-24-ESS
Stock status: In Stock
SEK 179606   Excl. VAT (moms)
SEK 224508   Incl. VAT (moms)

Description

Creamsource Vortex24 Colour Including Yoke

Meet the Vortex24, a dynamic 2x3 lighting system tailored for those seeking expansive coverage and powerful output. Building on the foundation of the Vortex8, the Vortex24 amplifies output threefold, while its larger form factor reduces the need for multiple units and simplifies rigging, especially on Elevated Work Platforms (EWP) or Condors.
Designed with 24 directional pixel zones, the Vortex24 allows for complex lighting effects like replicating the dynamics of fire or motion, with seamless dimming across intensities all while maintaining colour accuracy, free from drift.
The Vortex24's efficient design draws 1950W, making it compatible with standard circuits and featuring a 'House Power' mode for 15A circuits. The integration of a built-in ballast means easier storage and transport, allowing for streamlined packing in lighting carts and trucks, optimising your workflow on the go.
Network setup is a breeze with dual Ethernet ports and a Gigabit switch, supporting single-cable runs and efficient daisy-chaining of units. Featuring a front latch filter system for fast changes of diffusers and accessories, the Vortex24 also ships with a medium flat diffuser for instant light softening — no extra purchases necessary.

Included items

  • Included items:
    - Vortex24
    - Yoke
    - Power Cable
    - Flat Diffuser

Specification

  • Specification:
    Power:   1950W
    Light Zones (Pixels):   24
    Material:   Aluminium/Technopolymer
    Light Source:   RRGBBW LED
    Colour Range:   CCT 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS
    CRI / TLCI:   Typical 95
    Beam Angle:   20degr. (Half Peak Angle)
    Tilt Angle:   360degr.
    Photometrics:   Native 3200K/5600K
       96,350 lx / 8,951 fc @ 1m / 3.3 ft
       48,800 lx / 4,534 fc @ 2m / 6.6 ft
       27,560 lx / 2,560 fc @ 3m / 9.8 ft
       16,990 lx / 1,578 fc @ 4m / 13.1 ft
       11,350 lx / 1,054 fc @ 5m / 16.4 ft
       8,150 lx / 757 fc @ 6m / 19.7 ft
       Diffuser 3200K/5600K
       26,940 lx / 2,503 fc @ 1m / 3.3 ft
       7,960 lx / 740 fc @ 2m / 6.6 ft
       3,730 lx / 347 fc @ 3m / 9.8 ft
       2,120 lx / 197 fc @ 4m / 13.1 ft
       1,410 lx / 131 fc @ 5m / 16.4 ft
       1,010 lx / 94 fc @ 6m / 19.7 ft
    Mounting:   8x3/8" threaded rigging points, 4x LNX sockets
    Yoke:   Removable quick release yoke
    Filter Rails:   2 Front-Mount Filter Rails for Secondary Lenses, Diffusers, Accessories
    User interface:   High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display
    Dimming:   0-100% with High Resolution, Super-Smooth Low End Mode
    High Speed Capability:   Over 5000fps Flicker Free in High Speed Mode
    Synchronization:   Sync Input for Triggering and Syncing to Camera Shutter
    Max Ambient Temperature:   40degr.C / 104degr.F
    Cooling:   Low noise variable speed fans
    Estimated LED Lifespan:   50,000hrs (L70)
    Input (AC):   110-240V AC, 50/60Hz, Max 17.7A. Neutrik powerCON TRUE1 connector
    Input (DC):   N/A
    Protection Class:   IP65
    Weight:   46.5kg / 102.5lb (Excluding yoke), 53.5kg / 117.9lb (Including yoke)
    Dimensions:   971 x 686 x 258 mm / 38.2 x 27 x 10.2 in. (Excluding yoke), 1333 x 971 x 258 mm / 52.5 x 38.2 x 10.2 in. (Including yoke)
    Warranty:   3 years on fixtures (5 years if registered), 12 months on accessories
    Certifications Pending:   CE, UKCA, RCM, CSA, ETL, FCC
    Control:   On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated LumenRadio TimoTwo with BLE, 2x etherCON, USB Type A
