Creamsource Vortex4 Soft 325W Colour w/ Yoke

Creamsource
Partno: CS-K-CSV-4S-ESS
Stock status: Contact for delivery time
SEK 27667

Description

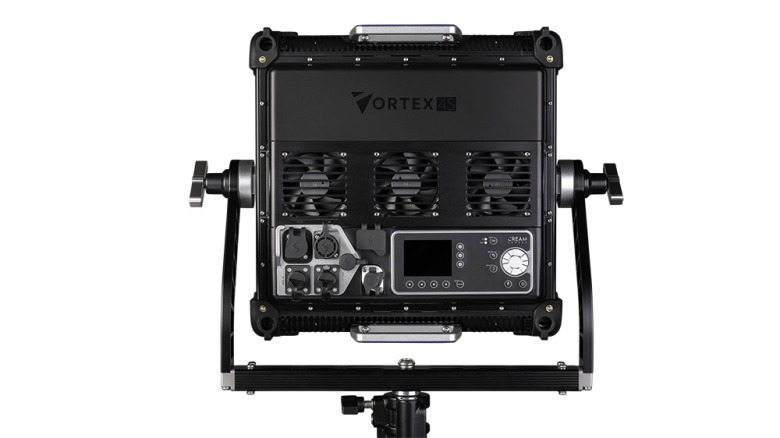

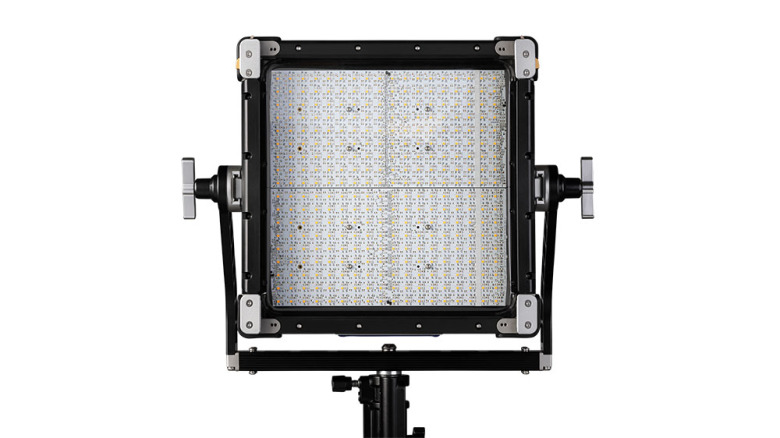

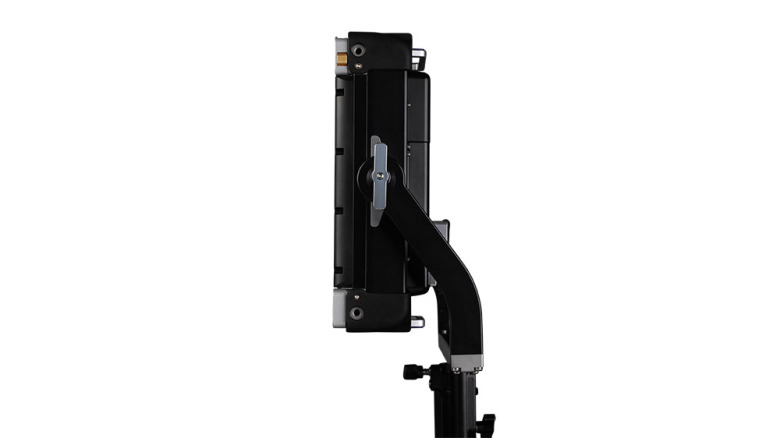

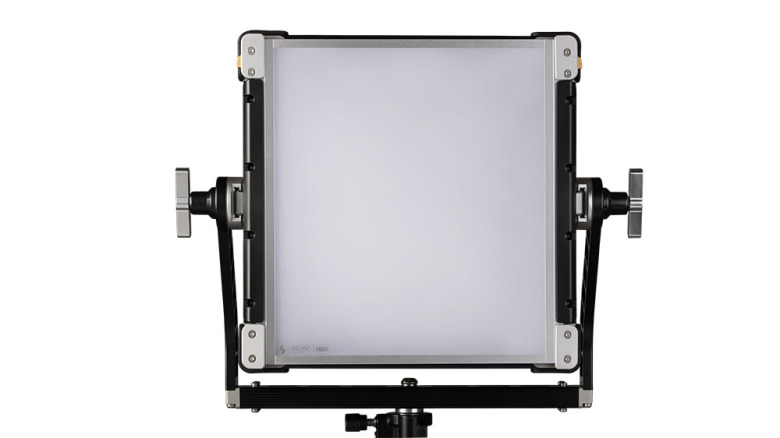

Creamsource Vortex4 Soft 325W Colour Including Yoke

Discover the Vortex4 Soft (V4S), the 1x1 LED lighting system for professionals seeking versatility and quality. As the softer sibling to the Vortex4 hard panel, it's designed with the same build-quality and user-friendly interface, integrating an RRGBBW colour engine,
power supply, and antennas into a sleek, robust design. A 110degr. beam produces 29,100lumens and 1,180lux @ 3m (5600K, Open Face).
This fixture has a CCT range from 2200k to 15000k and four independently controllable zones.
The Vortex4S is a dedicated soft source that blends efficiency and performance with its 325W output, enveloping your space in beautiful full-spectrum soft light. Whether it's for a space-constrained studio setup or the demanding conditions of outdoor broadcasts, the Vortex4 Soft is your go-to lighting solution. Its 48V DC input ensures easy transition to battery power when the action moves off-grid.
Built to endure the rigours of any shooting environment, the Vortex4 Soft is resilient with an IP65 rating that assures dependability even when weather conditions are far from ideal. Powered by CreamOS, it integrates smoothly with other Vortex products, allowing for consistent control and effortless incorporation into existing setups.

Included items

  • Included items:
    - Vortex4S
    - Yoke
    - Power Cable
    - Flat Diffuser

Specification

  • Specification:
    Power:   325W
    Light Zones:   (Pixels) 4
    Material:   Aluminium/Technopolymer
    Light Source:   RRGBBW LED
    Colour Range:   CCT 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS
    CRI / TLCI:   Typical 95
    Beam Angle:   110degr. (Half Peak Angle)
    Tilt Angle:   360degr.
    Photometrics:   Open Face 3200K
       9,960 lx / 925 fc @ 1m / 3.3ft
       2,630 lx / 244 fc @ 2m / 6.6ft
       1,210 lx / 112 fc @ 3m / 9.8ft
       720 lx / 67 fc @ 4m / 13.1ft
       460 lx / 43 fc @ 5m / 16.4 ft
       330 lx / 31 fc @ 6m / 19.7 ft
       Open Face 5600K
       9,770 lx / 908 fc @ 1m / 3.3ft
       2,560 lx / 238 fc @ 2m / 6.6ft
       1,180 lx / 110 fc @ 3m / 9.8ft
       700 lx / 65 fc @ 4m / 13.1ft
       450 lx / 42 fc @ 5m / 16.4 ft
       320 lx / 30 fc @ 6m / 19.7 ft
    Mounting:   8x3/8" threaded rigging points, 4x LNX sockets
    Yoke:   Removable quick release yoke
    Filter Rails:   2 Filter Rails for Secondary Lenses, Diffusers, Accessories
    User interface:   High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display
    Dimming:   0-100% with High Resolution, Super-Smooth Low End Mode
    High Speed Capability:   Over 5000fps Flicker Free in High Speed Mode
    Synchronization:   Sync Input for Triggering and Syncing to Camera Shutter
    Max Ambient Temperature:   40degr.C / 104degr.F
    Cooling:   Low noise variable speed fans
    Estimated LED Lifespan:   50,000hrs (L70)
    Input (AC):   100-240V AC, 50/60Hz, Max 3.3A. Neutrik powerCON TRUE1 connector
    Input (DC):   48V DC, Max 6.9A, Can run at 100% brightness on DC input
    Protection Class:   IP65
    Weight:   8.9kg / 19.6lb (Excluding yoke), 10.7kg / 23.6lb (Including yoke)
    Dimensions:   380 x 380 x 121 mm / 15 x 15 x 4.8 in. (Excluding Yoke), 525 x 570 x 179.25 mm / 20.7 x 22.4 x 7.1 in. (Including Yoke)
    Warranty:   3 years on fixtures (5 years if registered), 12 months on accessories
    Certifications Pending:   CE, UKCA, RCM, CSA, ETL, FCC
    Control:   On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated LumenRadio TimoTwo with BLE, etherCON, USB Type A
